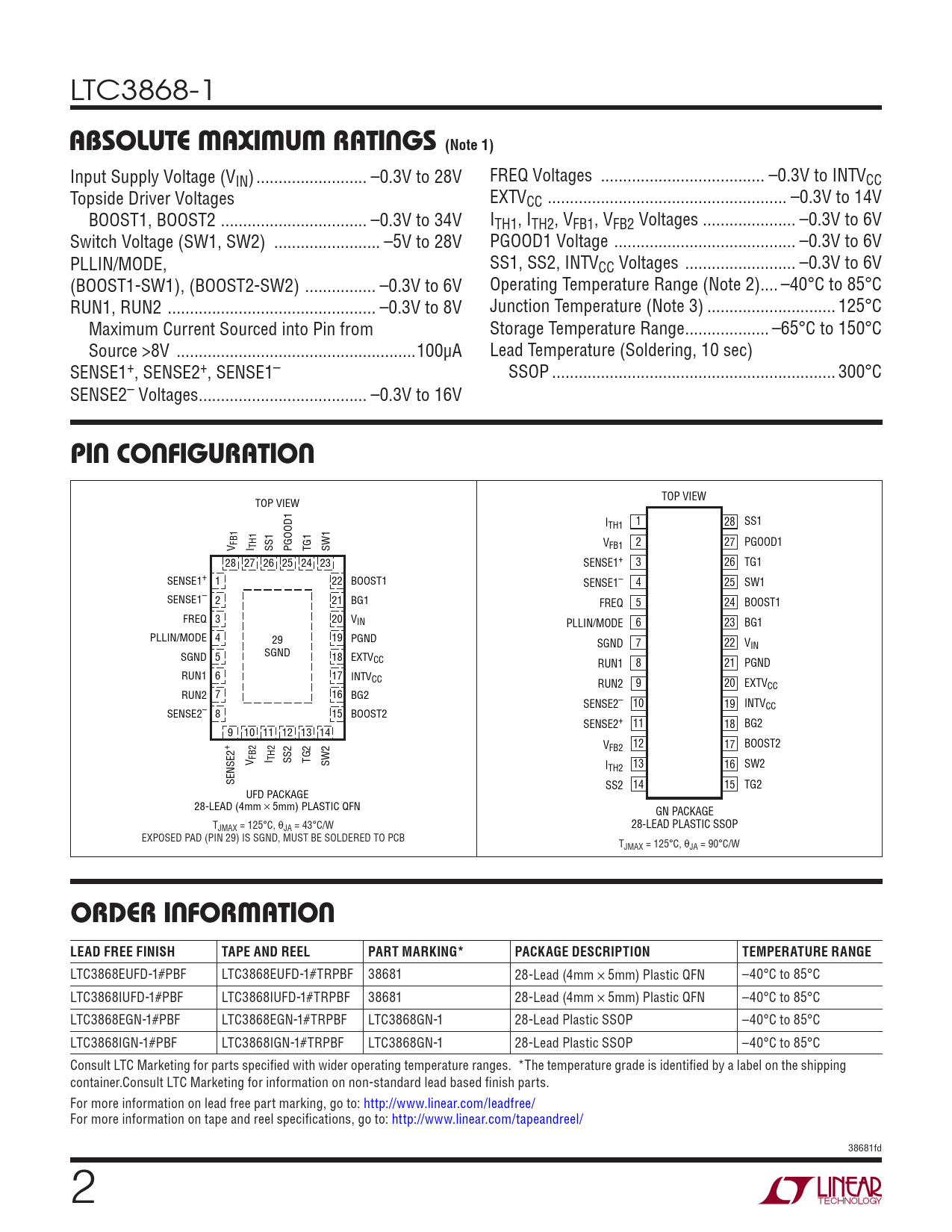

LTC3868-1
ABSOLUTE MAXIMUM RATINGS (Note 1)
Input Supply Voltage (VIN) ... –0.3V to 28V FREQ Voltages ... –0.3V to INTVCC Topside Driver Voltages EXTVCC .. –0.3V to 14V BOOST1, BOOST2 ... –0.3V to 34V ITH1, ITH2, VFB1, VFB2 Voltages ... –0.3V to 6V Switch Voltage (SW1, SW2) .. –5V to 28V PGOOD1 Voltage ... –0.3V to 6V PLLIN/MODE, SS1, SS2, INTVCC Voltages ... –0.3V to 6V (BOOST1-SW1), (BOOST2-SW2) .. –0.3V to 6V Operating Temperature Range (Note 2).. –40°C to 85°C RUN1, RUN2 ... –0.3V to 8V Junction Temperature (Note 3) ... 125°C Maximum Current Sourced into Pin from Storage Temperature Range ... –65°C to 150°C Source >8V ..100μA Lead Temperature (Soldering, 10 sec) SENSE1+, SENSE2+, SENSE1– SSOP .. 300°C SENSE2– Voltages .. –0.3V to 16V
PIN CONFIGURATION
TOP VIEW TOP VIEW I 1 28 TH1 SS1 FB1 V 2 27 PGOOD1 V I TH1 SS1 PGOOD1 TG1 SW1 FB1 28 27 26 25 24 23 SENSE1+ 3 26 TG1 SENSE1+ 1 22 BOOST1 SENSE1– 4 25 SW1 SENSE1– 2 21 BG1 FREQ 5 24 BOOST1 FREQ 3 20 VIN PLLIN/MODE 6 23 BG1 PLLIN/MODE 4 29 19 PGND SGND 7 22 VIN SGND SGND 5 18 EXTVCC RUN1 8 21 PGND RUN1 6 17 INTVCC RUN2 9 20 EXTVCC RUN2 7 16 BG2 SENSE2– 10 19 INTVCC SENSE2– 8 15 BOOST2 SENSE2+ 11 18 BG2 9 10 11 12 13 14 + V 12 17 FB2 BOOST2 FB2V I TH2 SS2 TG2 SW2 I 13 16 TH2 SW2 SENSE2 SS2 14 15 TG2 UFD PACKAGE 28-LEAD (4mm s 5mm) PLASTIC QFN GN PACKAGE TJMAX = 125°C, θJA = 43°C/W 28-LEAD PLASTIC SSOP EXPOSED PAD (PIN 29) IS SGND, MUST BE SOLDERED TO PCB TJMAX = 125°C, θJA = 90°C/W
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC3868EUFD-1#PBF LTC3868EUFD-1#TRPBF 38681 28-Lead (4mm × 5mm) Plastic QFN –40°C to 85°C LTC3868IUFD-1#PBF LTC3868IUFD-1#TRPBF 38681 28-Lead (4mm × 5mm) Plastic QFN –40°C to 85°C LTC3868EGN-1#PBF LTC3868EGN-1#TRPBF LTC3868GN-1 28-Lead Plastic SSOP –40°C to 85°C LTC3868IGN-1#PBF LTC3868IGN-1#TRPBF LTC3868GN-1 28-Lead Plastic SSOP –40°C to 85°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. *The temperature grade is identifi ed by a label on the shipping container.Consult LTC Marketing for information on non-standard lead based fi nish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/ 38681fd 2
