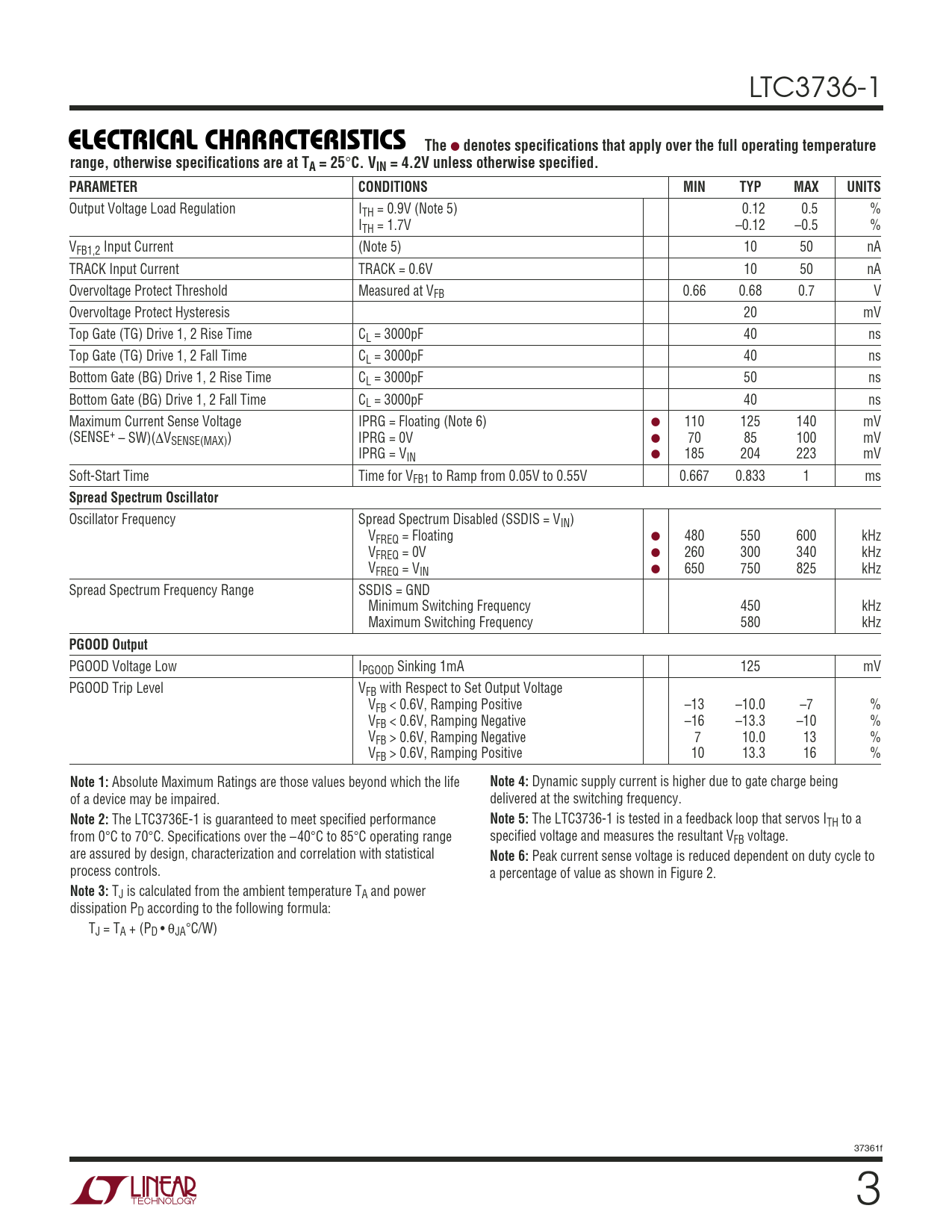

ELECTRICAL CHARACTERISTICS The. denotes specifications that apply over the full operating temperature
Model Line for this Datasheet
Text Version of Document
LTC3736-1
ELECTRICAL CHARACTERISTICS The
●
denotes specifications that apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. VIN = 4.2V unless otherwise specified. PARAMETER CONDITIONS MIN TYP MAX UNITS
Output Voltage Load Regulation ITH = 0.9V (Note 5) 0.12 0.5 % ITH = 1.7V –0.12 –0.5 % VFB1,2 Input Current (Note 5) 10 50 nA TRACK Input Current TRACK = 0.6V 10 50 nA Overvoltage Protect Threshold Measured at VFB 0.66 0.68 0.7 V Overvoltage Protect Hysteresis 20 mV Top Gate (TG) Drive 1, 2 Rise Time CL = 3000pF 40 ns Top Gate (TG) Drive 1, 2 Fall Time CL = 3000pF 40 ns Bottom Gate (BG) Drive 1, 2 Rise Time CL = 3000pF 50 ns Bottom Gate (BG) Drive 1, 2 Fall Time CL = 3000pF 40 ns Maximum Current Sense Voltage IPRG = Floating (Note 6) ● 110 125 140 mV (SENSE+ – SW)(∆VSENSE(MAX)) IPRG = 0V ● 70 85 100 mV IPRG = VIN ● 185 204 223 mV Soft-Start Time Time for VFB1 to Ramp from 0.05V to 0.55V 0.667 0.833 1 ms
Spread Spectrum Oscillator
Oscillator Frequency Spread Spectrum Disabled (SSDIS = VIN) VFREQ = Floating ● 480 550 600 kHz VFREQ = 0V ● 260 300 340 kHz VFREQ = VIN ● 650 750 825 kHz Spread Spectrum Frequency Range SSDIS = GND Minimum Switching Frequency 450 kHz Maximum Switching Frequency 580 kHz
PGOOD Output
PGOOD Voltage Low IPGOOD Sinking 1mA 125 mV PGOOD Trip Level VFB with Respect to Set Output Voltage VFB < 0.6V, Ramping Positive –13 –10.0 –7 % VFB < 0.6V, Ramping Negative –16 –13.3 –10 % VFB > 0.6V, Ramping Negative 7 10.0 13 % VFB > 0.6V, Ramping Positive 10 13.3 16 %
