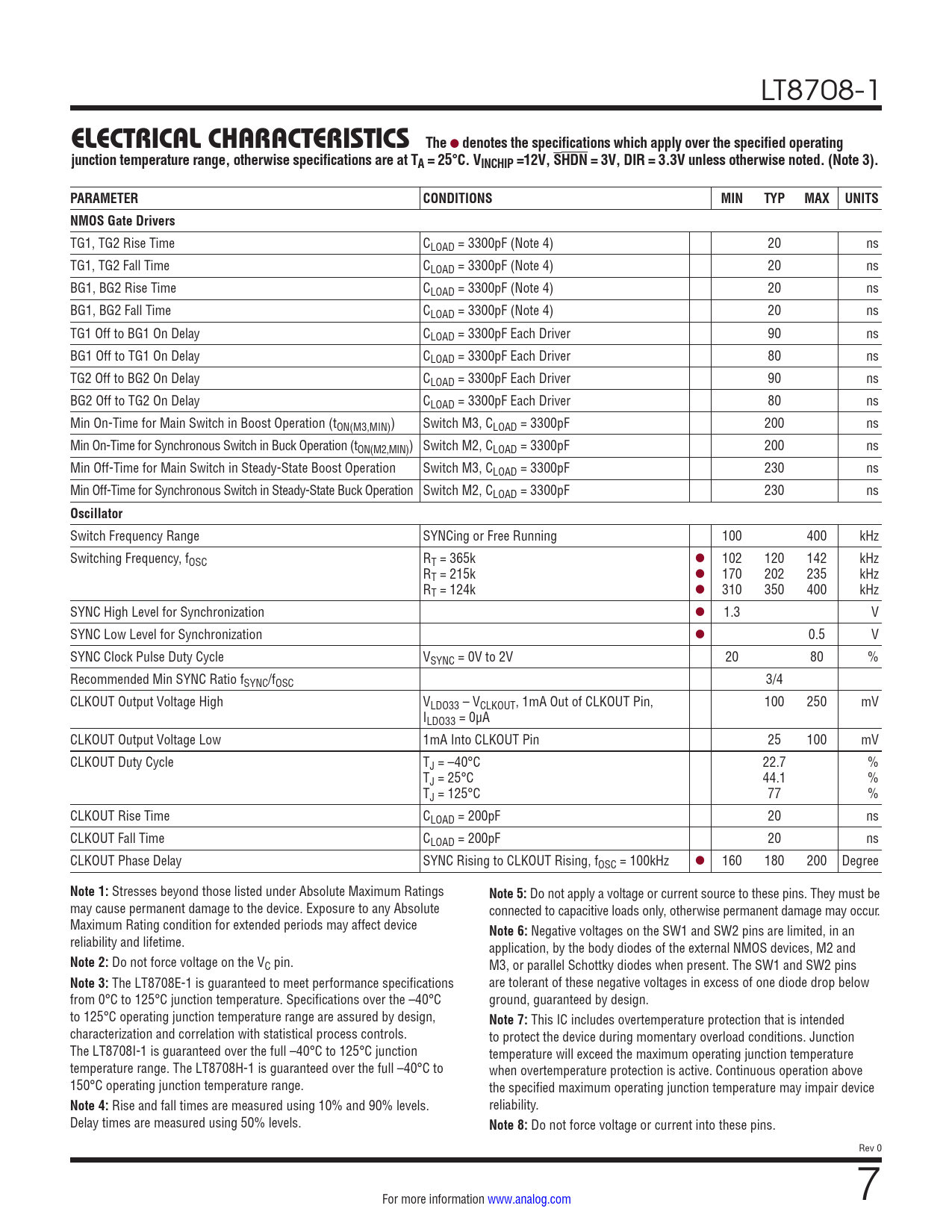

LT8708-1
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the specified operating junction temperature range, otherwise specifications are at TA = 25°C. VINCHIP =12V, SHDN = 3V, DIR = 3.3V unless otherwise noted. (Note 3). PARAMETER CONDITIONS MIN TYP MAX UNITS NMOS Gate Drivers
TG1, TG2 Rise Time CLOAD = 3300pF (Note 4) 20 ns TG1, TG2 Fall Time CLOAD = 3300pF (Note 4) 20 ns BG1, BG2 Rise Time CLOAD = 3300pF (Note 4) 20 ns BG1, BG2 Fall Time CLOAD = 3300pF (Note 4) 20 ns TG1 Off to BG1 On Delay CLOAD = 3300pF Each Driver 90 ns BG1 Off to TG1 On Delay CLOAD = 3300pF Each Driver 80 ns TG2 Off to BG2 On Delay CLOAD = 3300pF Each Driver 90 ns BG2 Off to TG2 On Delay CLOAD = 3300pF Each Driver 80 ns Min On-Time for Main Switch in Boost Operation (tON(M3,MIN)) Switch M3, CLOAD = 3300pF 200 ns Min On-Time for Synchronous Switch in Buck Operation (tON(M2,MIN)) Switch M2, CLOAD = 3300pF 200 ns Min Off-Time for Main Switch in Steady-State Boost Operation Switch M3, CLOAD = 3300pF 230 ns Min Off-Time for Synchronous Switch in Steady-State Buck Operation Switch M2, CLOAD = 3300pF 230 ns
Oscillator
Switch Frequency Range SYNCing or Free Running 100 400 kHz Switching Frequency, fOSC RT = 365k l 102 120 142 kHz RT = 215k l 170 202 235 kHz RT = 124k l 310 350 400 kHz SYNC High Level for Synchronization l 1.3 V SYNC Low Level for Synchronization l 0.5 V SYNC Clock Pulse Duty Cycle VSYNC = 0V to 2V 20 80 % Recommended Min SYNC Ratio fSYNC/fOSC 3/4 CLKOUT Output Voltage High VLDO33 – VCLKOUT, 1mA Out of CLKOUT Pin, 100 250 mV ILDO33 = 0µA CLKOUT Output Voltage Low 1mA Into CLKOUT Pin 25 100 mV CLKOUT Duty Cycle TJ = –40°C 22.7 % TJ = 25°C 44.1 % TJ = 125°C 77 % CLKOUT Rise Time CLOAD = 200pF 20 ns CLKOUT Fall Time CLOAD = 200pF 20 ns CLKOUT Phase Delay SYNC Rising to CLKOUT Rising, fOSC = 100kHz l 160 180 200 Degree
