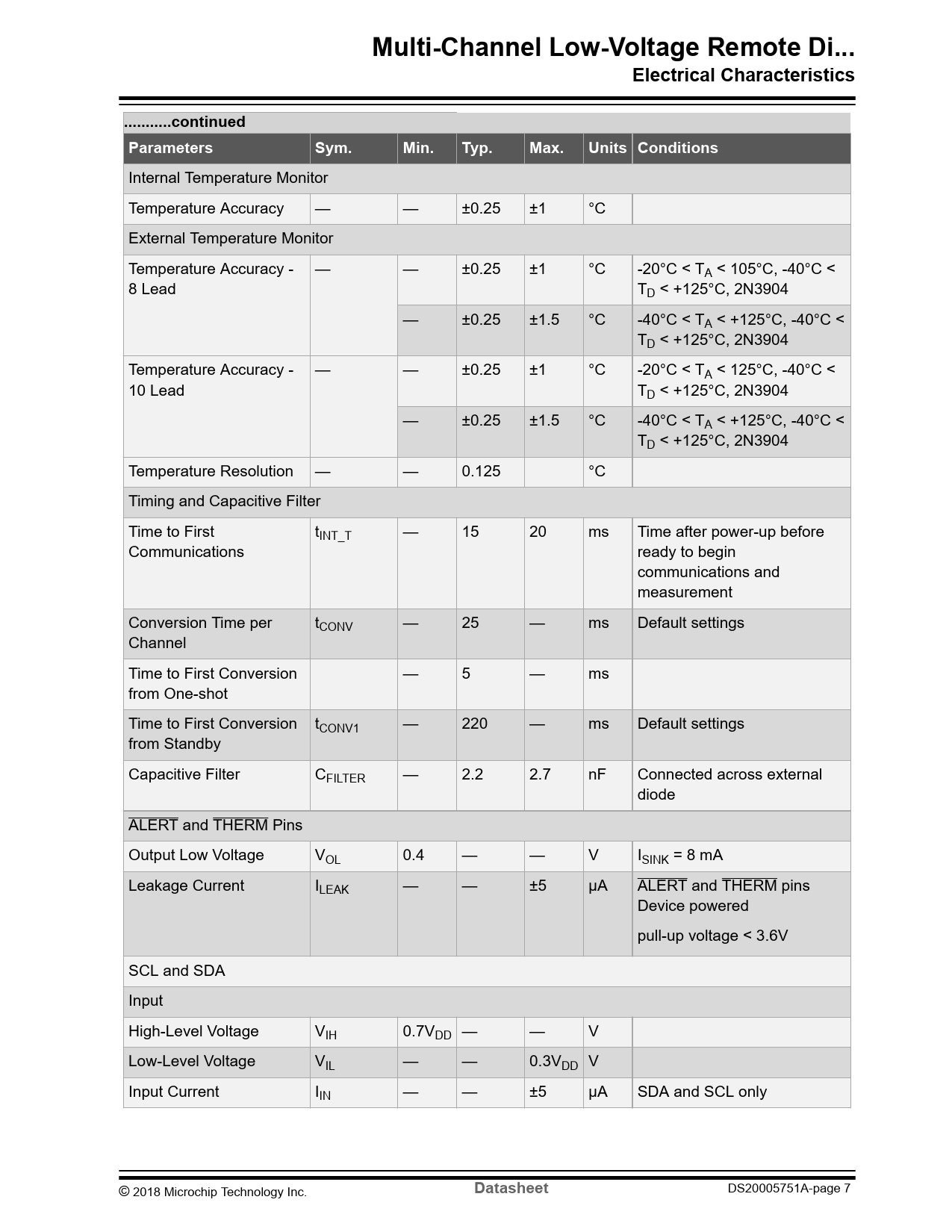

Multi-Channel Low-Voltage Remote Di... Electrical Characteristics. ...continued. Parameters. Sym. Min. Typ. Max. Units Conditions
Model Line for this Datasheet
Text Version of Document
Multi-Channel Low-Voltage Remote Di... Electrical Characteristics ...continued Parameters Sym. Min. Typ. Max. Units Conditions
Internal Temperature Monitor Temperature Accuracy — — ±0.25 ±1 °C External Temperature Monitor Temperature Accuracy - — — ±0.25 ±1 °C -20°C < TA < 105°C, -40°C < 8 Lead TD < +125°C, 2N3904 — ±0.25 ±1.5 °C -40°C < TA < +125°C, -40°C < TD < +125°C, 2N3904 Temperature Accuracy - — — ±0.25 ±1 °C -20°C < TA < 125°C, -40°C < 10 Lead TD < +125°C, 2N3904 — ±0.25 ±1.5 °C -40°C < TA < +125°C, -40°C < TD < +125°C, 2N3904 Temperature Resolution — — 0.125 °C Timing and Capacitive Filter Time to First tINT_T — 15 20 ms Time after power-up before Communications ready to begin communications and measurement Conversion Time per tCONV — 25 — ms Default settings Channel Time to First Conversion — 5 — ms from One-shot Time to First Conversion tCONV1 — 220 — ms Default settings from Standby Capacitive Filter CFILTER — 2.2 2.7 nF Connected across external diode ALERT and THERM Pins Output Low Voltage VOL 0.4 — — V ISINK = 8 mA Leakage Current ILEAK — — ±5 µA ALERT and THERM pins Device powered pull-up voltage < 3.6V SCL and SDA Input High-Level Voltage VIH 0.7VDD — — V Low-Level Voltage VIL — — 0.3VDD V Input Current IIN — — ±5 µA SDA and SCL only © 2018 Microchip Technology Inc.
