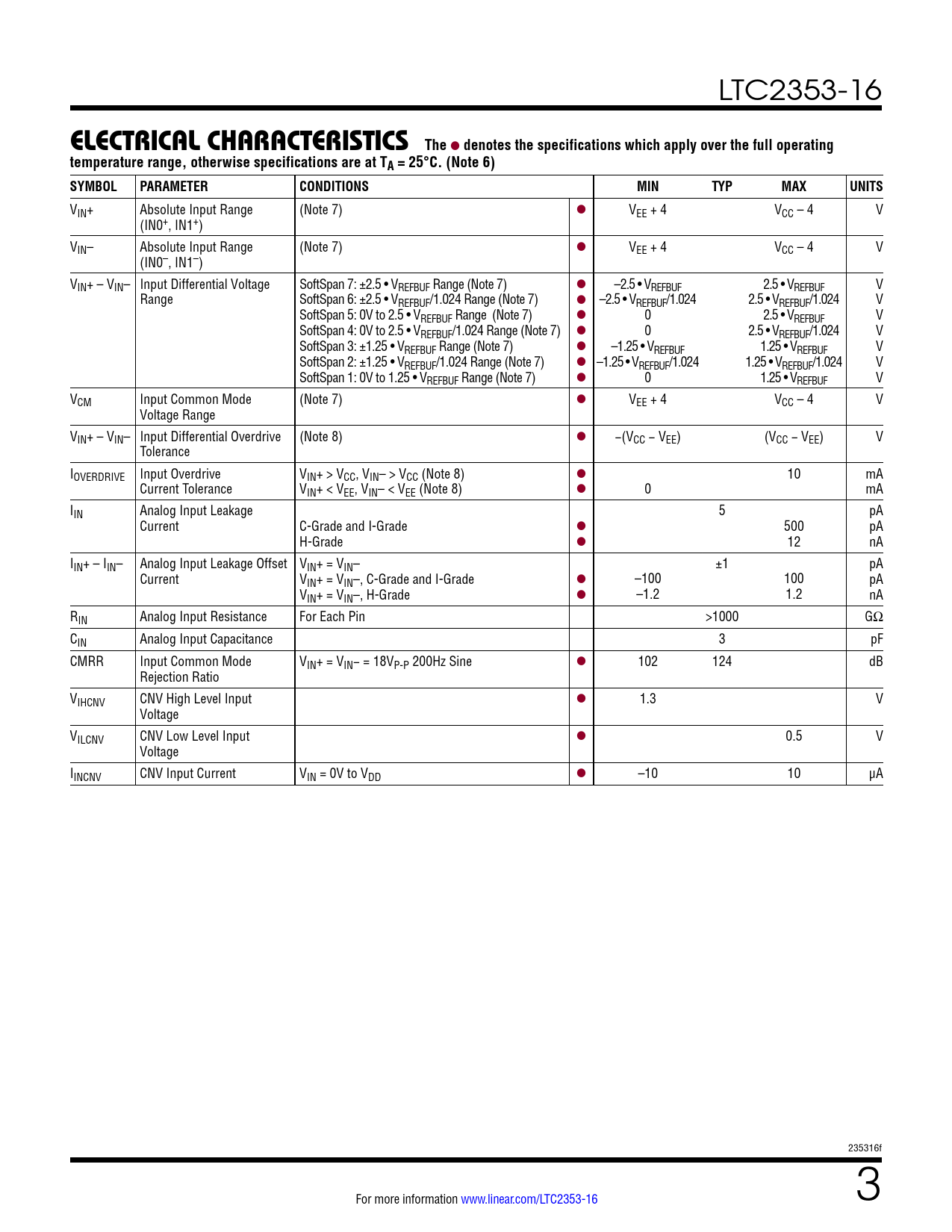

ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply over the full operating
Model Line for this Datasheet
Text Version of Document
LTC2353-16
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 6) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VIN+ Absolute Input Range (Note 7) l VEE + 4 VCC – 4 V (IN0+, IN1+) VIN– Absolute Input Range (Note 7) l VEE + 4 VCC – 4 V (IN0–, IN1–) VIN+ – VIN– Input Differential Voltage SoftSpan 7: ±2.5 • VREFBUF Range (Note 7) l –2.5 • VREFBUF 2.5 • VREFBUF V Range SoftSpan 6: ±2.5 • VREFBUF/1.024 Range (Note 7) l –2.5 • VREFBUF/1.024 2.5 • VREFBUF/1.024 V SoftSpan 5: 0V to 2.5 • VREFBUF Range (Note 7) l 0 2.5 • VREFBUF V SoftSpan 4: 0V to 2.5 • VREFBUF/1.024 Range (Note 7) l 0 2.5 • VREFBUF/1.024 V SoftSpan 3: ±1.25 • VREFBUF Range (Note 7) l –1.25 • VREFBUF 1.25 • VREFBUF V SoftSpan 2: ±1.25 • VREFBUF/1.024 Range (Note 7) l –1.25 • VREFBUF/1.024 1.25 • VREFBUF/1.024 V SoftSpan 1: 0V to 1.25 • VREFBUF Range (Note 7) l 0 1.25 • VREFBUF V VCM Input Common Mode (Note 7) l VEE + 4 VCC – 4 V Voltage Range VIN+ – VIN– Input Differential Overdrive (Note 8) l −(VCC − VEE) (VCC − VEE) V Tolerance IOVERDRIVE Input Overdrive VIN+ > VCC, VIN– > VCC (Note 8) l 10 mA Current Tolerance VIN+ < VEE, VIN– < VEE (Note 8) l 0 mA IIN Analog Input Leakage 5 pA Current C-Grade and I-Grade l 500 pA H-Grade l 12 nA IIN+ – IIN– Analog Input Leakage Offset VIN+ = VIN– ±1 pA Current VIN+ = VIN–, C-Grade and I-Grade l –100 100 pA VIN+ = VIN–, H-Grade l –1.2 1.2 nA RIN Analog Input Resistance For Each Pin >1000 GΩ CIN Analog Input Capacitance 3 pF CMRR Input Common Mode VIN+ = VIN− = 18VP-P 200Hz Sine l 102 124 dB Rejection Ratio VIHCNV CNV High Level Input l 1.3 V Voltage VILCNV CNV Low Level Input l 0.5 V Voltage IINCNV CNV Input Current VIN = 0V to VDD l –10 10 μA 235316f For more information www.linear.com/LTC2353-16 3 Document Outline FEATURES DESCRIPTION APPLICATIONS TYPICAL APPLICATION ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION ORDER INFORMATION ELECTRICAL CHARACTERISTICS CONVERTER CHARACTERISTICS DYNAMIC ACCURACY INTERNAL REFERENCE CHARACTERISTICS REFERENCE BUFFER CHARACTERISTICS DIGITAL INPUTS AND DIGITAL OUTPUTS POWER REQUIREMENTS ADC TIMING CHARACTERISTICS TYPICAL PERFORMANCE CHARACTERISTICS PIN FUNCTIONS CONFIGURATION TABLES FUNCTIONAL BLOCK DIAGRAM TIMING DIAGRAM APPLICATIONS INFORMATION BOARD LAYOUT PACKAGE DESCRIPTION TYPICAL APPLICATION RELATED PARTS
