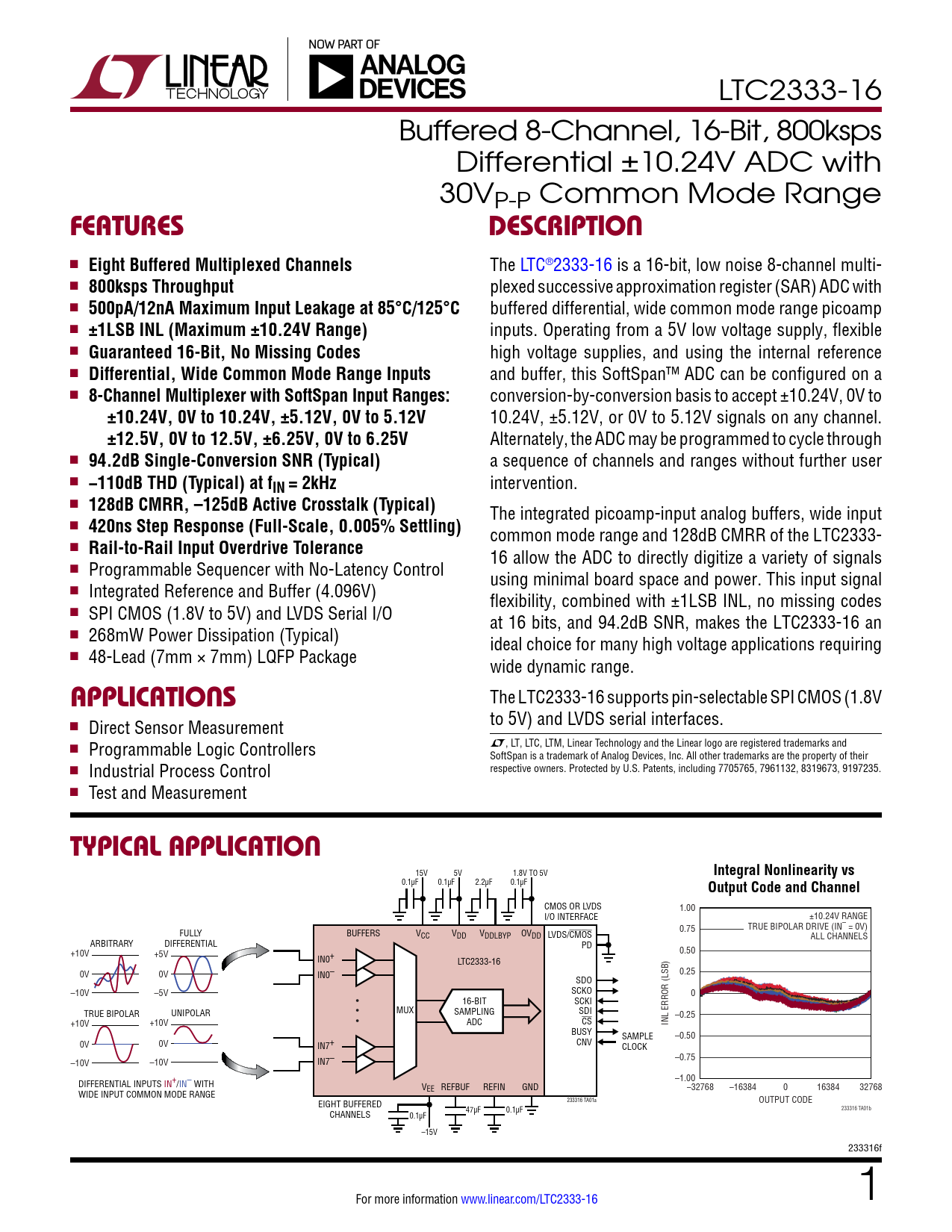

LTC2333-16 Buffered 8-Channel, 16-Bit, 800ksps Differential ±10.24V ADC with 30VP-P Common Mode Range
FeaTures DescripTion
n
Eight Buffered Multiplexed Channels
The LTC®2333-16 is a 16-bit, low noise 8-channel multi- n
800ksps Throughput
plexed successive approximation register (SAR) ADC with n
500pA/12nA Maximum Input Leakage at 85°C/125°C
buffered differential, wide common mode range picoamp n
±1LSB INL (Maximum ±10.24V Range)
inputs. Operating from a 5V low voltage supply, flexible n
Guaranteed 16-Bit, No Missing Codes
high voltage supplies, and using the internal reference n
Differential, Wide Common Mode Range Inputs
and buffer, this SoftSpan™ ADC can be configured on a n
8-Channel Multiplexer with SoftSpan Input Ranges:
conversion-by-conversion basis to accept ±10.24V, 0V to
±10.24V, 0V to 10.24V, ±5.12V, 0V to 5.12V
10.24V, ±5.12V, or 0V to 5.12V signals on any channel.
±12.5V, 0V to 12.5V, ±6.25V, 0V to 6.25V
Alternately, the ADC may be programmed to cycle through n
94.2dB Single-Conversion SNR (Typical)
a sequence of channels and ranges without further user n
−110dB THD (Typical) at fIN = 2kHz
intervention. n
128dB CMRR, –125dB Active Crosstalk (Typical)
The integrated picoamp-input analog buffers, wide input n
420ns Step Response (Full-Scale, 0.005% Settling)
common mode range and 128dB CMRR of the LTC2333- n
Rail-to-Rail Input Overdrive Tolerance
16 allow the ADC to directly digitize a variety of signals n Programmable Sequencer with No-Latency Control using minimal board space and power. This input signal n Integrated Reference and Buffer (4.096V) flexibility, combined with ±1LSB INL, no missing codes n SPI CMOS (1.8V to 5V) and LVDS Serial I/O at 16 bits, and 94.2dB SNR, makes the LTC2333-16 an n 268mW Power Dissipation (Typical) ideal choice for many high voltage applications requiring n 48-Lead (7mm × 7mm) LQFP Package wide dynamic range.
applicaTions
The LTC2333-16 supports pin-selectable SPI CMOS (1.8V n to 5V) and LVDS serial interfaces. Direct Sensor Measurement L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and n Programmable Logic Controllers SoftSpan is a trademark of Analog Devices, Inc. All other trademarks are the property of their n respective owners. Protected by U.S. Patents, including 7705765, 7961132, 8319673, 9197235. Industrial Process Control n Test and Measurement
Typical applicaTion
15V 5V 1.8V TO 5V
Integral Nonlinearity vs
0.1µF 0.1µF 2.2µF 0.1µF
Output Code and Channel
