| Manufacturer | New Jersey Semiconductor |
| Description | Diode Current Regulator 50 V, 0.24-4.70 mA, 2-Pin TO-92 |
| Pages / Page | 2 / 2 — J500 Series. ABSOLUTE MAXIMUM RATINGS |
| File Format / Size | PDF / 642 Kb |
| Document Language | English |

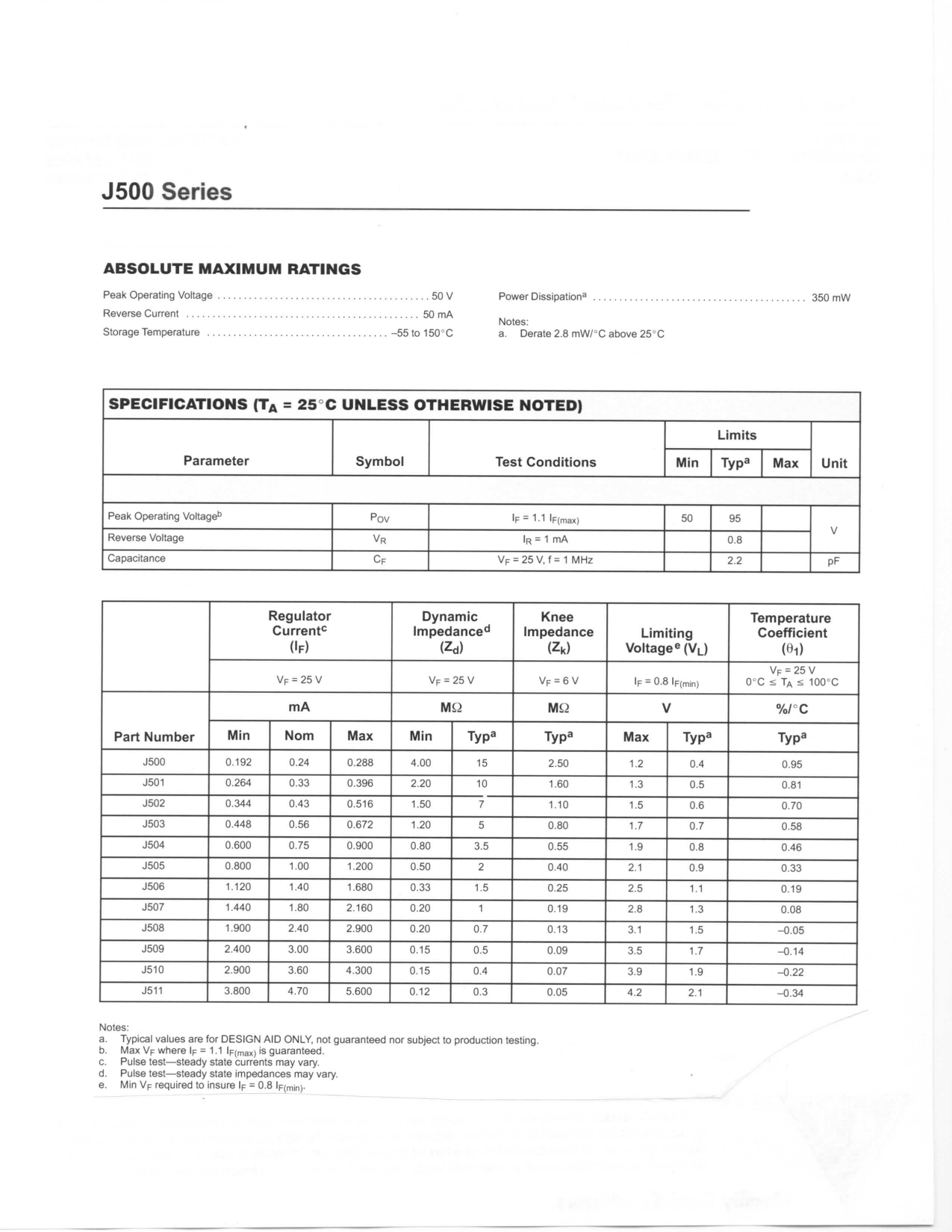

J500 Series. ABSOLUTE MAXIMUM RATINGS
Model Line for this Datasheet
Text Version of Document
J500 Series
ABSOLUTE MAXIMUM RATINGS
Peak Operating Voltage Power Dissipation3 50 V Reverse Current 50 mA Storage Temperature 350 mW Notes:
a. Derate 2.8 mW/°C above 25"C -55 to 150°C SPECIFICATIONS (TA = 25°C UNLESS OTHERWISE NOTED)
Limits Parameter Peak Operating Voltageb Symbol Test Conditions Min POV IF-1.1 Ip(max) 50 Reverse Voltage VR Capacitance CF IR = 1 mA Typa Max 95
V 0.8 VF = 25V, f = 1 MHz Unit 2.2 pF Regulator
Current0
dp) Dynamic
Impedance*1
(Zd) Knee
Impedance
(Zk) Limiting
Voltagee (V L ) Temperature
Coefficient
(61) VF = 25 V VF = 25 V VF = 6 V IF = 0.8 iF(min) VF = 25 V
0°C < TA < 100°C mA MQ MQ V %/°C Part Number Min Nom Max Min Typa Typa Max Typa Typa J500 0.192 0.24 0.288 4.00 15 2.50 1.2 0.4 0.95 J501 0.264 0.33 0.396 2.20 10 1.60 1.3 0.5 0.81 J502 0.344 0.43 0.516 1.50 7 1.10 1.5 0.6 0.70 J503 0.448 0.56 0.672 1.20 5 0.80 1.7 0.7 0.58 J504 0.600 0.75 0.900 0.80 3.5 0.55 1.9 0.8 0.46 J505 0.800 1.00 1.200 0.50 2 0.40 2.1 0.9 0.33 J506 1.120 1.40 1.680 0.33 1.5 0.25 2.5 1.1 0.19 J507 1.440 1.80 2.160 0.20 1 0.19 2.8 1.3 0.08 J508 1.900 2.40 2.900 0.20 0.7 0.13 3.1 1.5 -0.05 J509 2.400 3.00 3.600 0.15 0.5 0.09 3.5 1.7 -0.14 J510 2.900 3.60 4.300 0.15 0.4 0.07 3.9 1.9 -0.22 J511 3.800 4.70 5.600 0.12 0.3 0.05 4.2 2.1 -0.34 Notes:
a. Typical values are for DESIGN AID ONLY, not guaranteed nor subject to production testing.
b. Max VF where IF = 1.1 Ipfmax) is guaranteed.
c. Pulse test—steady state currents may vary.
d. Pulse test—steady state impedances may vary.
e. Min VF required to insure Ip = 0.8 iF(min)-
