Datasheet BCR601 (Infineon) - 4
| Manufacturer | Infineon |
| Description | 60V linear LED controller IC with voltage feedback to primary side / Active Headroom Control |
| Pages / Page | 16 / 4 — BCR601 hot plug IC with voltage feedback to primary side. Pin … |
| Revision | 01_01 |
| File Format / Size | PDF / 380 Kb |
| Document Language | English |

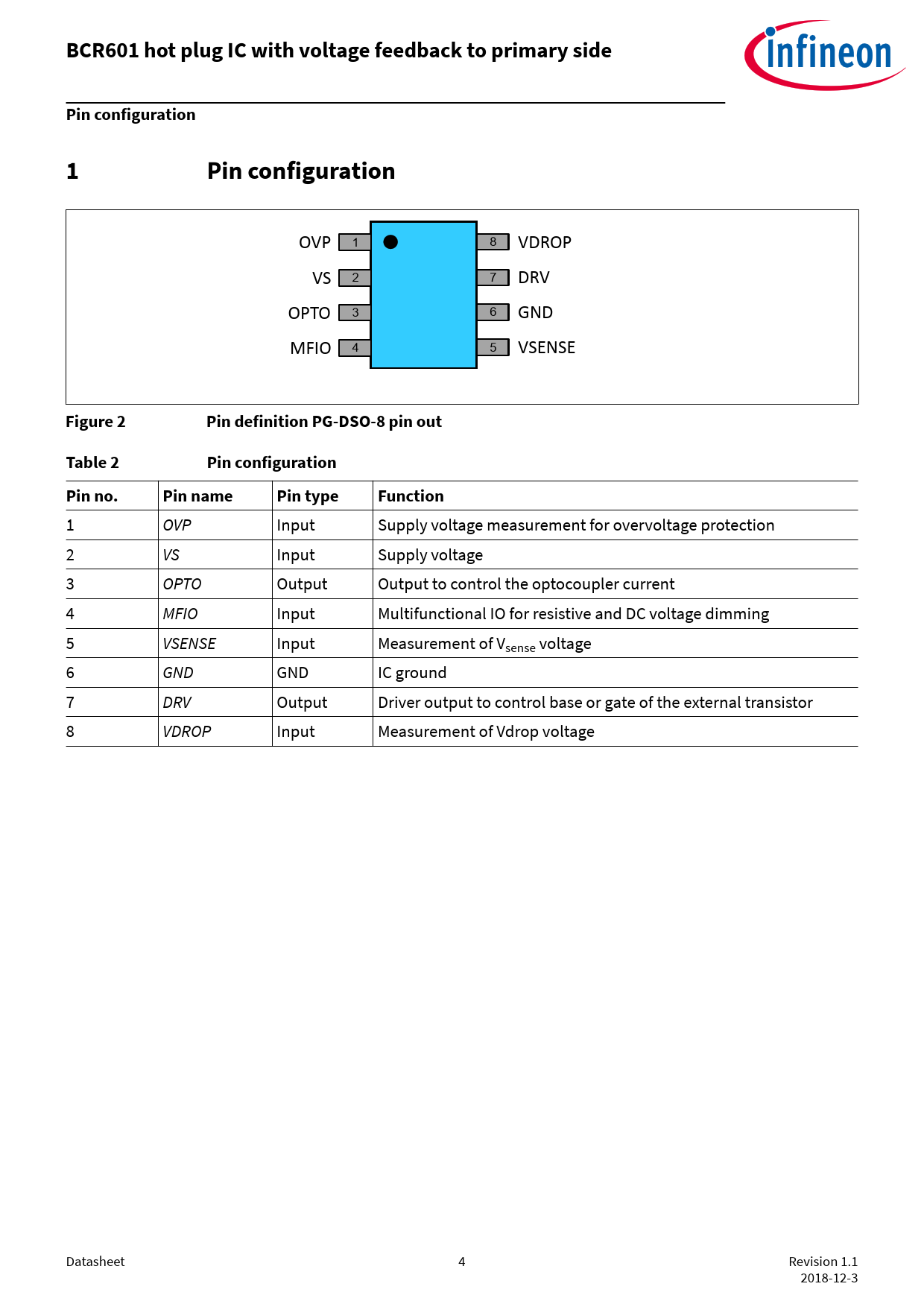

BCR601 hot plug IC with voltage feedback to primary side. Pin configuration. Figure 2. Pin definition PG-DSO-8 pin out. Table 2
Model Line for this Datasheet
Text Version of Document
BCR601 hot plug IC with voltage feedback to primary side Pin configuration 1 Pin configuration
OVP 1 8 VDROP VS 2 7 DRV OPTO 3 6 GND MFIO 4 5 VSENSE
Figure 2 Pin definition PG-DSO-8 pin out Table 2 Pin configuration Pin no. Pin name Pin type Function
1 OVP Input Supply voltage measurement for overvoltage protection 2 VS Input Supply voltage 3 OPTO Output Output to control the optocoupler current 4 MFIO Input Multifunctional IO for resistive and DC voltage dimming 5 VSENSE Input Measurement of Vsense voltage 6 GND GND IC ground 7 DRV Output Driver output to control base or gate of the external transistor 8 VDROP Input Measurement of Vdrop voltage Datasheet 4 Revision 1.1 2018-12-3 Document Outline Features Protection features Target applications Advantages with respect to discrete solutions Product validation Device information Description Table of contents 1 Pin configuration 2 Functional description 3 Thermal characteristics 4 Absolute maximum ratings 5 Operating conditions 6 Electrical characteristics 7 Package information 8 References Revision history Disclaimer
