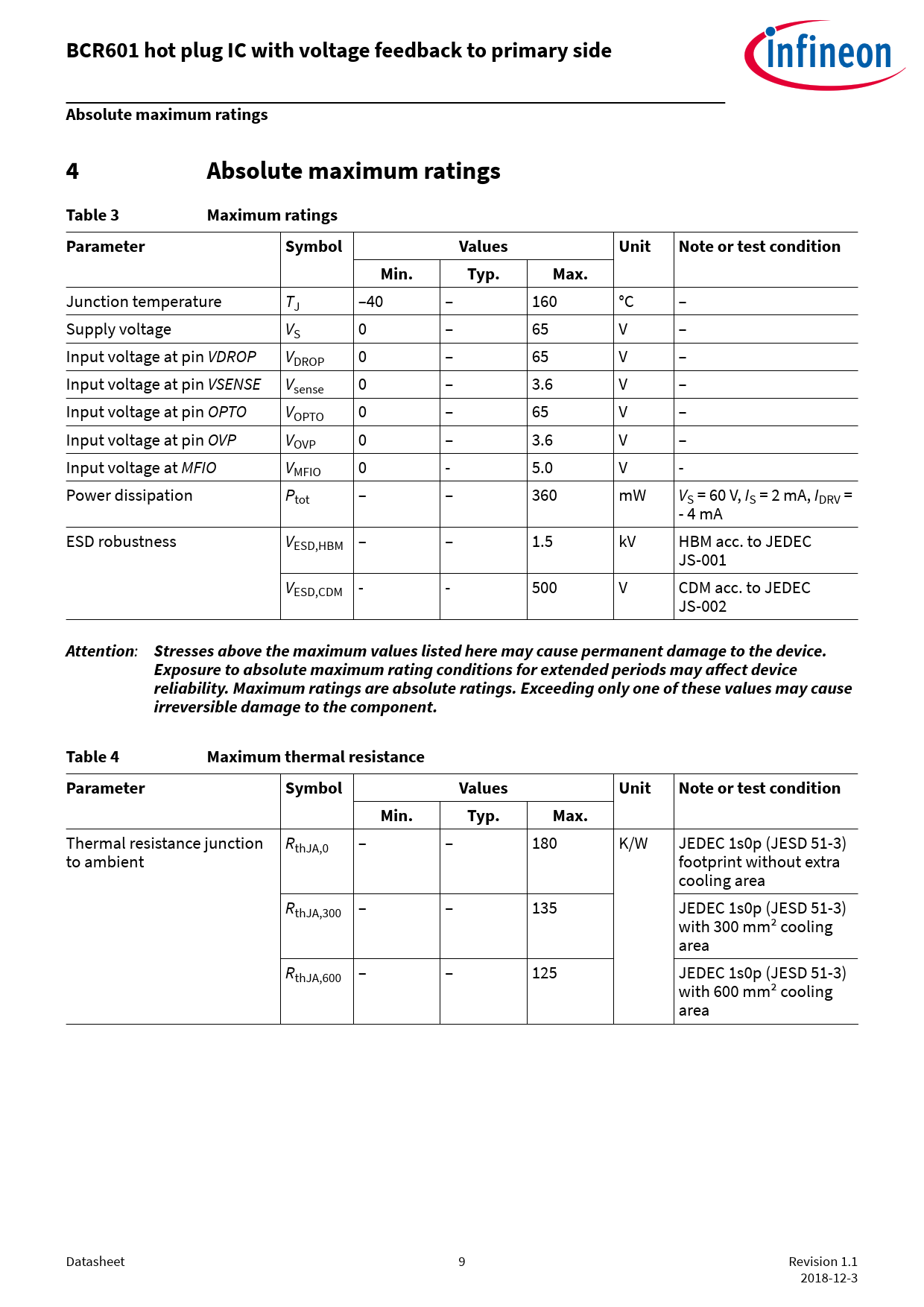

BCR601 hot plug IC with voltage feedback to primary side Absolute maximum ratings 4 Absolute maximum ratings Table 3 Maximum ratings Parameter Symbol Values Unit Note or test condition Min. Typ. Max.
Junction temperature TJ –40 – 160 °C – Supply voltage VS 0 – 65 V – Input voltage at pin VDROP VDROP 0 – 65 V – Input voltage at pin VSENSE Vsense 0 – 3.6 V – Input voltage at pin OPTO VOPTO 0 – 65 V – Input voltage at pin OVP VOVP 0 – 3.6 V – Input voltage at MFIO VMFIO 0 - 5.0 V - Power dissipation Ptot – – 360 mW VS = 60 V, IS = 2 mA, IDRV = - 4 mA ESD robustness VESD,HBM – – 1.5 kV HBM acc. to JEDEC JS-001 VESD,CDM - - 500 V CDM acc. to JEDEC JS-002
Attention
:
Stresses above the maximum values listed here may cause permanent damage to the device. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Maximum ratings are absolute ratings. Exceeding only one of these values may cause irreversible damage to the component. Table 4 Maximum thermal resistance Parameter Symbol Values Unit Note or test condition Min. Typ. Max.
Thermal resistance junction RthJA,0 – – 180 K/W JEDEC 1s0p (JESD 51-3) to ambient footprint without extra cooling area RthJA,300 – – 135 JEDEC 1s0p (JESD 51-3) with 300 mm² cooling area RthJA,600 – – 125 JEDEC 1s0p (JESD 51-3) with 600 mm² cooling area Datasheet 9 Revision 1.1 2018-12-3 Document Outline Features Protection features Target applications Advantages with respect to discrete solutions Product validation Device information Description Table of contents 1 Pin configuration 2 Functional description 3 Thermal characteristics 4 Absolute maximum ratings 5 Operating conditions 6 Electrical characteristics 7 Package information 8 References Revision history Disclaimer
