MLX90374 - Triaxis® Position Processor
Datasheet

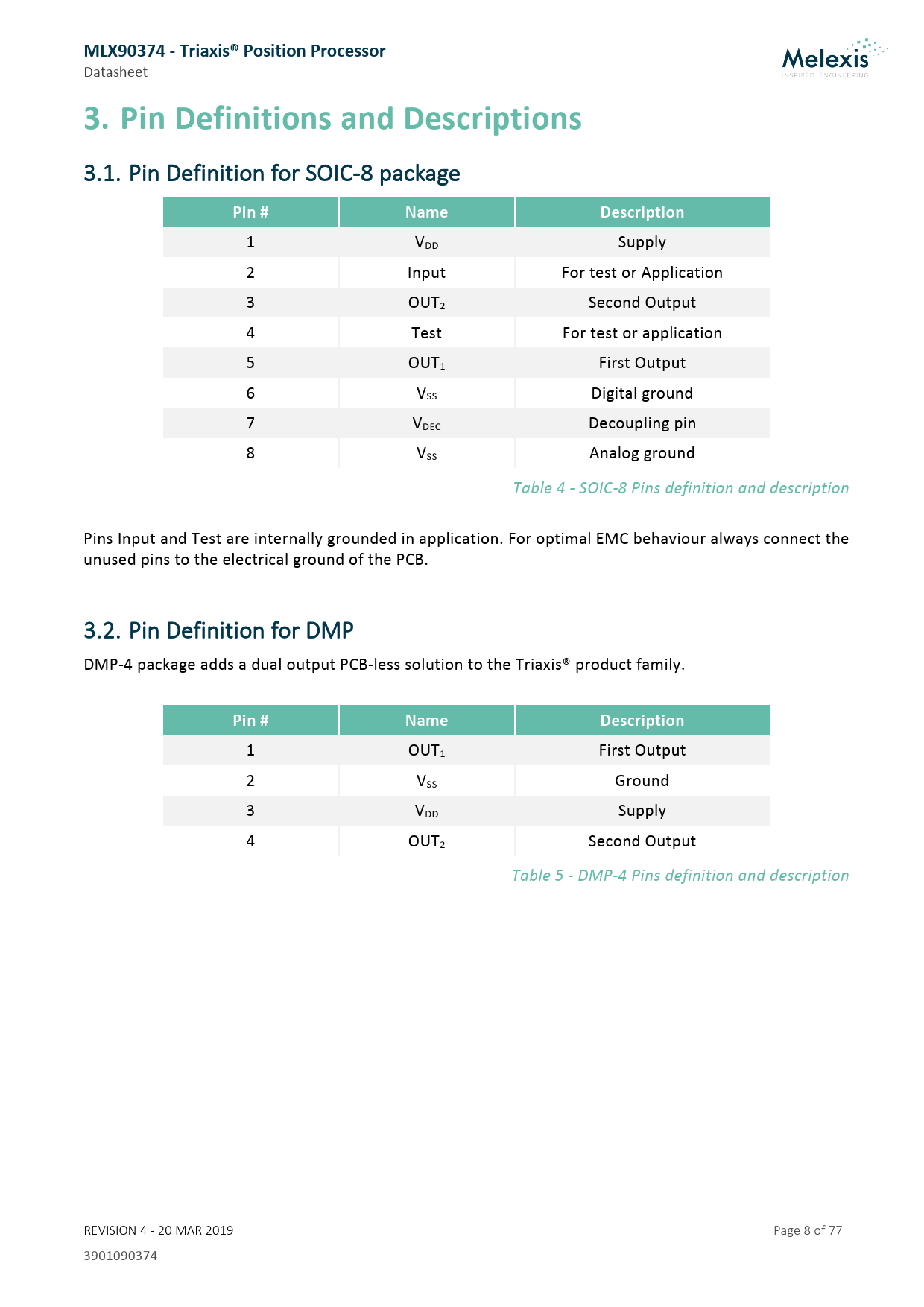

3. Pin Definitions and Descriptions
3.1. Pin Definition for SOIC-8 package
Pin # Name Description
1 VDD Supply 2 Input For test or Application 3 OUT2 Second Output 4 Test For test or application 5 OUT1 First Output 6 VSS Digital ground 7 VDEC Decoupling pin 8 VSS Analog ground Table 4 - SOIC-8 Pins definition and description Pins Input and Test are internally grounded in application. For optimal EMC behaviour always connect the unused pins to the electrical ground of the PCB. 3.2. Pin Definition for DMP DMP-4 package adds a dual output PCB-less solution to the Triaxis® product family.
Pin # Name Description
