MMBT3904T. Package Outline Dimensions. SOT523. Dim. Min. Max. Typ. All Dimensions in mm. Suggested Pad Layout. Dimensions Value (in mm)
Model Line for this Datasheet
Text Version of Document

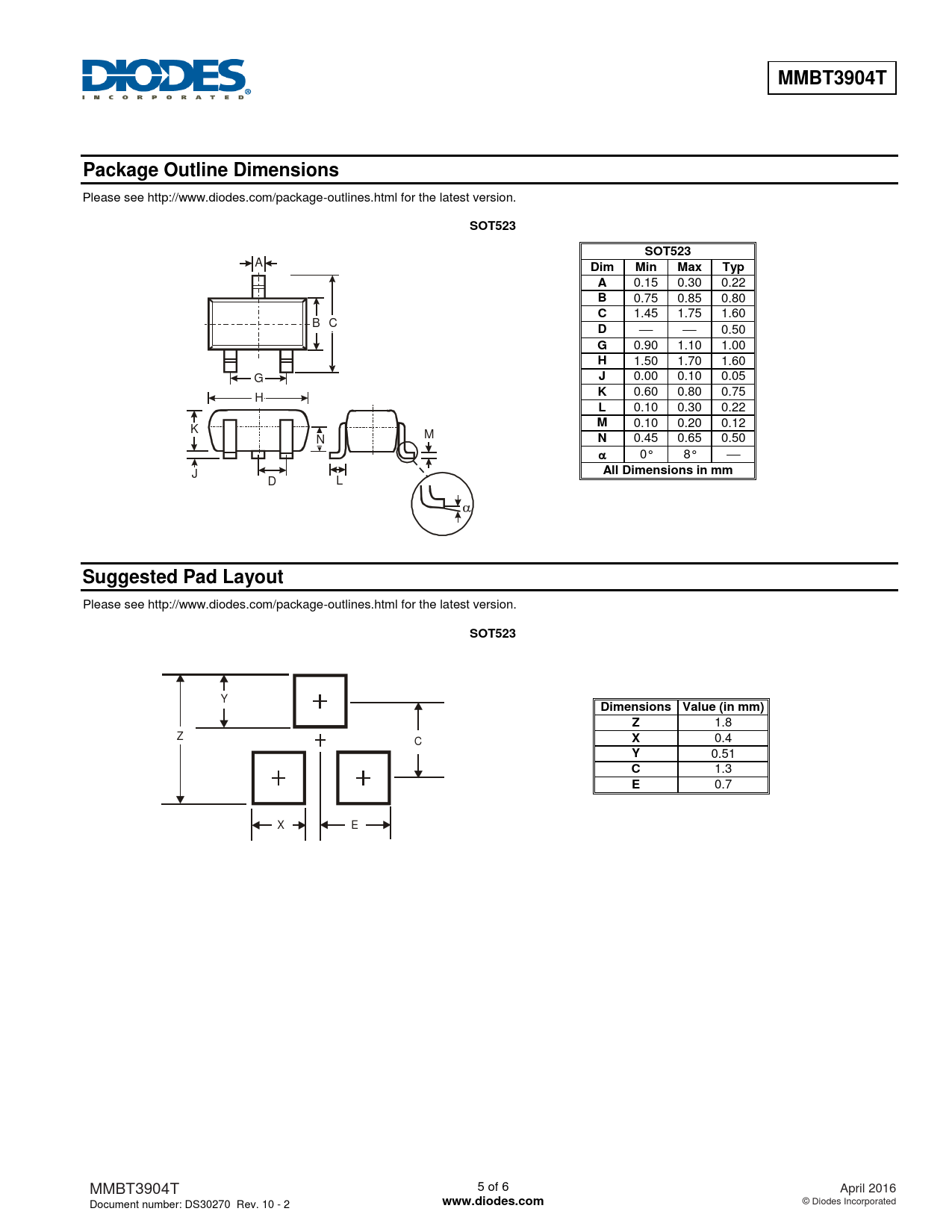

MMBT3904T Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOT523 SOT523
A
Dim Min Max Typ A
0.15 0.30 0.22
B
0.75 0.85 0.80
C
1.45 1.75 1.60 B C
D
0.50
G
0.90 1.10 1.00
H
1.50 1.70 1.60 G
J
0.00 0.10 0.05
K
0.60 0.80 0.75 H
L
0.10 0.30 0.22
M
0.10 0.20 0.12 K M N
N
0.45 0.65 0.50 0° 8°
All Dimensions in mm
J D L
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOT523
Y
Dimensions Value (in mm) Z
1.8 Z
X
0.4 C
Y
0.51
C
1.3
E
0.7 X E MMBT3904T 5 of 6 April 2016 Document number: DS30270 Rev. 10 - 2
