Datasheet SMBT3906...MMBT3906 (Infineon) - 6
| Manufacturer | Infineon |
| Description | PNP Silicon Switching Transistors |
| Pages / Page | 12 / 6 — SMBT3906...MMBT3906. Total power dissipation. Permissible Pulse Load |
| Revision | 01_01 |
| File Format / Size | PDF / 908 Kb |
| Document Language | English |

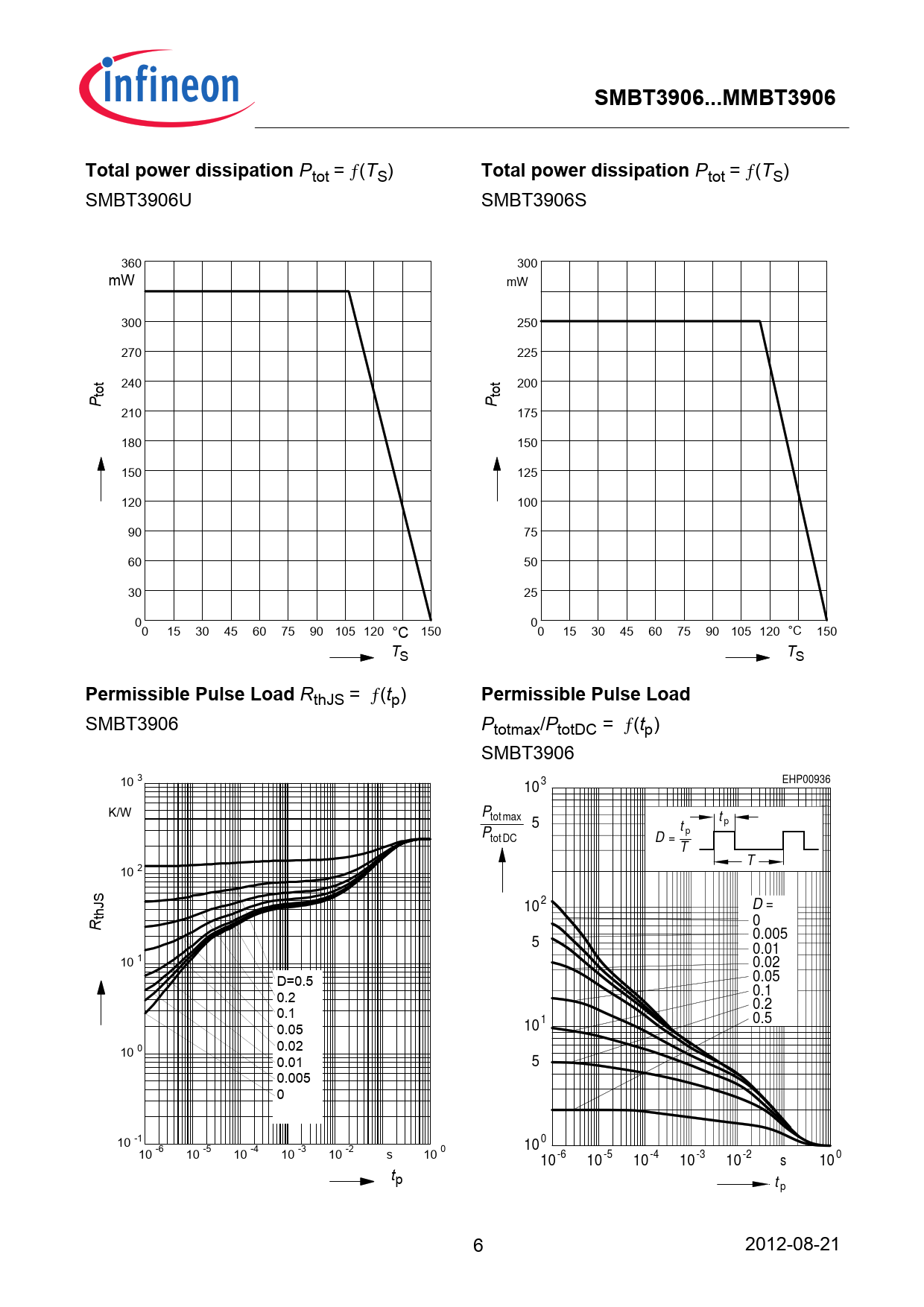

SMBT3906...MMBT3906. Total power dissipation. Permissible Pulse Load
Model Line for this Datasheet
Text Version of Document
SMBT3906...MMBT3906 Total power dissipation
Ptot = ƒ(TS)
Total power dissipation
Ptot = ƒ(TS) SMBT3906U SMBT3906S 360 300 mW mW 300 250 270 225 240 200 tot tot P P 210 175 180 150 150 125 120 100 90 75 60 50 30 25 0 0 0 15 30 45 60 75 90 105 120 °C 150 0 15 30 45 60 75 90 105 120 °C 150 TS TS
Permissible Pulse Load
RthJS = ƒ(tp)
Permissible Pulse Load
SMBT3906 Ptotmax/PtotDC = ƒ(tp) SMBT3906 3 10 3 EHP00936 10 K/W Ptotmax 5 t p P t p tot DC D = T T 2 10 S 102 D = thJR 0 0.005 5 0.01 1 10 0.02 D=0.5 0.05 0.2 0.1 0.2 0.1 0.5 0.05 101 0 10 0.02 0.01 5 0.005 0 -1 10 0 10 10 -6 10 -5 10 -4 10 -3 10 -2 10 0 s 10-6 10-5 10-4 10-3 10-2 100 s tp t p 6 2012-08-21
