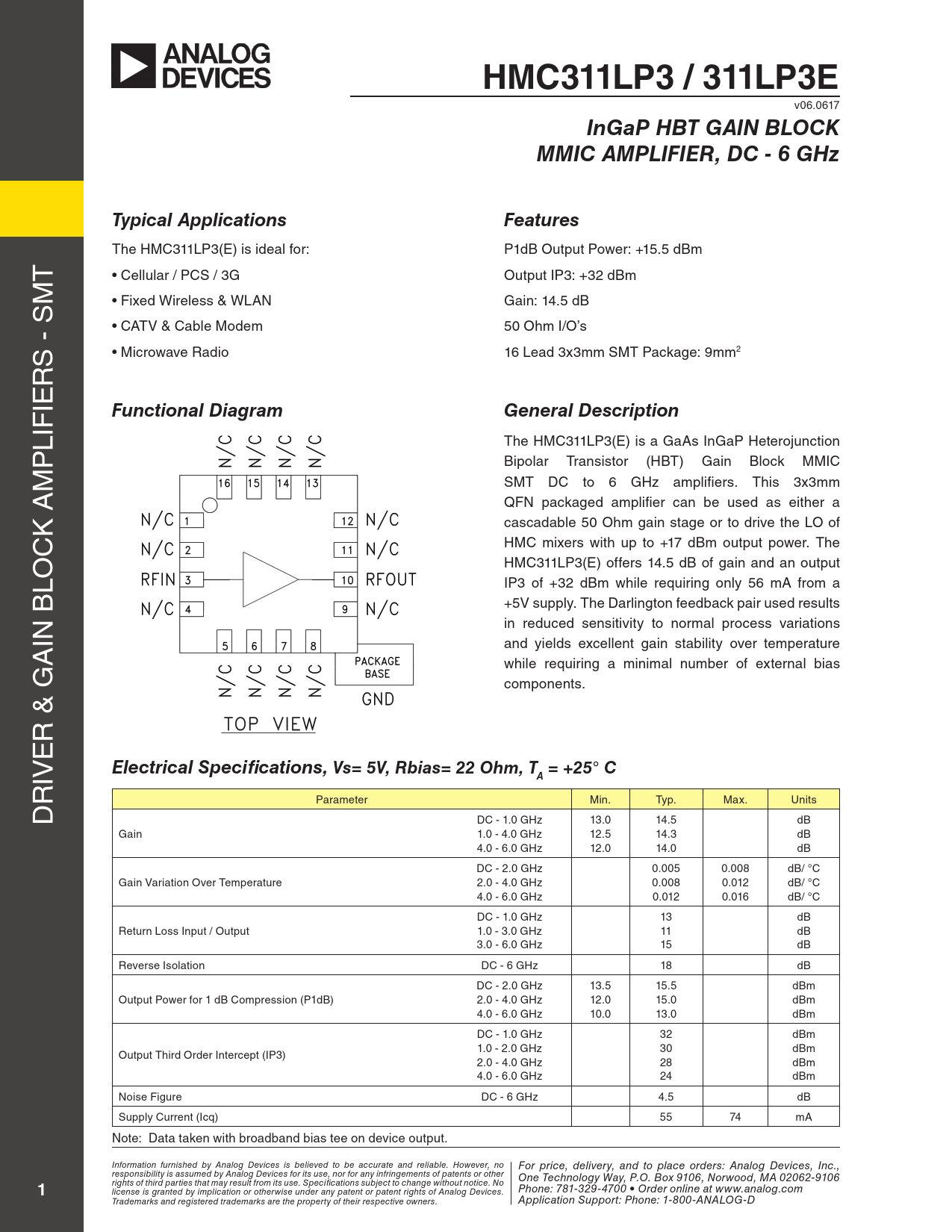

HMC311LP3 / 311LP3E. InGaP HBT GAIN BLOCK. MMIC AMPLIFIER, DC - 6 GHz. Typical Applications. Features. Functional Diagram
Text Version of Document
HMC311LP3 / 311LP3E
v06.0617
InGaP HBT GAIN BLOCK MMIC AMPLIFIER, DC - 6 GHz Typical Applications Features
The HMC311LP3(E) is ideal for: P1dB Output Power: +15.5 dBm T • Cel ular / PCS / 3G Output IP3: +32 dBm M • Fixed Wireless & WLAN Gain: 14.5 dB • CATV & Cable Modem 50 Ohm I/O’s S - S • Microwave Radio 16 Lead 3x3mm SMT Package: 9mm2 R IE
Functional Diagram General Description
LIF The HMC311LP3(E) is a GaAs InGaP Heterojunction P Bipolar Transistor (HBT) Gain Block MMIC M SMT DC to 6 GHz amplifiers. This 3x3mm QFN packaged amplifier can be used as either a K A cascadable 50 Ohm gain stage or to drive the LO of C HMC mixers with up to +17 dBm output power. The HMC311LP3(E) offers 14.5 dB of gain and an output LO IP3 of +32 dBm while requiring only 56 mA from a +5V supply. The Darlington feedback pair used results IN B in reduced sensitivity to normal process variations A and yields excel ent gain stability over temperature while requiring a minimal number of external bias components. R & G E IV
Electrical Specifications, Vs= 5V, Rbias= 22 Ohm, T = +25° C A
R D Parameter Min. Typ. Max. Units DC - 1.0 GHz 13.0 14.5 dB Gain 1.0 - 4.0 GHz 12.5 14.3 dB 4.0 - 6.0 GHz 12.0 14.0 dB DC - 2.0 GHz 0.005 0.008 dB/ °C Gain Variation Over Temperature 2.0 - 4.0 GHz 0.008 0.012 dB/ °C 4.0 - 6.0 GHz 0.012 0.016 dB/ °C DC - 1.0 GHz 13 dB Return Loss Input / Output 1.0 - 3.0 GHz 11 dB 3.0 - 6.0 GHz 15 dB Reverse Isolation DC - 6 GHz 18 dB DC - 2.0 GHz 13.5 15.5 dBm Output Power for 1 dB Compression (P1dB) 2.0 - 4.0 GHz 12.0 15.0 dBm 4.0 - 6.0 GHz 10.0 13.0 dBm DC - 1.0 GHz 32 dBm 1.0 - 2.0 GHz 30 dBm Output Third Order Intercept (IP3) 2.0 - 4.0 GHz 28 dBm 4.0 - 6.0 GHz 24 dBm Noise Figure DC - 6 GHz 4.5 dB Supply Current (Icq) 55 74 mA Note: Data taken with broadband bias tee on device output. Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
