MLX90641 16x12 IR array
Datasheet

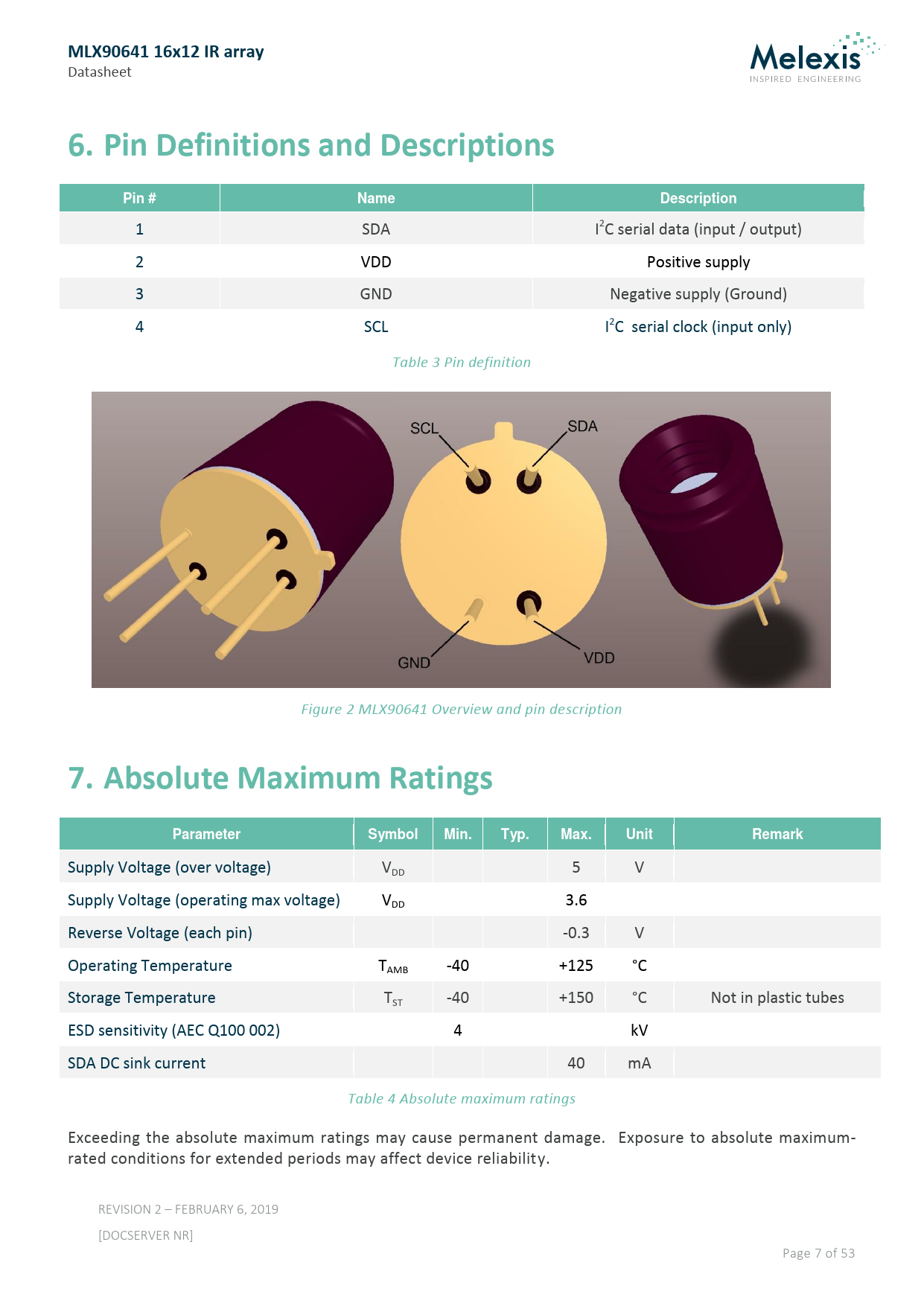

6. Pin Definitions and Descriptions Pin # Name Description
1 SDA I2C serial data (input / output) 2 VDD Positive supply 3 GND Negative supply (Ground) 4 SCL I2C serial clock (input only) Table 3 Pin definition Figure 2 MLX90641 Overview and pin description
7. Absolute Maximum Ratings Parameter Symbol Min. Typ. Max. Unit Remark
Supply Voltage (over voltage) VDD 5 V Supply Voltage (operating max voltage) VDD 3.6 Reverse Voltage (each pin) -0.3 V Operating Temperature TAMB -40 +125 °C Storage Temperature TST -40 +150 °C Not in plastic tubes ESD sensitivity (AEC Q100 002) 4 kV SDA DC sink current 40 mA Table 4 Absolute maximum ratings Exceeding the absolute maximum ratings may cause permanent damage. Exposure to absolute maximum- rated conditions for extended periods may affect device reliability. REVISION 2 – FEBRUARY 6, 2019 [DOCSERVER NR] Page 7 of 53
