Datasheet HT16D35A/HT16D35B (Holtek) - 7
| Manufacturer | Holtek |
| Description | RAM Mapping 28×8 Constant Current LED Driver |
| Pages / Page | 71 / 7 — HT16D35A/HT16D35B. I2C Bus Timing. Power on Reset Timing |
| Revision | 1.00 |
| File Format / Size | PDF / 2.3 Mb |
| Document Language | English |
HT16D35A/HT16D35B. I2C Bus Timing. Power on Reset Timing
Model Line for this Datasheet
Text Version of Document

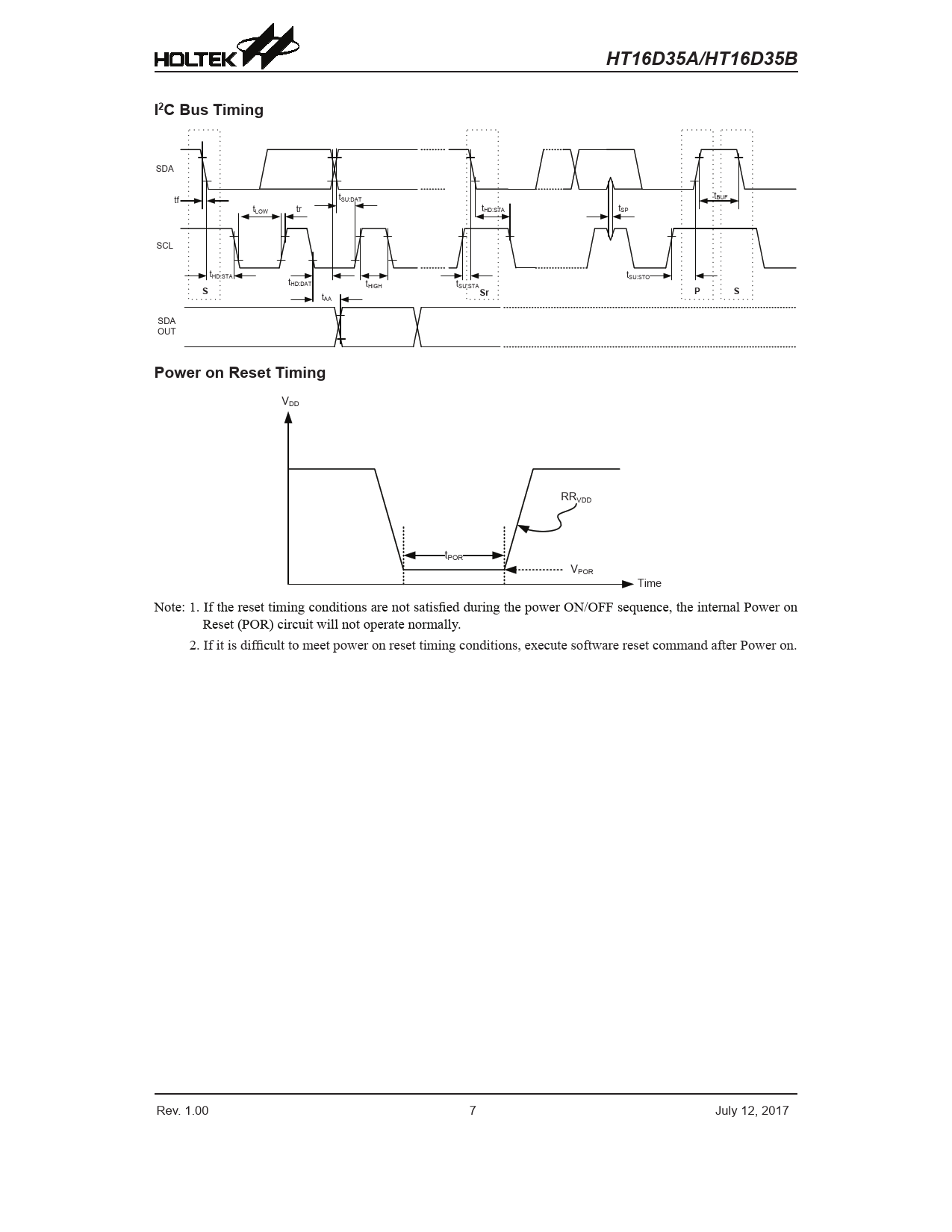

HT16D35A/HT16D35B I2C Bus Timing
SDA tf t t SU:DAT BUF tLOW tr tHD:STA tSP SCL tHD:STA t t SU:STO HD:DAT tHIGH tSU:STA
S Sr P S
tAA SDA OUT
Power on Reset Timing
