Datasheet CL7002C3 (CEL) - 2
| Manufacturer | CEL |
| Description | Ultraviolet C Light Emitting Diode |
| Pages / Page | 7 / 2 — DATA SHEET: CL7002C3. ULTRAVIOLET C LIGHT EMITTING DIODE. Absolute … |
| File Format / Size | PDF / 690 Kb |
| Document Language | English |

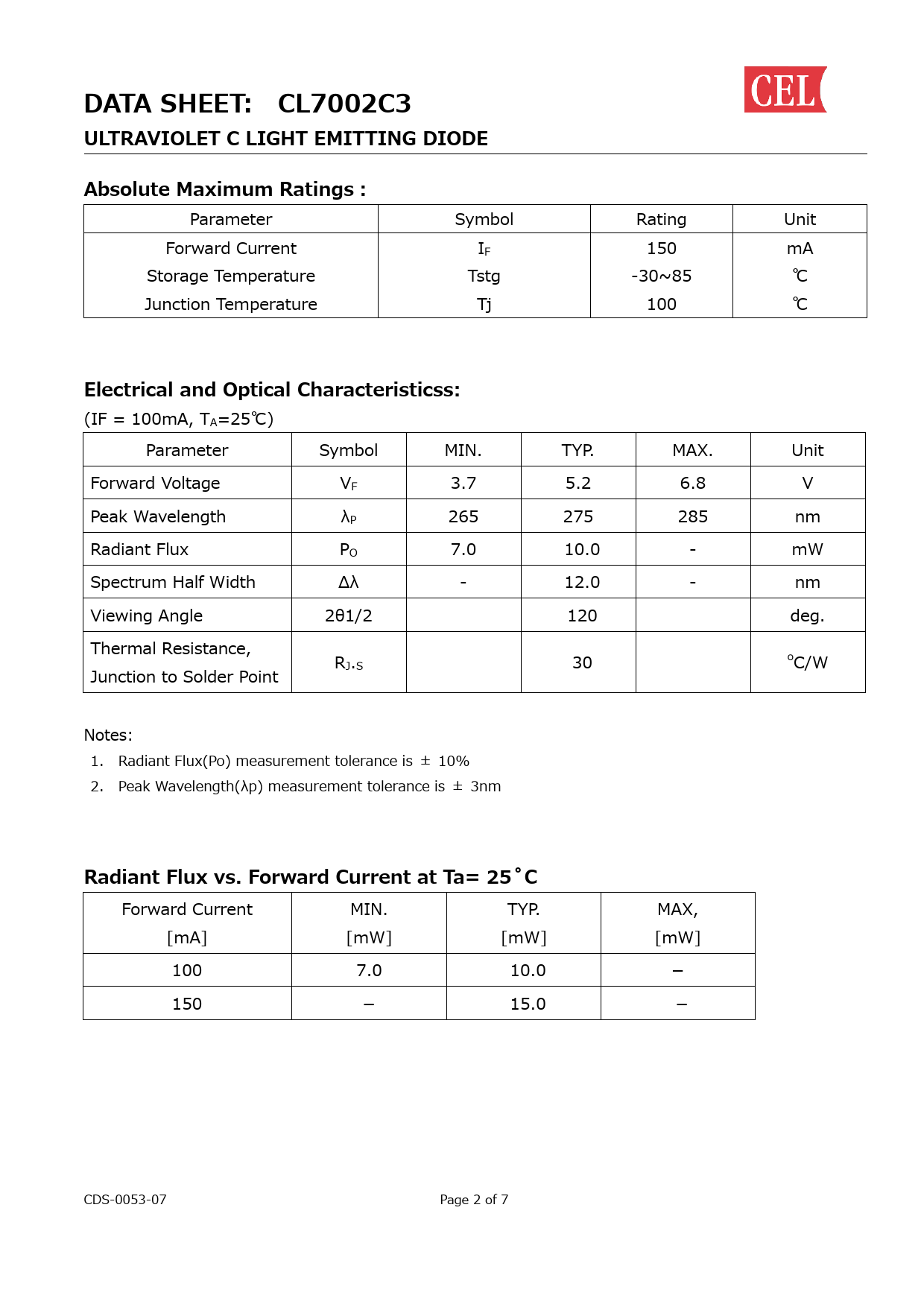

DATA SHEET: CL7002C3. ULTRAVIOLET C LIGHT EMITTING DIODE. Absolute Maximum Ratings：. Electrical and Optical Characteristicss:
Model Line for this Datasheet
Text Version of Document
DATA SHEET: CL7002C3 ULTRAVIOLET C LIGHT EMITTING DIODE Absolute Maximum Ratings：
Parameter Symbol Rating Unit Forward Current IF 150 mA Storage Temperature Tstg -30~85 ℃ Junction Temperature Tj 100 ℃
Electrical and Optical Characteristicss:
(IF = 100mA, TA=25℃) Parameter Symbol MIN. TYP. MAX. Unit Forward Voltage VF 3.7 5.2 6.8 V Peak Wavelength λP 265 275 285 nm Radiant Flux PO 7.0 10.0 - mW Spectrum Half Width Δλ - 12.0 - nm Viewing Angle 2θ1/2 120 deg. Thermal Resistance, RJ.S 30 oC/W Junction to Solder Point Notes: 1. Radiant Flux(Po) measurement tolerance is ± 10% 2. Peak Wavelength(λp) measurement tolerance is ± 3nm
Radiant Flux vs. Forward Current at Ta= 25˚C
Forward Current MIN. TYP. MAX, [mA] [mW] [mW] [mW] 100 7.0 10.0 － 150 － 15.0 － CDS-0053-07 Page 2 of 7
Parameter Symbol Rating Unit Forward Current IF 150 mA Storage Temperature Tstg -30~85 ℃ Junction Temperature Tj 100 ℃
Electrical and Optical Characteristicss:
(IF = 100mA, TA=25℃) Parameter Symbol MIN. TYP. MAX. Unit Forward Voltage VF 3.7 5.2 6.8 V Peak Wavelength λP 265 275 285 nm Radiant Flux PO 7.0 10.0 - mW Spectrum Half Width Δλ - 12.0 - nm Viewing Angle 2θ1/2 120 deg. Thermal Resistance, RJ.S 30 oC/W Junction to Solder Point Notes: 1. Radiant Flux(Po) measurement tolerance is ± 10% 2. Peak Wavelength(λp) measurement tolerance is ± 3nm
Radiant Flux vs. Forward Current at Ta= 25˚C
Forward Current MIN. TYP. MAX, [mA] [mW] [mW] [mW] 100 7.0 10.0 － 150 － 15.0 － CDS-0053-07 Page 2 of 7
