Datasheet CMSH1-20, CMSH1-40, CMSH1-60, CMSH1-100 (Central Semiconductor)
| Manufacturer | Central Semiconductor |
| Description | Surface mount Rectifier-Schottky (>=1A) Single |
| Pages / Page | 7 / 1 — CMSH1-20. CMSH1-60. CMSH1-40. CMSH1-100. www.centra lsemi.com. SURFACE … |
| File Format / Size | PDF / 827 Kb |
| Document Language | English |

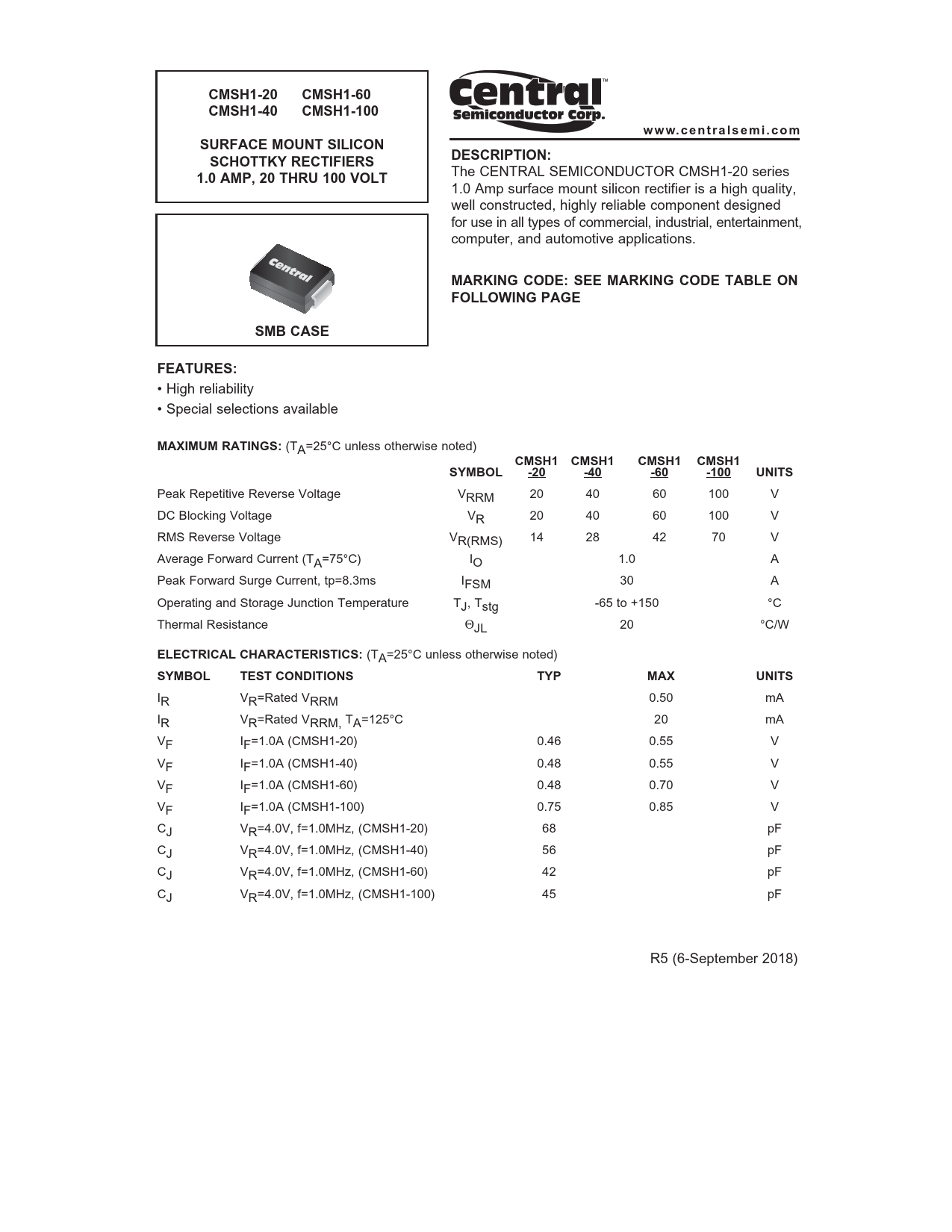

CMSH1-20. CMSH1-60. CMSH1-40. CMSH1-100. www.centra lsemi.com. SURFACE MOUNT SILICON. SCHOTTKY RECTIFIERS. DESCRIPTION:
Model Line for this Datasheet
Text Version of Document
CMSH1-20 CMSH1-60 CMSH1-40 CMSH1-100 www.centra lsemi.com SURFACE MOUNT SILICON SCHOTTKY RECTIFIERS DESCRIPTION: 1.0 AMP, 20 THRU 100 VOLT
The CENTRAL SEMICONDUCTOR CMSH1-20 series 1.0 Amp surface mount silicon rectifier is a high quality, well constructed, highly reliable component designed for use in all types of commercial, industrial, entertainment, computer, and automotive applications.
MARKING CODE: SEE MARKING CODE TABLE ON FOLLOWING PAGE SMB CASE FEATURES:
• High reliability • Special selections available
MAXIMUM RATINGS:
(TA=25°C unless otherwise noted)
CMSH1 CMSH1 CMSH1 CMSH1 SYMBOL -20 -40 -60 -100 UNITS
Peak Repetitive Reverse Voltage VRRM 20 40 60 100 V DC Blocking Voltage VR 20 40 60 100 V RMS Reverse Voltage VR(RMS) 14 28 42 70 V Average Forward Current (TA=75°C) IO 1.0 A Peak Forward Surge Current, tp=8.3ms IFSM 30 A Operating and Storage Junction Temperature TJ, Tstg -65 to +150 °C Thermal Resistance ΘJL 20 °C/W
ELECTRICAL CHARACTERISTICS:
(TA=25°C unless otherwise noted)
SYMBOL TEST CONDITIONS TYP MAX UNITS
IR VR=Rated VRRM 0.50 mA IR VR=Rated VRRM, TA=125°C 20 mA VF IF=1.0A (CMSH1-20) 0.46 0.55 V VF IF=1.0A (CMSH1-40) 0.48 0.55 V VF IF=1.0A (CMSH1-60) 0.48 0.70 V VF IF=1.0A (CMSH1-100) 0.75 0.85 V CJ VR=4.0V, f=1.0MHz, (CMSH1-20) 68 pF CJ VR=4.0V, f=1.0MHz, (CMSH1-40) 56 pF CJ VR=4.0V, f=1.0MHz, (CMSH1-60) 42 pF CJ VR=4.0V, f=1.0MHz, (CMSH1-100) 45 pF R5 (6-September 2018)
The CENTRAL SEMICONDUCTOR CMSH1-20 series 1.0 Amp surface mount silicon rectifier is a high quality, well constructed, highly reliable component designed for use in all types of commercial, industrial, entertainment, computer, and automotive applications.
MARKING CODE: SEE MARKING CODE TABLE ON FOLLOWING PAGE SMB CASE FEATURES:
• High reliability • Special selections available
MAXIMUM RATINGS:
(TA=25°C unless otherwise noted)
CMSH1 CMSH1 CMSH1 CMSH1 SYMBOL -20 -40 -60 -100 UNITS
Peak Repetitive Reverse Voltage VRRM 20 40 60 100 V DC Blocking Voltage VR 20 40 60 100 V RMS Reverse Voltage VR(RMS) 14 28 42 70 V Average Forward Current (TA=75°C) IO 1.0 A Peak Forward Surge Current, tp=8.3ms IFSM 30 A Operating and Storage Junction Temperature TJ, Tstg -65 to +150 °C Thermal Resistance ΘJL 20 °C/W
ELECTRICAL CHARACTERISTICS:
(TA=25°C unless otherwise noted)
SYMBOL TEST CONDITIONS TYP MAX UNITS
IR VR=Rated VRRM 0.50 mA IR VR=Rated VRRM, TA=125°C 20 mA VF IF=1.0A (CMSH1-20) 0.46 0.55 V VF IF=1.0A (CMSH1-40) 0.48 0.55 V VF IF=1.0A (CMSH1-60) 0.48 0.70 V VF IF=1.0A (CMSH1-100) 0.75 0.85 V CJ VR=4.0V, f=1.0MHz, (CMSH1-20) 68 pF CJ VR=4.0V, f=1.0MHz, (CMSH1-40) 56 pF CJ VR=4.0V, f=1.0MHz, (CMSH1-60) 42 pF CJ VR=4.0V, f=1.0MHz, (CMSH1-100) 45 pF R5 (6-September 2018)
