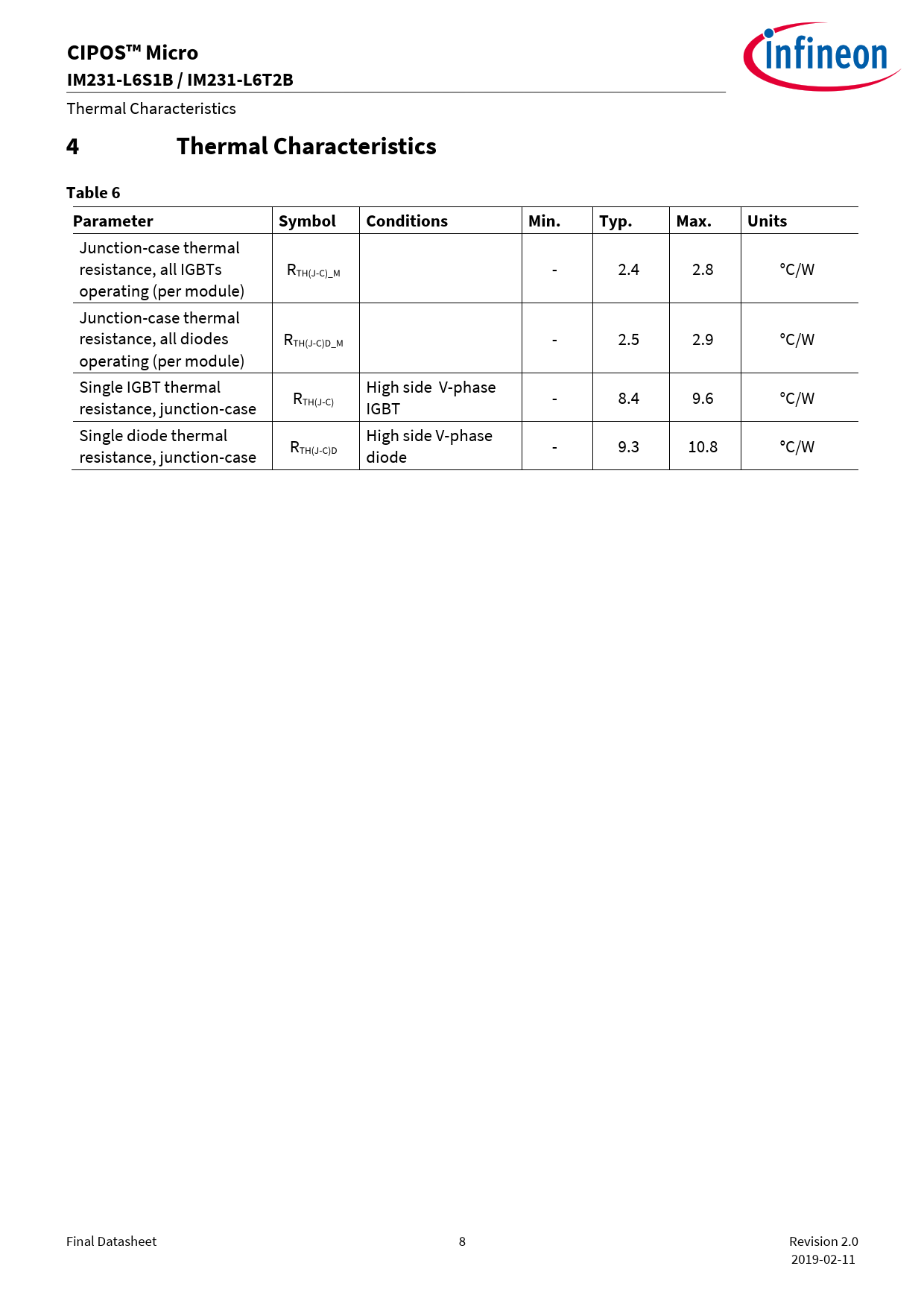

CIPOS™ Micro. IM231-L6S1B / IM231-L6T2B. Thermal Characteristics. Table 6. Parameter. Symbol. Conditions. Min. Typ. Max. Units
Model Line for this Datasheet
Text Version of Document
CIPOS™ Micro IM231-L6S1B / IM231-L6T2B
Thermal Characteristics
4 Thermal Characteristics Table 6 Parameter Symbol Conditions Min. Typ. Max. Units
Junction-case thermal resistance, all IGBTs RTH(J-C)_M - 2.4 2.8 °C/W operating (per module) Junction-case thermal resistance, all diodes RTH(J-C)D_M - 2.5 2.9 °C/W operating (per module) Single IGBT thermal High side V-phase R - 8.4 9.6 °C/W resistance, junction-case TH(J-C) IGBT Single diode thermal High side V-phase R - 9.3 10.8 °C/W resistance, junction-case TH(J-C)D diode Final Datasheet 8 Revision 2.0 2019-02-11 Document Outline Description Features Potential Applications Product validation Table 1 Part Ordering Table Table of contents 1 Internal Electrical Schematic 2 Pin Configuration 3 Absolute Maximum Rating 4 Thermal Characteristics 5 Recommended Operating Conditions 6 Static Parameters 7 Dynamic Parameters 8 Thermistor Characteristics 9 Mechanical Characteristics and Ratings 10 Qualification Information 11 Diagrams & Tables 12 Application Guide 13 Package Outline Revision History Disclimer
