Datasheet S-35710 (ABLIC) - 4
| Manufacturer | ABLIC |
| Description | Programmable Wake-up Timer IC |
| Pages / Page | 32 / 4 — WAKE-UP TIMER IC PROGRAMMABLE WAKE-UP TIMER IC. S-35710 Series. Pin … |
| Revision | 1.0_00 |
| File Format / Size | PDF / 795 Kb |
| Document Language | English |
WAKE-UP TIMER IC PROGRAMMABLE WAKE-UP TIMER IC. S-35710 Series. Pin Configuration. 1. TMSOP-8. Table 3 List of Pins. Figure 2
Model Line for this Datasheet
Text Version of Document
WAKE-UP TIMER IC PROGRAMMABLE WAKE-UP TIMER IC S-35710 Series
Rev.1.0_00

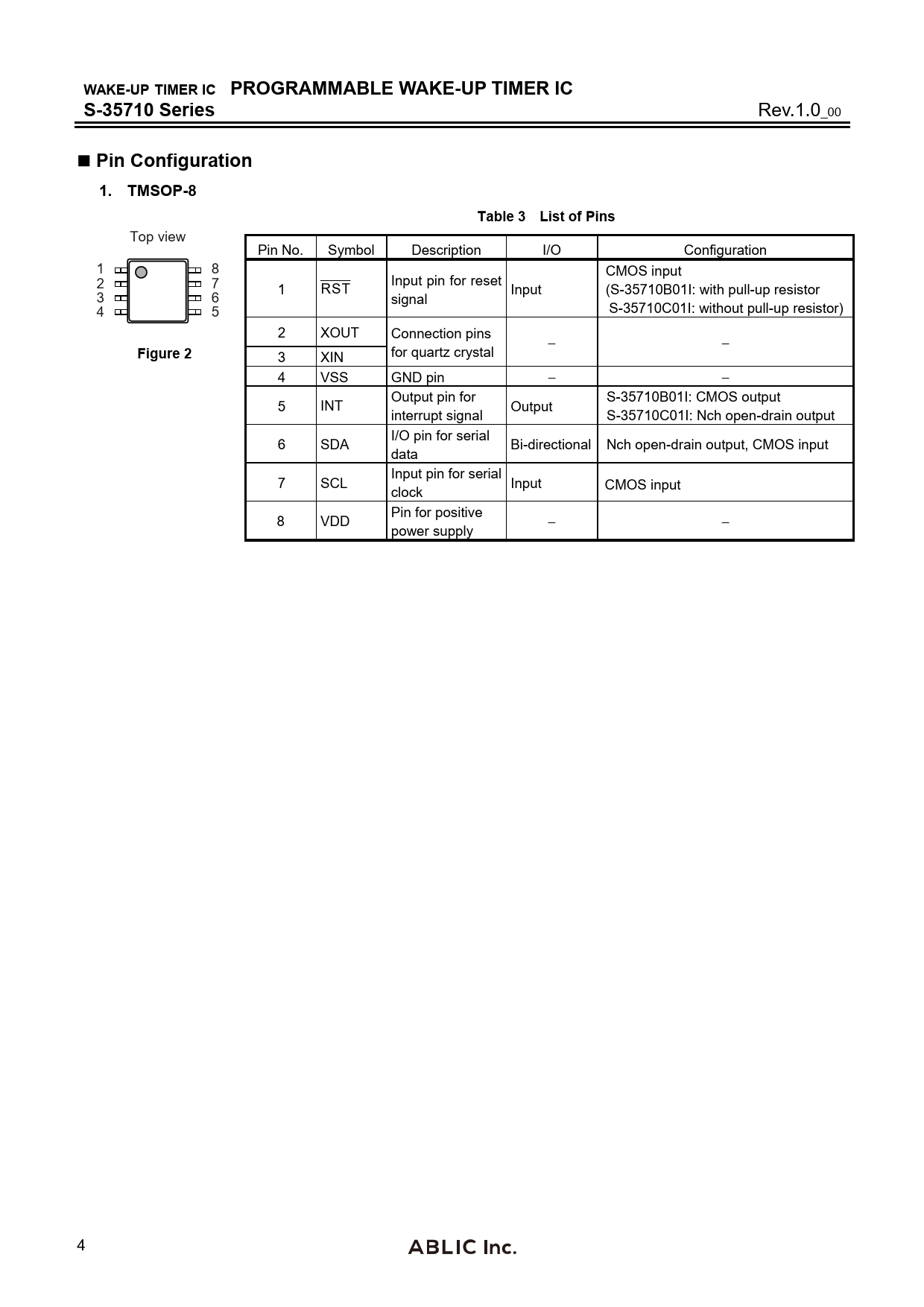

Pin Configuration 1. TMSOP-8 Table 3 List of Pins
Top view Pin No. Symbol Description I/O Configuration 1 8 CMOS input 2 7 _______ Input pin for reset 1 RST Input (S-35710B01I: with pull-up resistor 3 6 signal 4 5 S-35710C01I: without pull-up resistor) 2 XOUT Connection pins − −
Figure 2
for quartz crystal 3 XIN 4 VSS GND pin − − Output pin for S-35710B01I: CMOS output 5 INT Output interrupt signal S-35710C01I: Nch open-drain output I/O pin for serial 6 SDA Bi-directional Nch open-drain output, CMOS input data Input pin for serial 7 SCL Input CMOS input clock Pin for positive 8 VDD − − power supply 4
