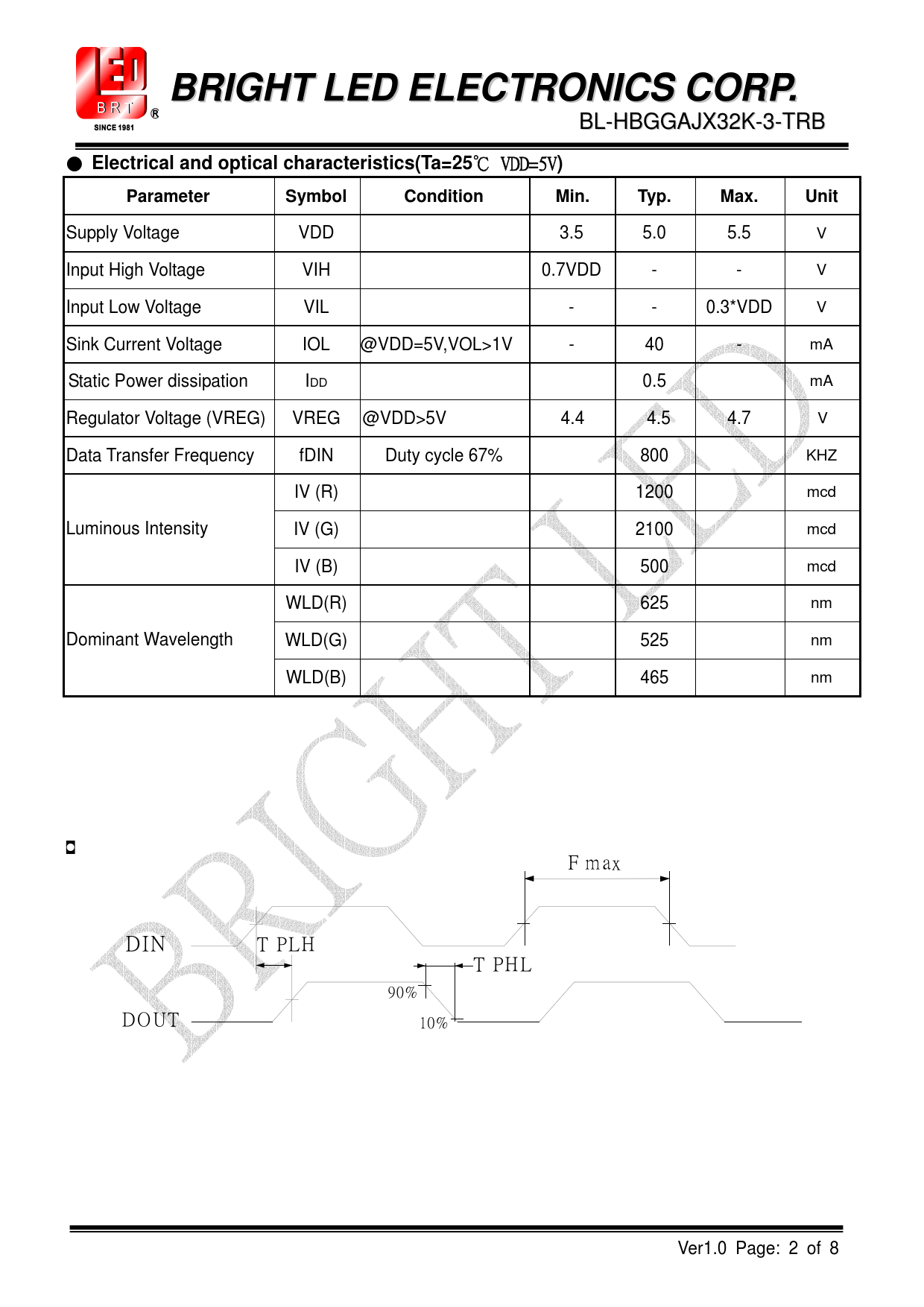

BRIGHT LED ELECTRONICS CORP.
BL-HBGGAJX32K-3-TRB ●
Electrical and optical characteristics(Ta=25
℃ VDD=5V
) Parameter Symbol Condition Min. Typ. Max. Unit
Supply Voltage VDD 3.5 5.0 5.5 V Input High Voltage VIH 0.7VDD - - V Input Low Voltage VIL - - 0.3*VDD V Sink Current Voltage IOL @VDD=5V,VOL>1V - 40 - mA Static Power dissipation IDD 0.5 mA Regulator Voltage (VREG) VREG @VDD>5V 4.4 4.5 4.7 V Data Transfer Frequency fDIN Duty cycle 67% 800 KHZ IV (R) 1200 mcd Luminous Intensity IV (G) 2100 mcd IV (B) 500 mcd WLD(R) 625 nm Dominant Wavelength WLD(G) 525 nm WLD(B) 465 nm F m ax D IN T PLH T PH L 90% D O U T 10% Ver1.0 Page: 2 of 8
BL-HBGGAJX32K-3-TRB ●
Electrical and optical characteristics(Ta=25
℃ VDD=5V
) Parameter Symbol Condition Min. Typ. Max. Unit
Supply Voltage VDD 3.5 5.0 5.5 V Input High Voltage VIH 0.7VDD - - V Input Low Voltage VIL - - 0.3*VDD V Sink Current Voltage IOL @VDD=5V,VOL>1V - 40 - mA Static Power dissipation IDD 0.5 mA Regulator Voltage (VREG) VREG @VDD>5V 4.4 4.5 4.7 V Data Transfer Frequency fDIN Duty cycle 67% 800 KHZ IV (R) 1200 mcd Luminous Intensity IV (G) 2100 mcd IV (B) 500 mcd WLD(R) 625 nm Dominant Wavelength WLD(G) 525 nm WLD(B) 465 nm F m ax D IN T PLH T PH L 90% D O U T 10% Ver1.0 Page: 2 of 8
