Datasheet Addendum XFP236625.000000I (IDT)
| Manufacturer | IDT |
| Description | 150fs Small Package Quartz-based PLL Oscillator |
| Pages / Page | 2 / 1 — 625.000000MHz Crystal. XFP236625.000000I. Oscillator. Datasheet Addendum. … |
| Revision | 20181207 |
| File Format / Size | PDF / 34 Kb |
| Document Language | English |

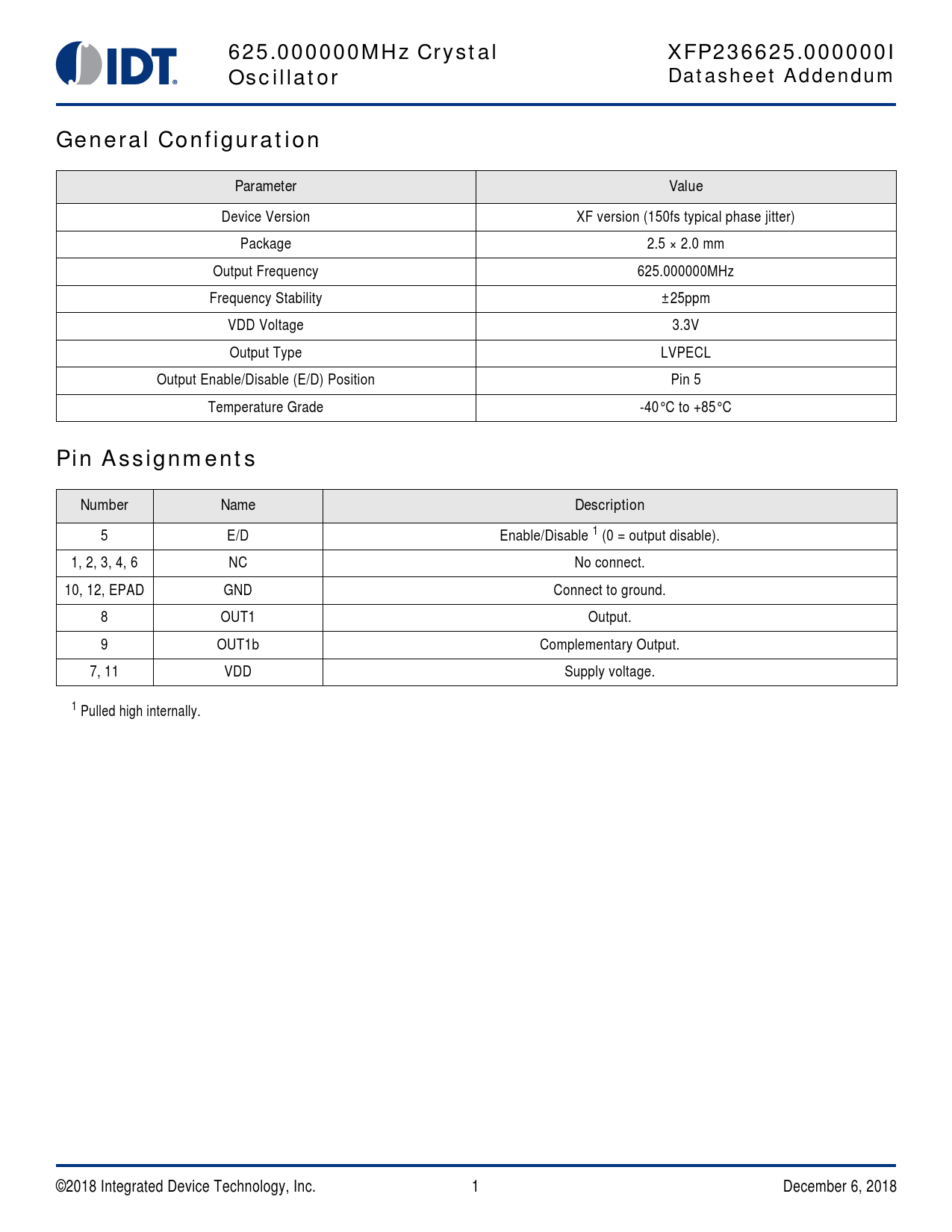

625.000000MHz Crystal. XFP236625.000000I. Oscillator. Datasheet Addendum. General Configuration. Parameter. Value. Pin Assignments
Model Line for this Datasheet
Text Version of Document
625.000000MHz Crystal XFP236625.000000I Oscillator Datasheet Addendum General Configuration Parameter Value
Device Version XF version (150fs typical phase jitter) Package 2.5 × 2.0 mm Output Frequency 625.000000MHz Frequency Stability ±25ppm VDD Voltage 3.3V Output Type LVPECL Output Enable/Disable (E/D) Position Pin 5 Temperature Grade -40°C to +85°C
Pin Assignments Number Name Description
5 E/D Enable/Disable 1 (0 = output disable). 1, 2, 3, 4, 6 NC No connect. 10, 12, EPAD GND Connect to ground. 8 OUT1 Output. 9 OUT1b Complementary Output. 7, 11 VDD Supply voltage. 1 Pulled high internally. ©2018 Integrated Device Technology, Inc. 1 December 6, 2018 Document Outline General Configuration Pin Assignments Revision History
Device Version XF version (150fs typical phase jitter) Package 2.5 × 2.0 mm Output Frequency 625.000000MHz Frequency Stability ±25ppm VDD Voltage 3.3V Output Type LVPECL Output Enable/Disable (E/D) Position Pin 5 Temperature Grade -40°C to +85°C
Pin Assignments Number Name Description
5 E/D Enable/Disable 1 (0 = output disable). 1, 2, 3, 4, 6 NC No connect. 10, 12, EPAD GND Connect to ground. 8 OUT1 Output. 9 OUT1b Complementary Output. 7, 11 VDD Supply voltage. 1 Pulled high internally. ©2018 Integrated Device Technology, Inc. 1 December 6, 2018 Document Outline General Configuration Pin Assignments Revision History
