Datasheet MA12040 (Infineon) - 10
| Manufacturer | Infineon |
| Description | 2x40W ultra power efficient, fully Integrated audio amplifier IC with analog input |
| Pages / Page | 86 / 10 — Note 1:. Note 2:. Note 3:. Table 7-2. Symbol. Parameter. Conditions. Min. … |
| Revision | 01_00 |
| File Format / Size | PDF / 1.7 Mb |
| Document Language | English |
Note 1:. Note 2:. Note 3:. Table 7-2. Symbol. Parameter. Conditions. Min. Typ. Max. Unit. www.infineon.com
Model Line for this Datasheet
Text Version of Document

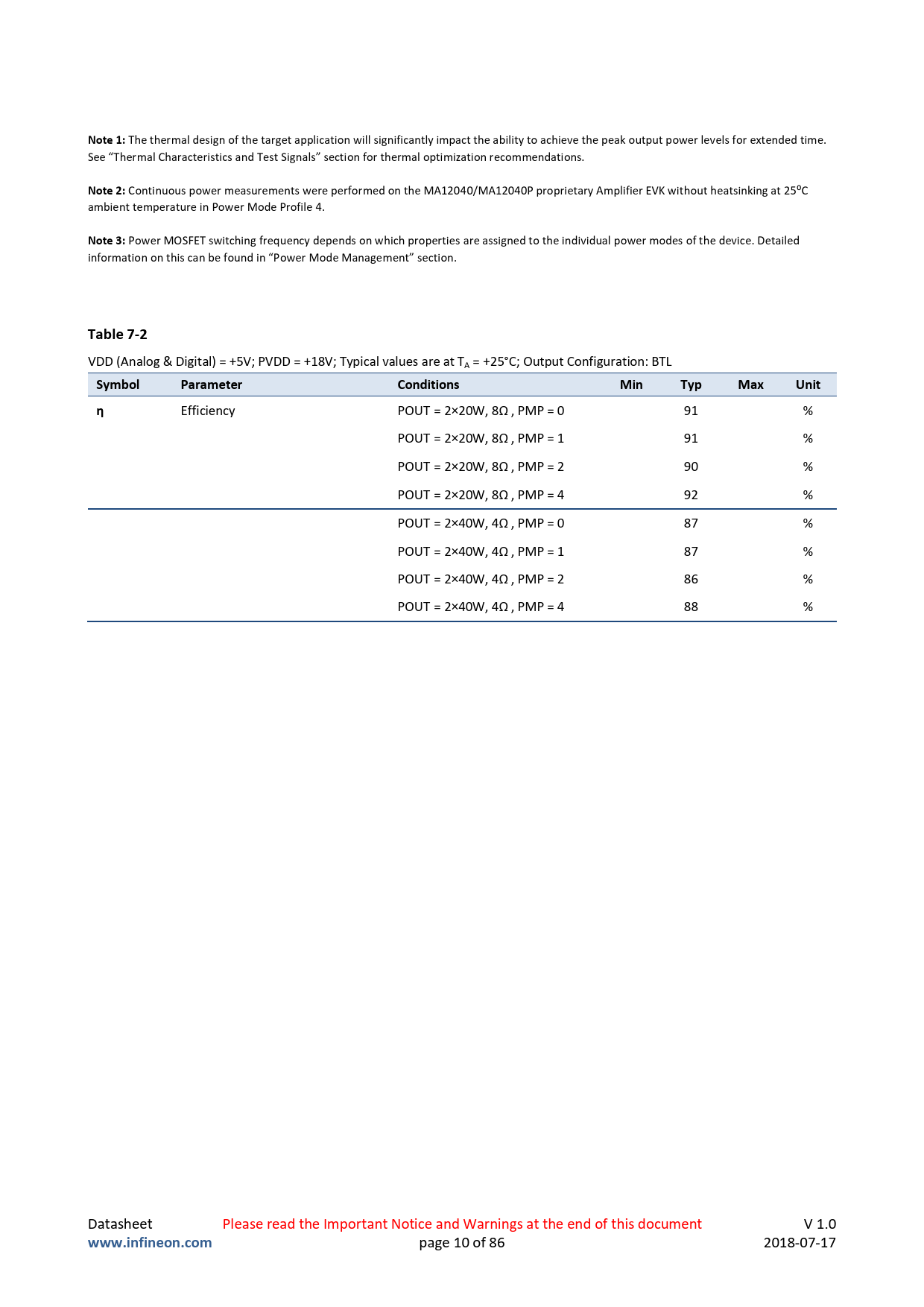

Note 1:
The thermal design of the target application will significantly impact the ability to achieve the peak output power levels for extended time. See “Thermal Characteristics and Test Signals” section for thermal optimization recommendations.
Note 2:
Continuous power measurements were performed on the MA12040/MA12040P proprietary Amplifier EVK without heatsinking at 25⁰C ambient temperature in Power Mode Profile 4.
Note 3:
Power MOSFET switching frequency depends on which properties are assigned to the individual power modes of the device. Detailed information on this can be found in “Power Mode Management” section.
Table 7-2
VDD (Analog & Digital) = +5V; PVDD = +18V; Typical values are at TA = +25°C; Output Configuration: BTL
Symbol Parameter Conditions Min Typ Max Unit η
Efficiency POUT = 2×20W, 8Ω , PMP = 0 91 % POUT = 2×20W, 8Ω , PMP = 1 91 % POUT = 2×20W, 8Ω , PMP = 2 90 % POUT = 2×20W, 8Ω , PMP = 4 92 % POUT = 2×40W, 4Ω , PMP = 0 87 % POUT = 2×40W, 4Ω , PMP = 1 87 % POUT = 2×40W, 4Ω , PMP = 2 86 % POUT = 2×40W, 4Ω , PMP = 4 88 % Datasheet Please read the Important Notice and Warnings at the end of this document V 1.0
www.infineon.com
page 10 of 86 2018-07-17
