Datasheet MA12040P (Infineon) - 10
| Manufacturer | Infineon |
| Description | 2x40W ultra power efficient, fully integrated audio amplifier IC with I2S digital input |
| Pages / Page | 88 / 10 — Table 7-2. Symbol. Parameter. Conditions. Min. Typ. Max. Unit. … |
| Revision | 01_00 |
| File Format / Size | PDF / 1.8 Mb |
| Document Language | English |
Table 7-2. Symbol. Parameter. Conditions. Min. Typ. Max. Unit. www.infineon.com
Model Line for this Datasheet
Text Version of Document

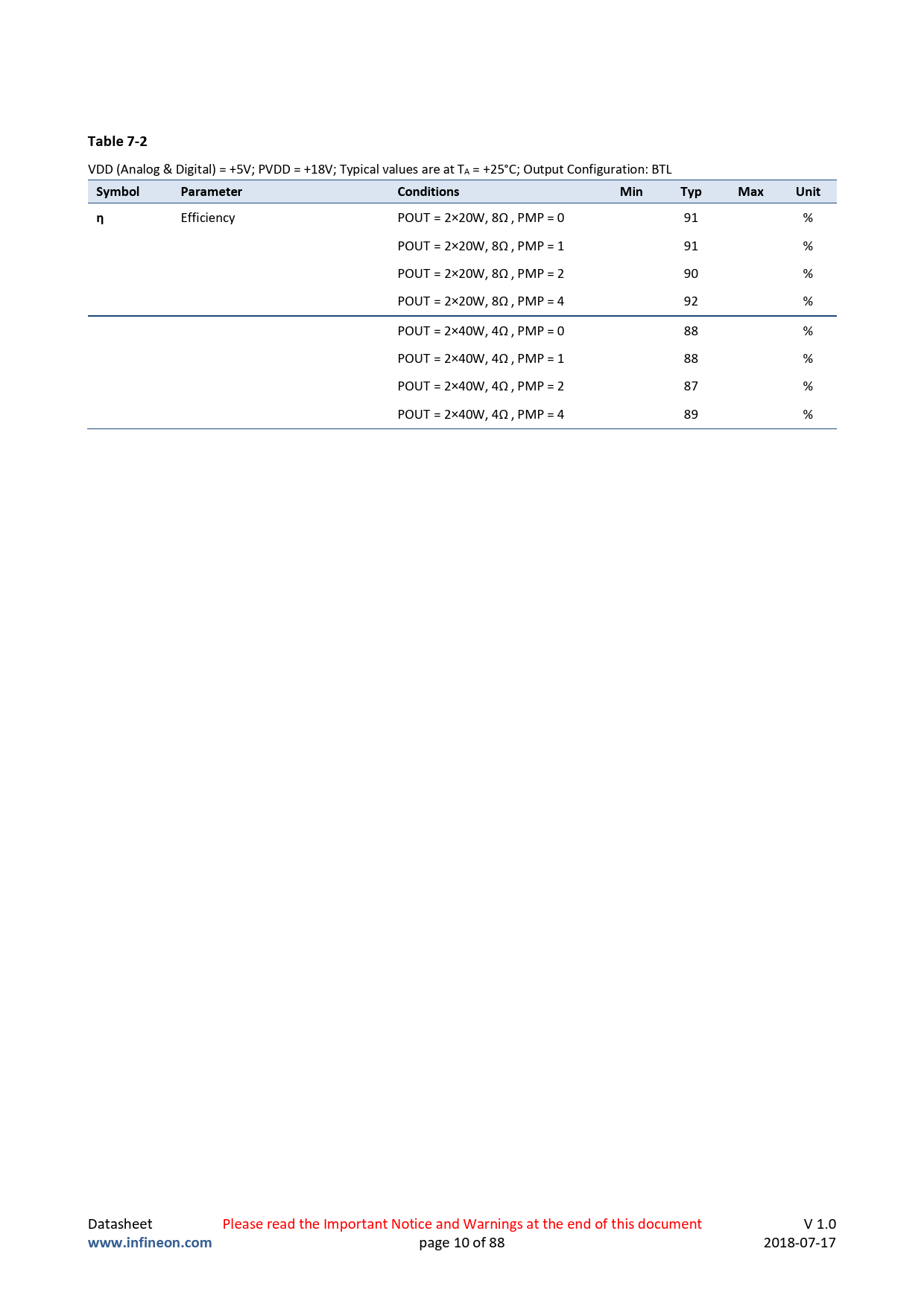

Table 7-2
VDD (Analog & Digital) = +5V; PVDD = +18V; Typical values are at TA = +25°C; Output Configuration: BTL
Symbol Parameter Conditions Min Typ Max Unit η
Efficiency POUT = 2×20W, 8Ω , PMP = 0 91 % POUT = 2×20W, 8Ω , PMP = 1 91 % POUT = 2×20W, 8Ω , PMP = 2 90 % POUT = 2×20W, 8Ω , PMP = 4 92 % POUT = 2×40W, 4Ω , PMP = 0 88 % POUT = 2×40W, 4Ω , PMP = 1 88 % POUT = 2×40W, 4Ω , PMP = 2 87 % POUT = 2×40W, 4Ω , PMP = 4 89 % Datasheet Please read the Important Notice and Warnings at the end of this document V 1.0
www.infineon.com
page 10 of 88 2018-07-17
VDD (Analog & Digital) = +5V; PVDD = +18V; Typical values are at TA = +25°C; Output Configuration: BTL
Symbol Parameter Conditions Min Typ Max Unit η
Efficiency POUT = 2×20W, 8Ω , PMP = 0 91 % POUT = 2×20W, 8Ω , PMP = 1 91 % POUT = 2×20W, 8Ω , PMP = 2 90 % POUT = 2×20W, 8Ω , PMP = 4 92 % POUT = 2×40W, 4Ω , PMP = 0 88 % POUT = 2×40W, 4Ω , PMP = 1 88 % POUT = 2×40W, 4Ω , PMP = 2 87 % POUT = 2×40W, 4Ω , PMP = 4 89 % Datasheet Please read the Important Notice and Warnings at the end of this document V 1.0
www.infineon.com
page 10 of 88 2018-07-17
