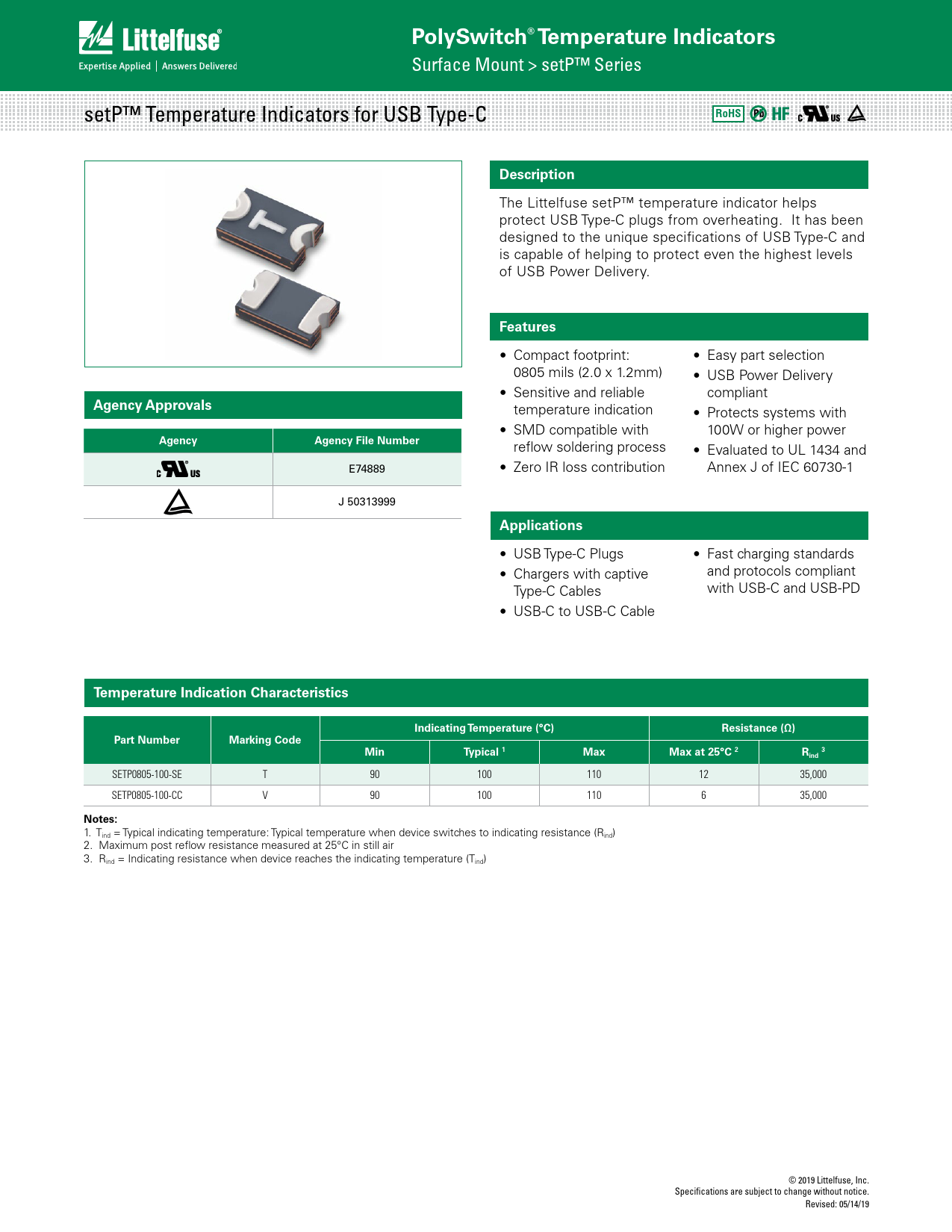

PolySwitch® Temperature Indicators
Surface Mount > setP™ Series setP™ Temperature Indicators for USB Type-C
RoHS Description
The Littelfuse setP™ temperature indicator helps protect USB Type-C plugs from overheating. It has been designed to the unique specifications of USB Type-C and is capable of helping to protect even the highest levels of USB Power Delivery.
Features
• Compact footprint: • Easy part selection 0805 mils (2.0 x 1.2mm) • USB Power Delivery • Sensitive and reliable compliant
Agency Approvals
temperature indication • Protects systems with • SMD compatible with 100W or higher power
Agency Agency File Number
reflow soldering process • Evaluated to UL 1434 and E74889 • Zero IR loss contribution Annex J of IEC 60730-1 J 50313999
Applications
• USB Type-C Plugs • Fast charging standards • Chargers with captive and protocols compliant Type-C Cables with USB-C and USB-PD • USB-C to USB-C Cable
Temperature Indication Characteristics Indicating Temperature (°C) Resistance (Ω) Part Number Marking Code Min Typical 1 Max Max at 25°C 2 Rind 3
SETP0805-100-SE T 90 100 110 12 35,000 SETP0805-100-CC V 90 100 110 6 35,000
Notes:
1. Tind = Typical indicating temperature: Typical temperature when device switches to indicating resistance (Rind) 2. Maximum post reflow resistance measured at 25°C in still air 3. Rind = Indicating resistance when device reaches the indicating temperature (Tind) © 2019 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 05/14/19
