Datasheet ADuM4122 (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | Single Gate, Adjustable Slew Rate, Isolated Gate Driver, 3 A Short-Circuit ( |
| Pages / Page | 18 / 6 — ADuM4122. Data Sheet. 1.8. 1.6. 1.4. (W R. 1.2. E W O P. 1.0. G IN. 0.8. … |
| File Format / Size | PDF / 641 Kb |
| Document Language | English |
ADuM4122. Data Sheet. 1.8. 1.6. 1.4. (W R. 1.2. E W O P. 1.0. G IN. 0.8. IT IM L. 0.6. E F A S. 0.4. 0.2. 100. 150. 200. AMBIENT TEMPERATURE (ºC)
Model Line for this Datasheet
Text Version of Document
ADuM4122 Data Sheet 1.8 1.6 ) 1.4 (W R 1.2 E W O P 1.0 G IN 0.8 IT IM L 0.6 E F A S 0.4 0.2 0 0 50 100 150 200
002
AMBIENT TEMPERATURE (ºC)

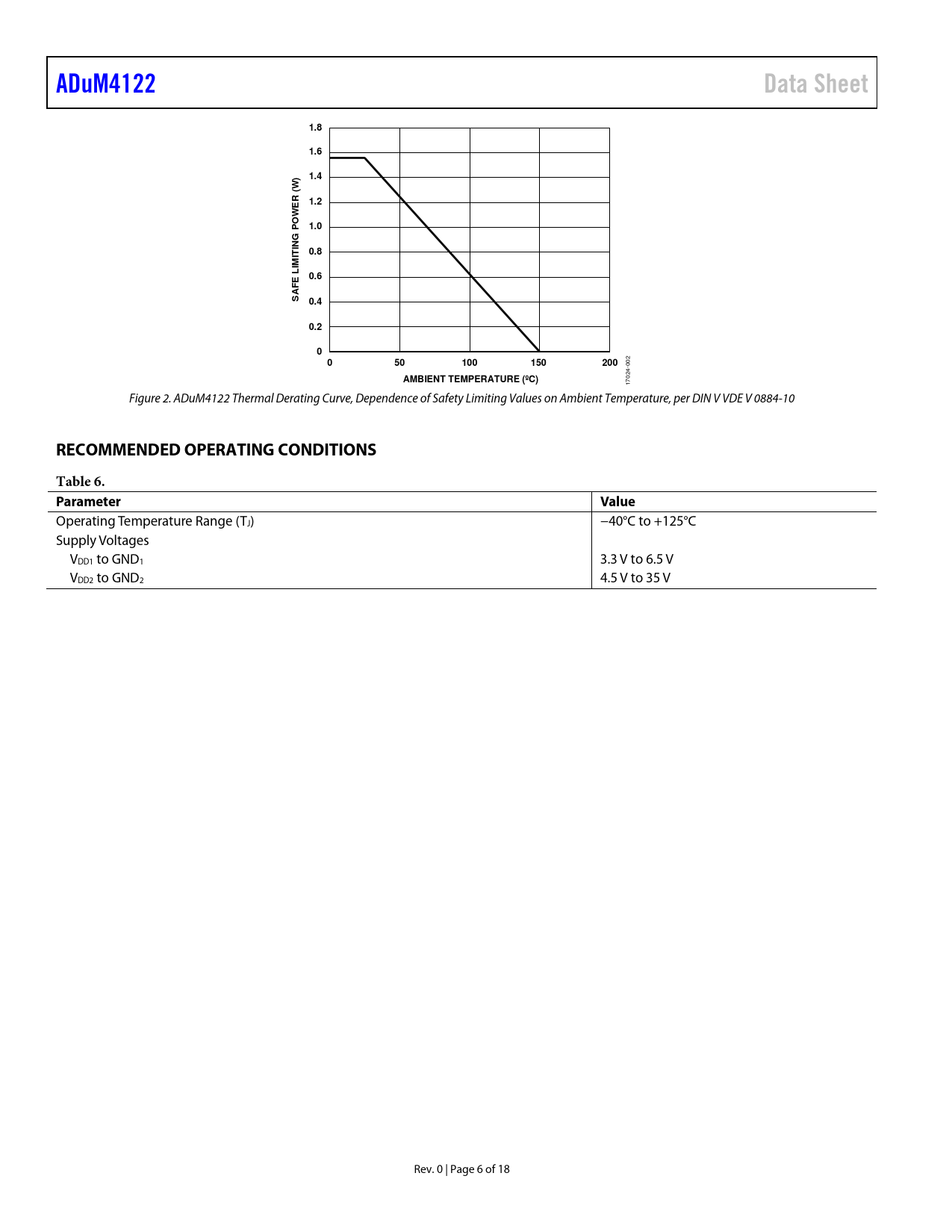

17024- Figure 2. ADuM4122 Thermal Derating Curve, Dependence of Safety Limiting Values on Ambient Temperature, per DIN V VDE V 0884-10
RECOMMENDED OPERATING CONDITIONS Table 6. Parameter Value
Operating Temperature Range (TJ) −40°C to +125°C Supply Voltages VDD1 to GND1 3.3 V to 6.5 V VDD2 to GND2 4.5 V to 35 V Rev. 0 | Page 6 of 18 Document Outline Features Applications General Description Functional Block Diagram Revision History Specifications Electrical Specifications Regulatory Information Package Specifications Insulation and Safety Specifications DIN V VDE V 0884-10 (VDE V 0884-10) Insulation Characteristics Recommended Operating Conditions Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Truth Table Typical Performance Characteristics Theory of Operation Applications Information PCB Layout Slew Rate Control Propagation Delay-Related Parameters Peak Current Rating Undervoltage Lockout Output Load Characteristics Power Dissipation Insulation Lifetime Typical Applications Outline Dimensions Ordering Guide
