Datasheet TB67H450FNG (Toshiba) - 4
| Manufacturer | Toshiba |
| Description | Capable of constant current controlling (PWM) / CW/CCW/Short Brake/Stop modes / Standby function. Brush motor driver IC |
| Pages / Page | 20 / 4 — Pin Description |
| File Format / Size | PDF / 505 Kb |
| Document Language | English |
Pin Description
Model Line for this Datasheet
Text Version of Document
TB67H450FNG
Pin Description

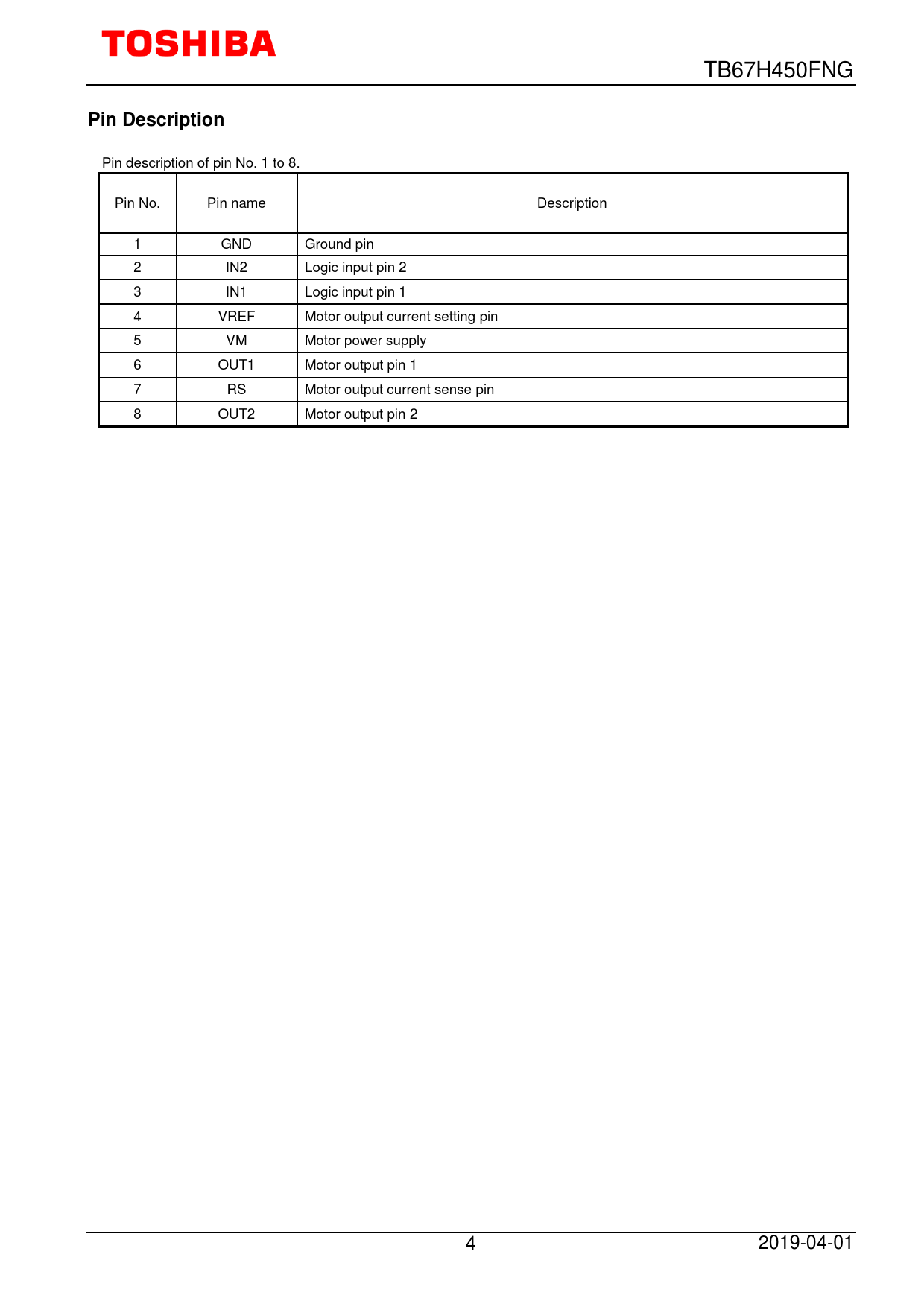

Pin description of pin No. 1 to 8. Pin No. Pin name Description 1 GND Ground pin 2 IN2 Logic input pin 2 3 IN1 Logic input pin 1 4 VREF Motor output current setting pin 5 VM Motor power supply 6 OUT1 Motor output pin 1 7 RS Motor output current sense pin 8 OUT2 Motor output pin 2 4 2019-04-01
