Datasheet A3955 (Allegro) - 7

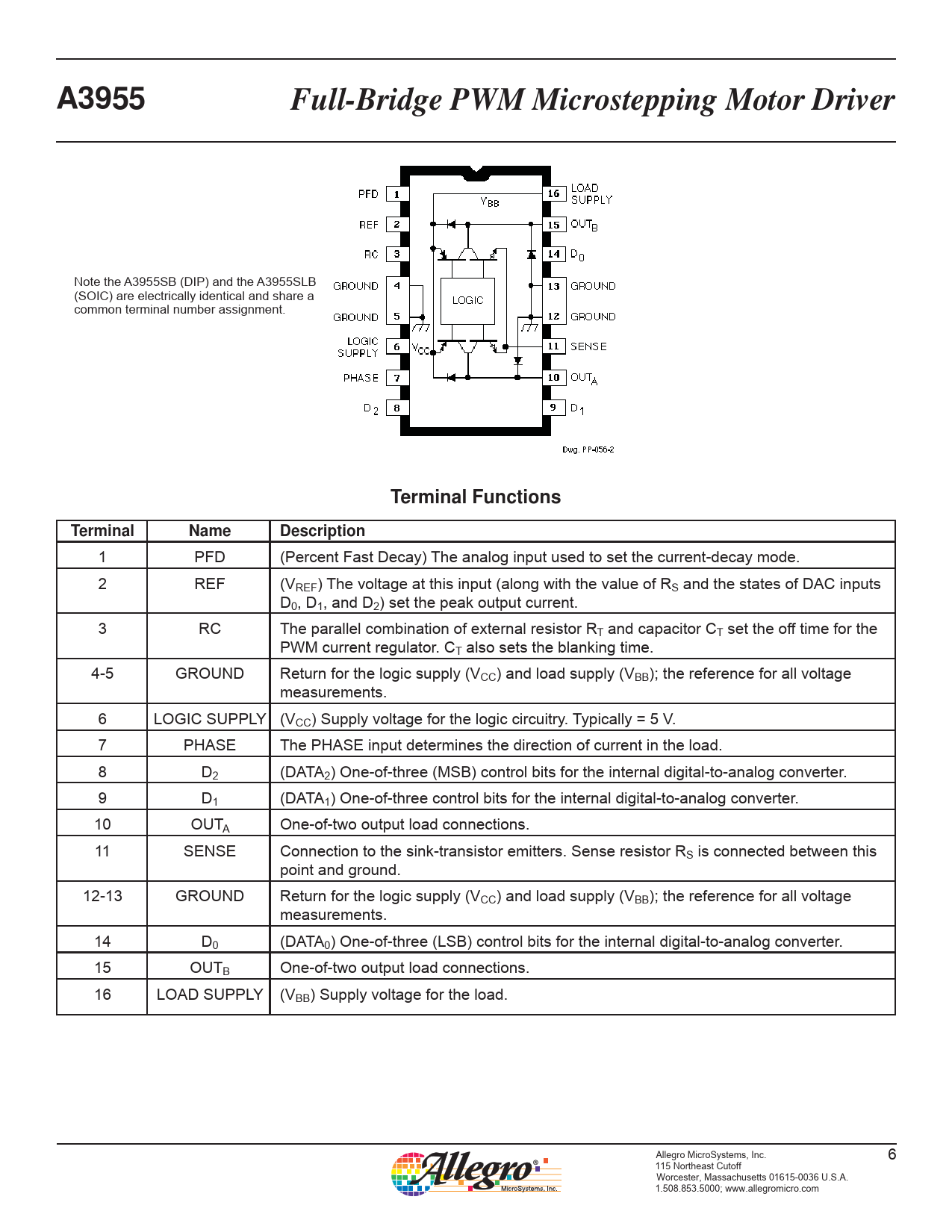

A3955 Full-Bridge PWM Microstepping Motor Driver
Note the A3955SB (DIP) and the A3955SLB (SOIC) are electrically identical and share a common terminal number assignment.
Terminal Functions Terminal Name Description
1 PFD (Percent Fast Decay) The analog input used to set the current-decay mode. 2 REF (VREF) The voltage at this input (along with the value of RS and the states of DAC inputs D0, D1, and D2) set the peak output current. 3 RC The parallel combination of external resistor RT and capacitor CT set the off time for the PWM current regulator. CT also sets the blanking time. 4-5 GROUND Return for the logic supply (VCC) and load supply (VBB); the reference for all voltage measurements. 6 LOGIC SUPPLY (VCC) Supply voltage for the logic circuitry. Typically = 5 V. 7 PHASE The PHASE input determines the direction of current in the load. 8 D2 (DATA2) One-of-three (MSB) control bits for the internal digital-to-analog converter. 9 D1 (DATA1) One-of-three control bits for the internal digital-to-analog converter. 10 OUTA One-of-two output load connections. 11 SENSE Connection to the sink-transistor emitters. Sense resistor RS is connected between this point and ground. 12-13 GROUND Return for the logic supply (VCC) and load supply (VBB); the reference for all voltage measurements. 14 D0 (DATA0) One-of-three (LSB) control bits for the internal digital-to-analog converter. 15 OUTB One-of-two output load connections. 16 LOAD SUPPLY (VBB) Supply voltage for the load. Allegro MicroSystems, Inc. 6 115 Northeast Cutoff Worcester, Massachusetts 01615-0036 U.S.A. 1.508.853.5000; www.allegromicro.com
