Datasheet ADN2805 (Analog Devices)
| Manufacturer | Analog Devices |
| Description | 1.25 Gbps Clock and Data Recovery IC |
| Pages / Page | 16 / 1 — 1.25 Gbps Clock and Data Recovery IC. Data Sheet. ADN2805. FEATURES. … |
| Revision | B |
| File Format / Size | PDF / 293 Kb |
| Document Language | English |

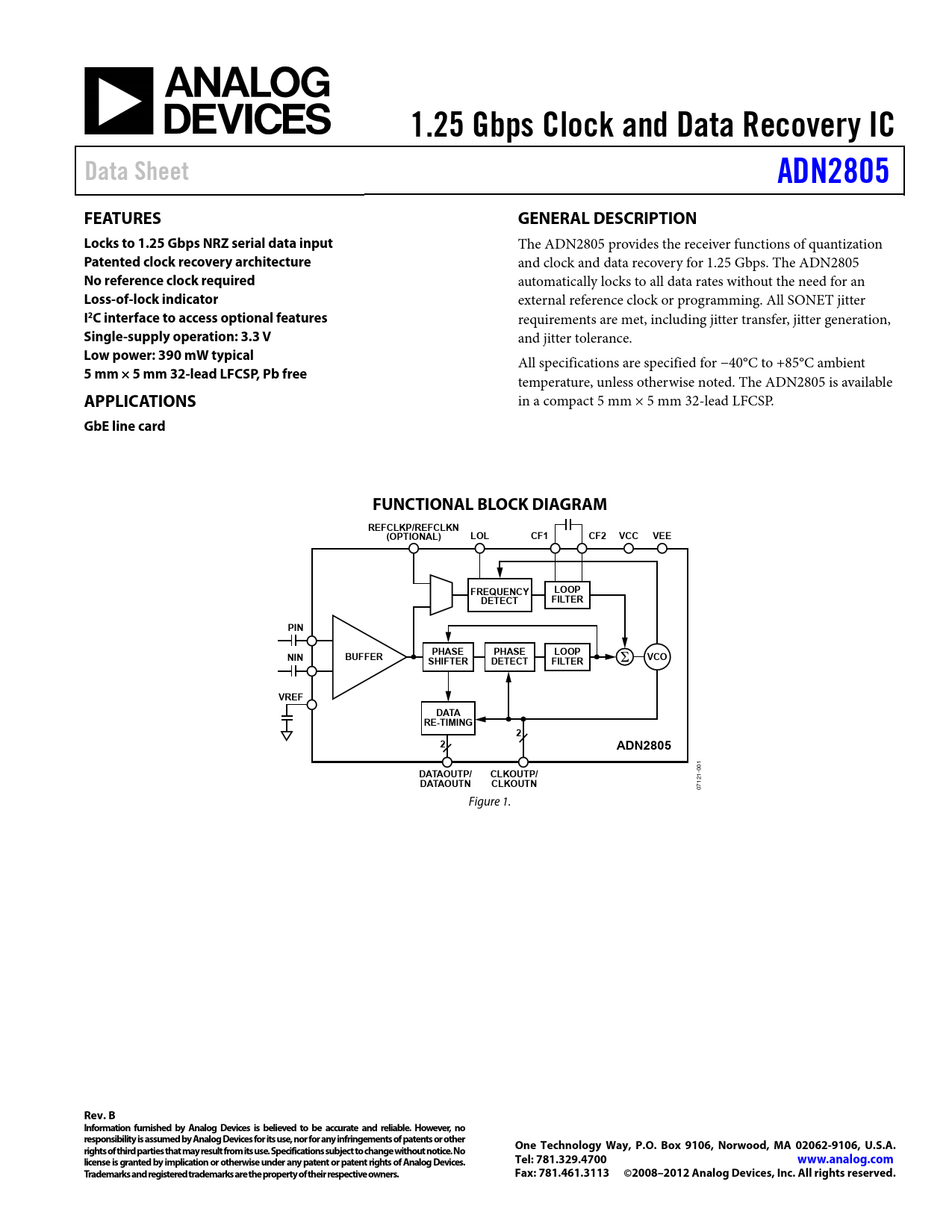

1.25 Gbps Clock and Data Recovery IC. Data Sheet. ADN2805. FEATURES. GENERAL DESCRIPTION
Model Line for this Datasheet
Text Version of Document
1.25 Gbps Clock and Data Recovery IC Data Sheet ADN2805 FEATURES GENERAL DESCRIPTION Locks to 1.25 Gbps NRZ serial data input
The ADN2805 provides the receiver functions of quantization
Patented clock recovery architecture
and clock and data recovery for 1.25 Gbps. The ADN2805
No reference clock required
automatically locks to all data rates without the need for an
Loss-of-lock indicator
external reference clock or programming. All SONET jitter
I2C interface to access optional features
requirements are met, including jitter transfer, jitter generation,
Single-supply operation: 3.3 V
and jitter tolerance.
Low power: 390 mW typical
All specifications are specified for −40°C to +85°C ambient
5 mm × 5 mm 32-lead LFCSP, Pb free
temperature, unless otherwise noted. The ADN2805 is available
APPLICATIONS
in a compact 5 mm × 5 mm 32-lead LFCSP.
GbE line card FUNCTIONAL BLOCK DIAGRAM REFCLKP/REFCLKN (OPTIONAL) LOL CF1 CF2 VCC VEE FREQUENCY LOOP DETECT FILTER PIN PHASE PHASE LOOP NIN BUFFER VCO SHIFTER DETECT FILTER VREF DATA RE-TIMING 2 2 ADN2805
01
DATAOUTP/ CLKOUTP/
0 1-
DATAOUTN CLKOUTN
12 07 Figure 1.
Rev. B Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 www.analog.com Trademarks and registered trademarks are the property of their respective owners. Fax: 781.461.3113 ©2008–2012 Analog Devices, Inc. All rights reserved.
