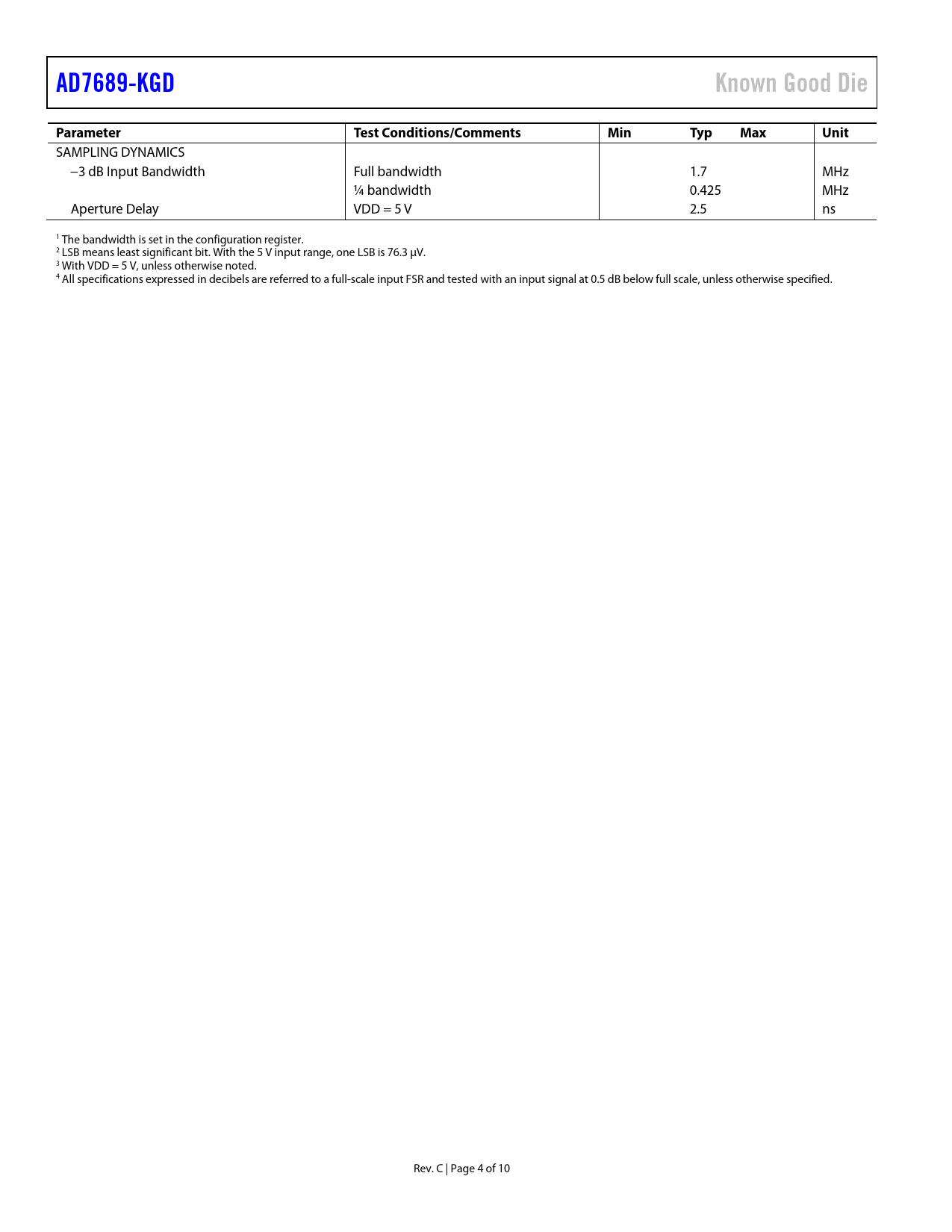

Datasheet AD7689-KGD (Analog Devices) - 4

AD7689-KGD Known Good Die Parameter Test Conditions/Comments Min Typ Max Unit
SAMPLING DYNAMICS −3 dB Input Bandwidth Full bandwidth 1.7 MHz ¼ bandwidth 0.425 MHz Aperture Delay VDD = 5 V 2.5 ns 1 The bandwidth is set in the configuration register. 2 LSB means least significant bit. With the 5 V input range, one LSB is 76.3 µV. 3 With VDD = 5 V, unless otherwise noted. 4 All specifications expressed in decibels are referred to a full-scale input FSR and tested with an input signal at 0.5 dB below full scale, unless otherwise specified. Rev. C | Page 4 of 10 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS TIMING SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS OUTLINE DIMENSIONS DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS ORDERING GUIDE
