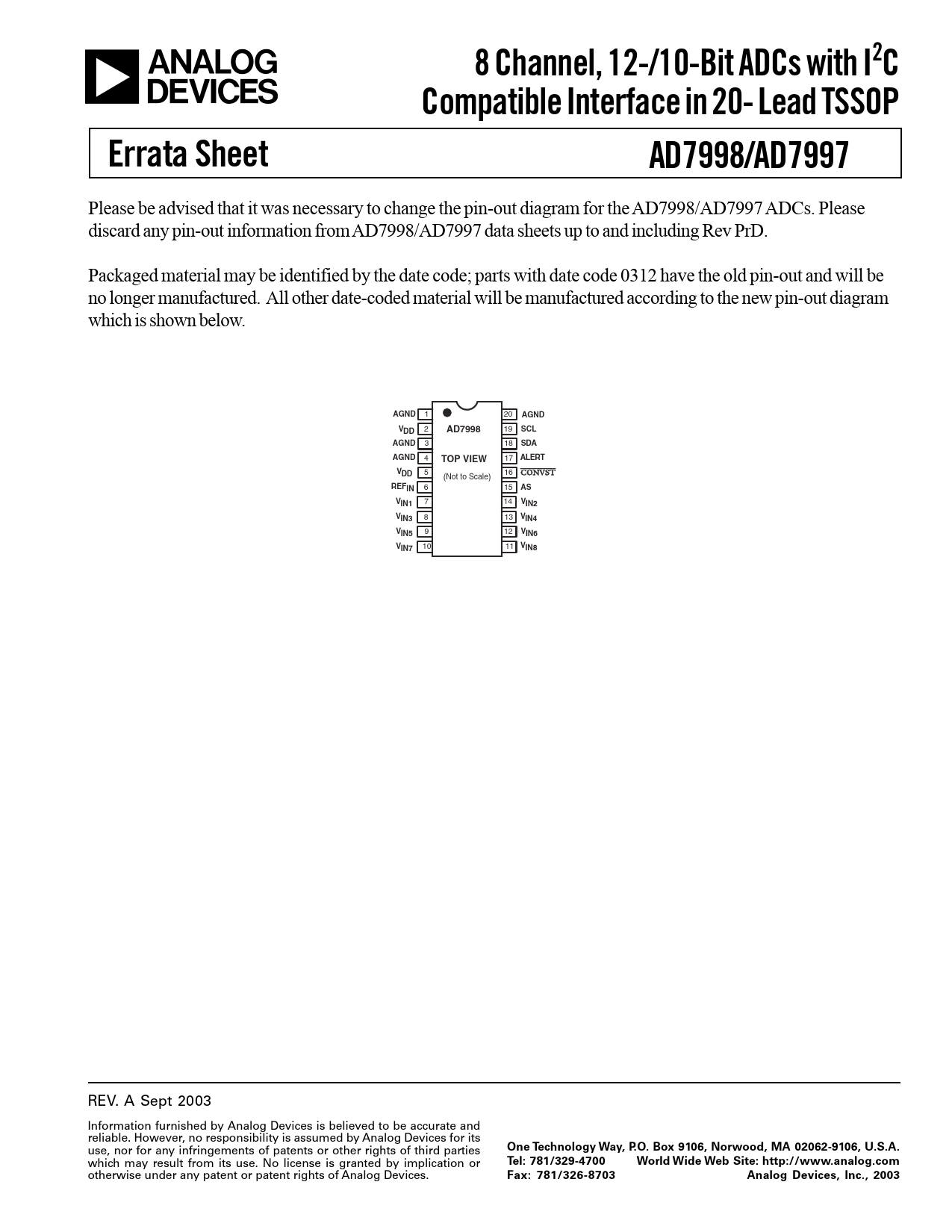

a 8 Channel, 12-/10-Bit ADCs with I2CCompatible Interface in 20- Lead TSSOPErrata SheetAD7998/AD7997 Please be advised that it was necessary to change the pin-out diagram for the AD7998/AD7997 ADCs. Please discard any pin-out information from AD7998/AD7997 data sheets up to and including Rev PrD. Packaged material may be identified by the date code; parts with date code 0312 have the old pin-out and will be no longer manufactured. All other date-coded material will be manufactured according to the new pin-out diagram which is shown below. AGND 1 20 AGNDV 2 DDAD7998 19 SCLAGND 3 18 SDAAGND 4 TOP VIEW 17 ALERTVDD 5 16 CONVST (Not to Scale) REF 15 ASIN 6 V 14 VIN1 7 IN2V 13 VIN3 8 IN4VIN5 9 12 VIN6VIN7 10 11 VIN8 REV. A Sept 2003 Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. which may result from its use. No license is granted by implication or Tel: 781/329-4700World Wide Web Site: http://www.analog.com otherwise under any patent or patent rights of Analog Devices. Fax: 781/326-8703 Analog Devices, Inc., 2003
