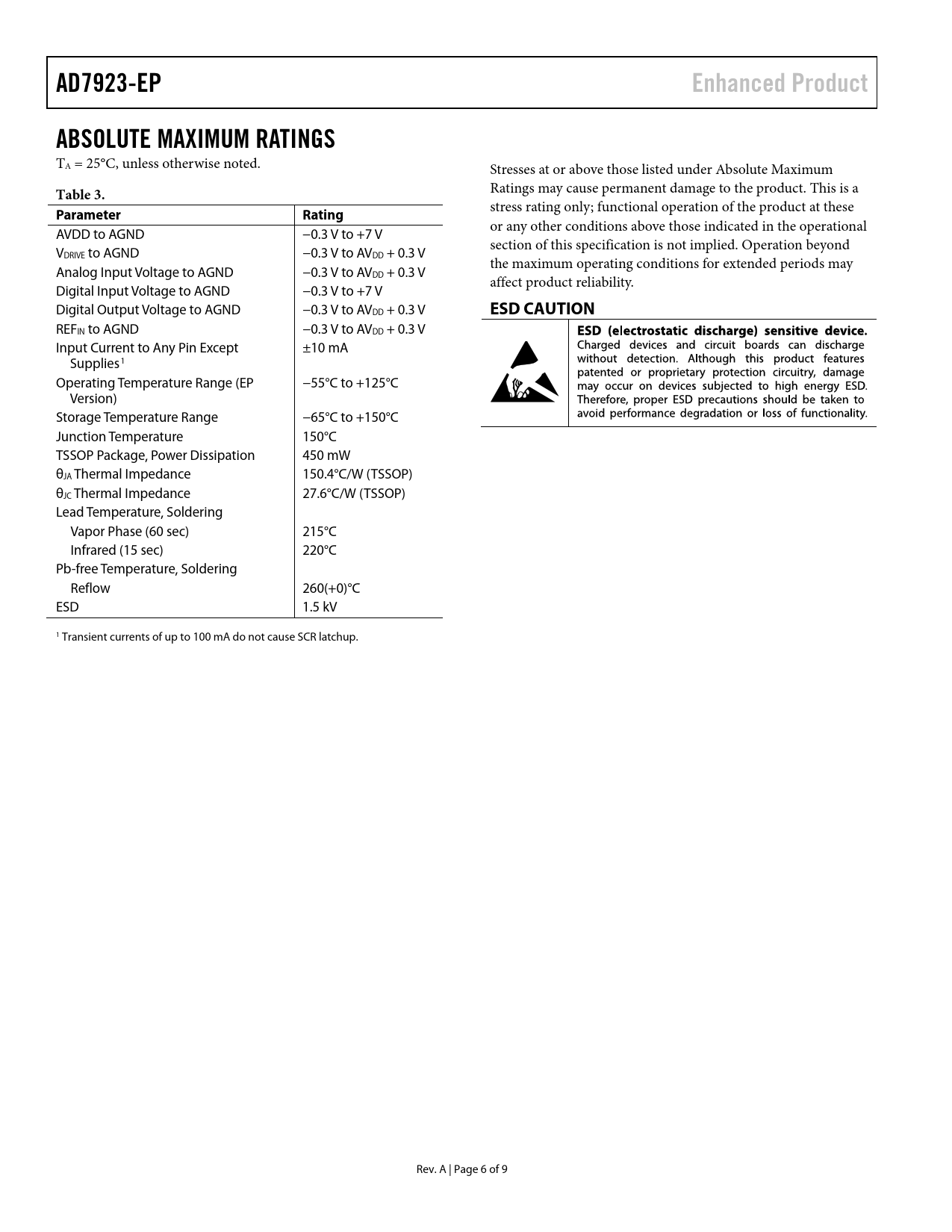

AD7923-EP. Enhanced Product. ABSOLUTE MAXIMUM RATINGS. Table 3. Parameter. Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
AD7923-EP Enhanced Product ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted. Stresses at or above those listed under Absolute Maximum
Table 3.
Ratings may cause permanent damage to the product. This is a
Parameter Rating
stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational AVDD to AGND −0.3 V to +7 V section of this specification is not implied. Operation beyond VDRIVE to AGND −0.3 V to AVDD + 0.3 V the maximum operating conditions for extended periods may Analog Input Voltage to AGND −0.3 V to AVDD + 0.3 V affect product reliability. Digital Input Voltage to AGND −0.3 V to +7 V Digital Output Voltage to AGND −0.3 V to AVDD + 0.3 V
ESD CAUTION
REFIN to AGND −0.3 V to AVDD + 0.3 V Input Current to Any Pin Except ±10 mA Supplies1 Operating Temperature Range (EP −55°C to +125°C Version) Storage Temperature Range −65°C to +150°C Junction Temperature 150°C TSSOP Package, Power Dissipation 450 mW θJA Thermal Impedance 150.4°C/W (TSSOP) θJC Thermal Impedance 27.6°C/W (TSSOP) Lead Temperature, Soldering Vapor Phase (60 sec) 215°C Infrared (15 sec) 220°C Pb-free Temperature, Soldering Reflow 260(+0)°C ESD 1.5 kV 1 Transient currents of up to 100 mA do not cause SCR latchup. Rev. A | Page 6 of 9 Document Outline Features Enhanced Product Features Applications General Description Functional Block Diagram Product Highlights Table of Contents Revision History Specifications Timing Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Description Typical Performance Characteristics Outline Dimensions Ordering Guide
