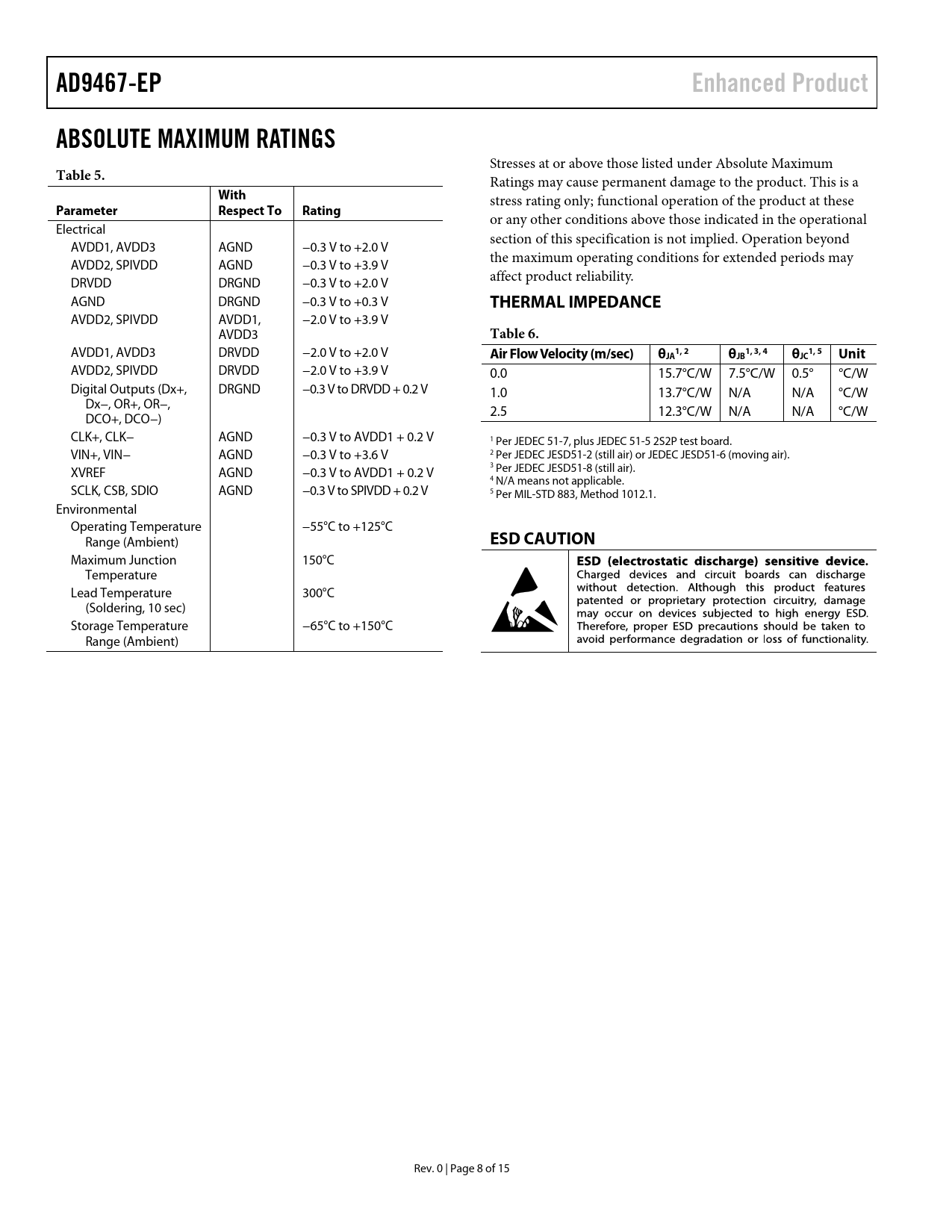

AD9467-EP. Enhanced Product. ABSOLUTE MAXIMUM RATINGS. Table 5. With. Parameter. Respect To. Rating. THERMAL IMPEDANCE. Table 6
Model Line for this Datasheet
Text Version of Document
AD9467-EP Enhanced Product ABSOLUTE MAXIMUM RATINGS
Stresses at or above those listed under Absolute Maximum
Table 5.
Ratings may cause permanent damage to the product. This is a
With
stress rating only; functional operation of the product at these
Parameter Respect To Rating
or any other conditions above those indicated in the operational Electrical section of this specification is not implied. Operation beyond AVDD1, AVDD3 AGND −0.3 V to +2.0 V the maximum operating conditions for extended periods may AVDD2, SPIVDD AGND −0.3 V to +3.9 V DRVDD DRGND −0.3 V to +2.0 V affect product reliability. AGND DRGND −0.3 V to +0.3 V
THERMAL IMPEDANCE
AVDD2, SPIVDD AVDD1, −2.0 V to +3.9 V AVDD3
Table 6.
AVDD1, AVDD3 DRVDD −2.0 V to +2.0 V
Air Flow Velocity (m/sec) θ 1, 2 1, 3, 4 1, 5 JA θJB θJC Unit
AVDD2, SPIVDD DRVDD −2.0 V to +3.9 V 0.0 15.7°C/W 7.5°C/W 0.5° °C/W Digital Outputs (Dx+, DRGND −0.3 V to DRVDD + 0.2 V 1.0 13.7°C/W N/A N/A °C/W Dx−, OR+, OR−, DCO+, DCO−) 2.5 12.3°C/W N/A N/A °C/W CLK+, CLK− AGND −0.3 V to AVDD1 + 0.2 V 1 Per JEDEC 51-7, plus JEDEC 51-5 2S2P test board. VIN+, VIN− AGND −0.3 V to +3.6 V 2 Per JEDEC JESD51-2 (still air) or JEDEC JESD51-6 (moving air). 3 XVREF AGND −0.3 V to AVDD1 + 0.2 V Per JEDEC JESD51-8 (still air). 4 N/A means not applicable. SCLK, CSB, SDIO AGND −0.3 V to SPIVDD + 0.2 V 5 Per MIL-STD 883, Method 1012.1. Environmental Operating Temperature −55°C to +125°C Range (Ambient)
ESD CAUTION
Maximum Junction 150°C Temperature Lead Temperature 300°C (Soldering, 10 sec) Storage Temperature −65°C to +150°C Range (Ambient) Rev. 0 | Page 8 of 15 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS REVISION HISTORY SPECIFICATIONS AC SPECIFICATIONS DIGITAL SPECIFICATIONS SWITCHING SPECIFICATIONS Timing Diagrams ABSOLUTE MAXIMUM RATINGS THERMAL IMPEDANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
