Datasheet RH1021-5 (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | Precision 5V Reference |
| Pages / Page | 6 / 6 — TYPICAL PERFORMANCE CHARACTERISTICS. Output Voltage. Load Regulation … |
| Revision | F |
| File Format / Size | PDF / 604 Kb |
| Document Language | English |
TYPICAL PERFORMANCE CHARACTERISTICS. Output Voltage. Load Regulation (Sinking). Load Regulation (Sourcing). Line Regulation
Model Line for this Datasheet
Text Version of Document
RH1021-5

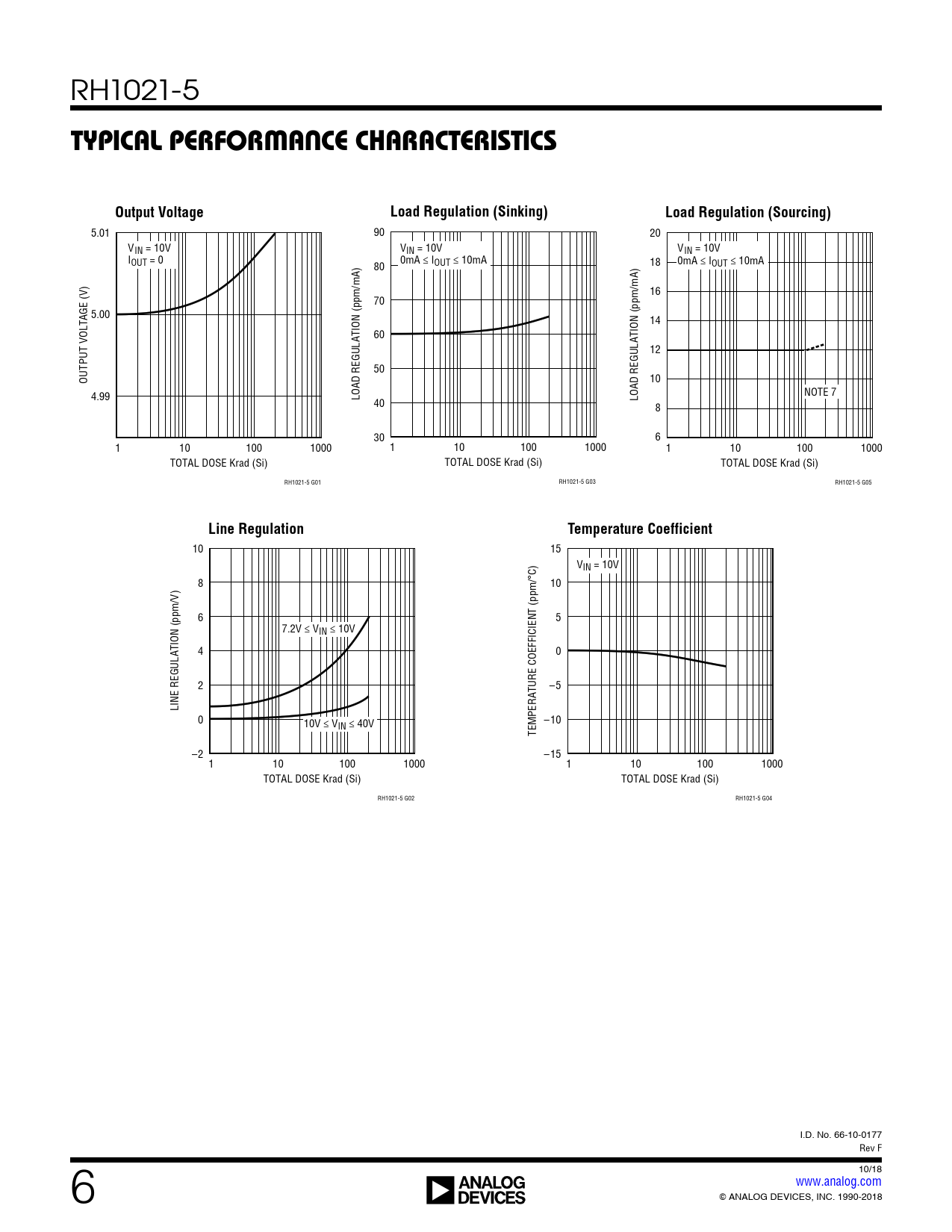

TYPICAL PERFORMANCE CHARACTERISTICS Output Voltage Load Regulation (Sinking) Load Regulation (Sourcing)
5.01 90 20 VIN = 10V VIN = 10V VIN = 10V IOUT = 0 80 0mA ≤ IOUT ≤ 10mA 18 0mA ≤ IOUT ≤ 10mA 16 70 5.00 14 60 12 50 OUTPUT VOLTAGE (V) 10 4.99 LOAD REGULATION (ppm/mA) NOTE 7 40 LOAD REGULATION (ppm/mA) 8 30 6 1 10 100 1000 1 10 100 1000 1 10 100 1000 TOTAL DOSE Krad (Si) TOTAL DOSE Krad (Si) TOTAL DOSE Krad (Si) RH1021-5 G01 RH1021-5 G03 RH1021-5 G05
Line Regulation Temperature Coefficient
10 15 VIN = 10V 8 10 6 5 7.2V ≤ VIN ≤ 10V 4 0 2 –5 LINE REGULATION (ppm/V) 0 10V ≤ V –10 IN ≤ 40V TEMPERATURE COEFFICIENT (ppm/°C) –2 –15 1 10 100 1000 1 10 100 1000 TOTAL DOSE Krad (Si) TOTAL DOSE Krad (Si) RH1021-5 G02 RH1021-5 G04 I.D. No. 66-10-0177 Rev F 6 10/18 www.analog.com ANALOG DEVICES, INC. 1990-2018 Document Outline Description Absolute Maximum Ratings Burn-In Circuits Pin Configuration Order Information Table 1: Electrical Characteristics Table 1A: Electrical Characteristics Table 2: Electrical Test Requirements Total Dose Bias Circuit Revision History Typical Performance Characteristics
