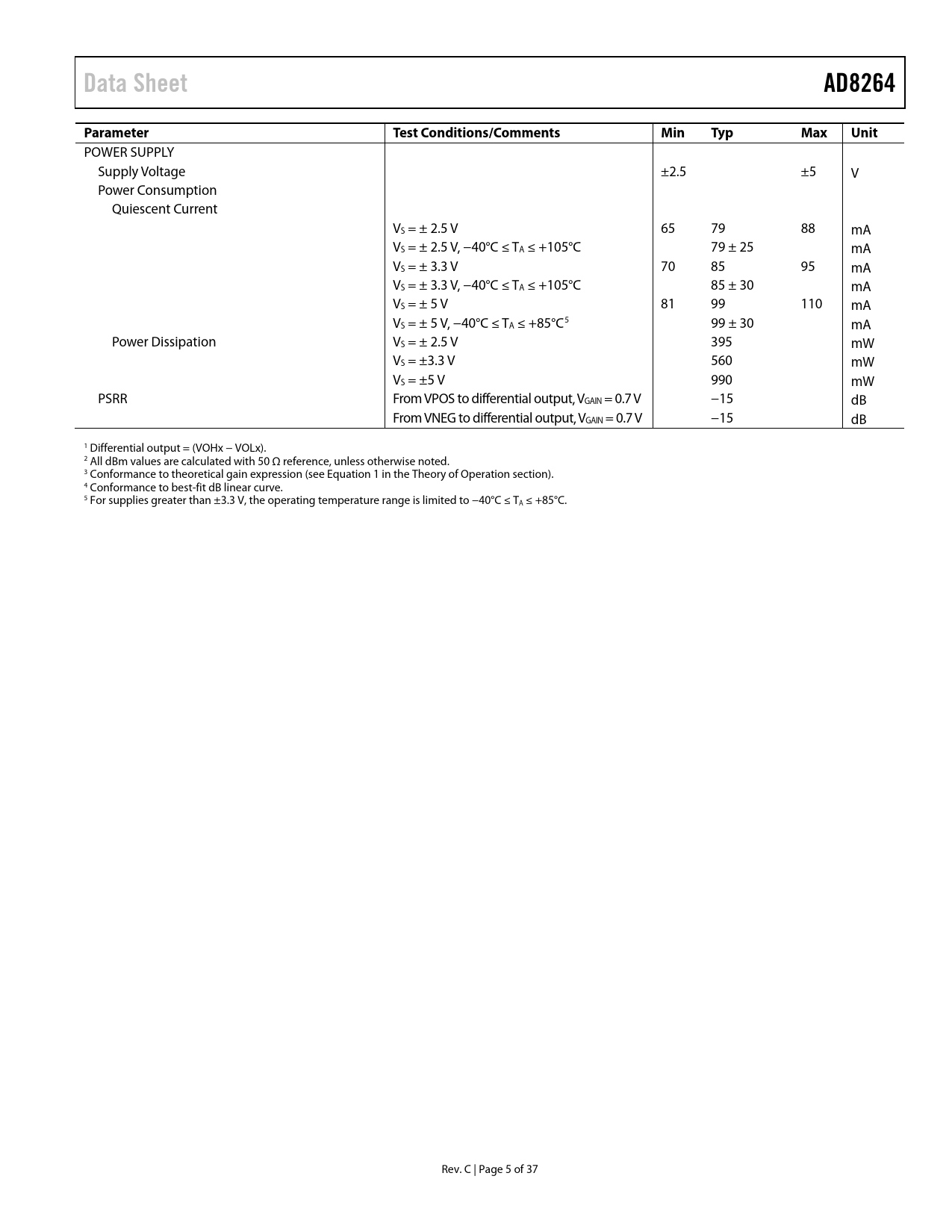

Data Sheet AD8264 Parameter Test Conditions/Comments Min Typ Max Unit
POWER SUPPLY Supply Voltage ±2.5 ±5 V Power Consumption Quiescent Current VS = ± 2.5 V 65 79 88 mA VS = ± 2.5 V, −40°C ≤ TA ≤ +105°C 79 ± 25 mA VS = ± 3.3 V 70 85 95 mA VS = ± 3.3 V, −40°C ≤ TA ≤ +105°C 85 ± 30 mA VS = ± 5 V 81 99 110 mA VS = ± 5 V, −40°C ≤ TA ≤ +85°C5 99 ± 30 mA Power Dissipation VS = ± 2.5 V 395 mW VS = ±3.3 V 560 mW VS = ±5 V 990 mW PSRR From VPOS to differential output, VGAIN = 0.7 V −15 dB From VNEG to differential output, VGAIN = 0.7 V −15 dB 1 Differential output = (VOHx − VOLx). 2 All dBm values are calculated with 50 Ω reference, unless otherwise noted. 3 Conformance to theoretical gain expression (see Equation 1 in the Theory of Operation section). 4 Conformance to best-fit dB linear curve. 5 For supplies greater than ±3.3 V, the operating temperature range is limited to −40°C ≤ TA ≤ +85°C. Rev. C | Page 5 of 37 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE MAXIMUM POWER DISSIPATION ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS THEORY OF OPERATION OVERVIEW PREAMP VGA POST AMPLIFIER VOCM Pin OFSx Pins NOISE APPLICATIONS INFORMATION A LOW CHANNEL COUNT APPLICATION CONCEPT USING A DISCRETE REFERENCE A DC CONNECTED CONCEPT EXAMPLE EVALUATION BOARD CONNECTING AND USING THE AD8264-EVALZ OUTLINE DIMENSIONS ORDERING GUIDE
