Datasheet AD600, AD602 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | Dual, Low Noise, Wideband Variable Gain Amplifier, -10 dB To +30 dB Gain |
| Pages / Page | 32 / 5 — AD600/AD602. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter Rating. ESD … |
| Revision | F |
| File Format / Size | PDF / 475 Kb |
| Document Language | English |

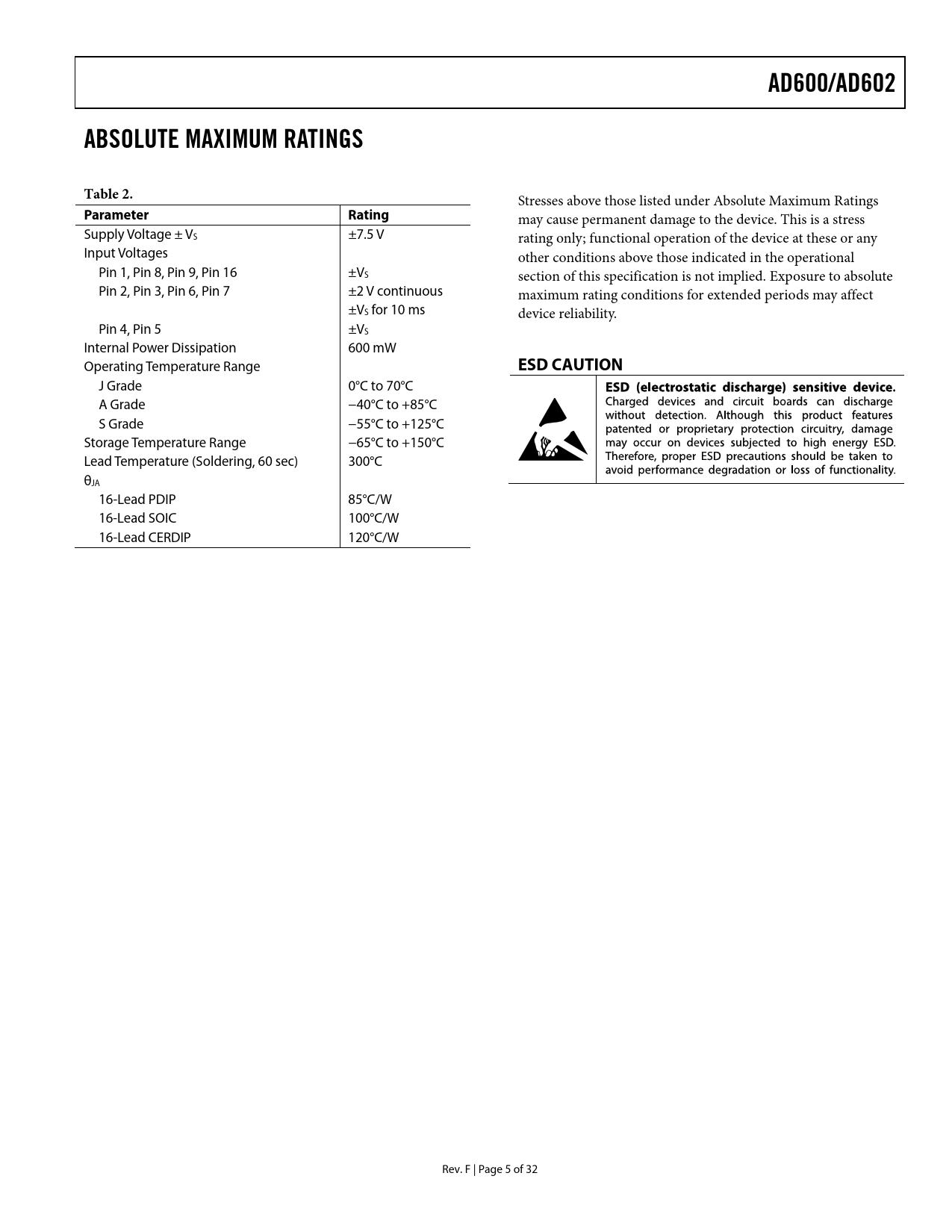

AD600/AD602. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
AD600/AD602 ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses above those listed under Absolute Maximum Ratings
Parameter Rating
may cause permanent damage to the device. This is a stress Supply Voltage ± VS ±7.5 V rating only; functional operation of the device at these or any Input Voltages other conditions above those indicated in the operational Pin 1, Pin 8, Pin 9, Pin 16 ±VS section of this specification is not implied. Exposure to absolute Pin 2, Pin 3, Pin 6, Pin 7 ±2 V continuous maximum rating conditions for extended periods may affect ±VS for 10 ms device reliability. Pin 4, Pin 5 ±VS Internal Power Dissipation 600 mW Operating Temperature Range
ESD CAUTION
J Grade 0°C to 70°C A Grade −40°C to +85°C S Grade −55°C to +125°C Storage Temperature Range −65°C to +150°C Lead Temperature (Soldering, 60 sec) 300°C θJA 16-Lead PDIP 85°C/W 16-Lead SOIC 100°C/W 16-Lead CERDIP 120°C/W Rev. F | Page 5 of 32 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION NOISE PERFORMANCE GAIN-CONTROL INTERFACE SIGNAL-GATING INPUTS COMMON-MODE REJECTION ACHIEVING 80 dB GAIN RANGE SEQUENTIAL MODE (MAXIMUM SNR) PARALLEL MODE (SIMPLEST GAIN-CONTROL INTERFACE) LOW RIPPLE MODE (MINIMUM GAIN ERROR) APPLICATIONS INFORMATION TIME-GAIN CONTROL (TGC) AND TIME-VARIABLE GAIN (TVG) INCREASING OUTPUT DRIVE DRIVING CAPACITIVE LOADS REALIZING OTHER GAIN RANGES ULTRALOW NOISE VCA LOW NOISE, 6 dB PREAMPLIFIER LOW NOISE AGC AMPLIFIER WITH 80 dB GAIN RANGE WIDE RANGE, RMS-LINEAR dB MEASUREMENT SYSTEM (2 MHz AGC AMPLIFIER WITH RMS DETECTOR) 100 dB TO 120 dB RMS RESPONDING CONSTANT BANDWIDTH AGC SYSTEMS WITH HIGH ACCURACY DECIBEL OUTPUTS 100 dB RMS/AGC SYSTEM WITH MINIMAL GAIN ERROR (PARALLEL GAIN WITH OFFSET) 120 dB RMS/AGC SYSTEM WITH OPTIMAL SNR (SEQUENTIAL GAIN) OUTLINE DIMENSIONS ORDERING GUIDE
