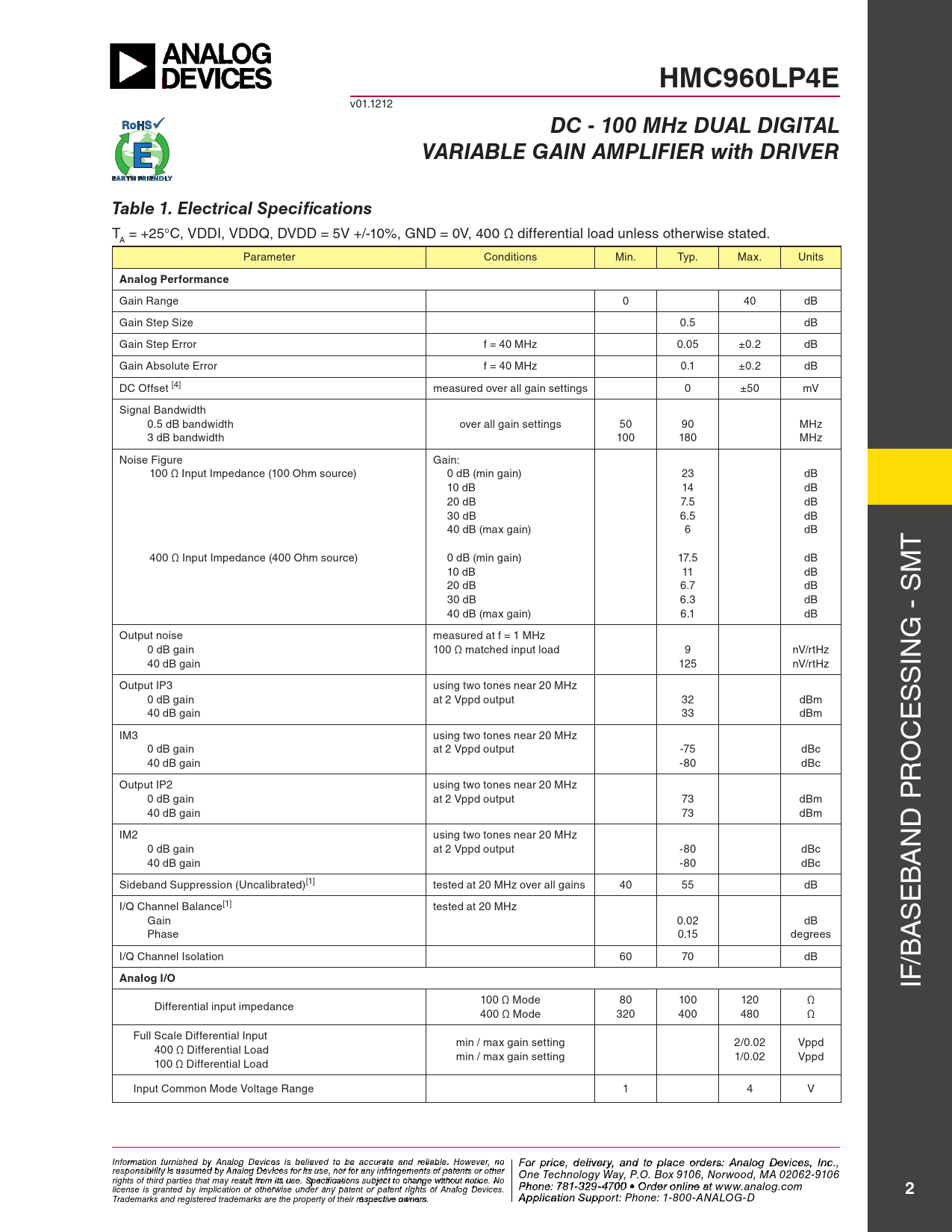

HMC960LP4E. DC - 100 MHz DUAL DigitAL. VAriAbLe gAin AMpLifier with DriVer. table 1. electrical Specifications
Model Line for this Datasheet
Text Version of Document
HMC960LP4E
v01.1212
DC - 100 MHz DUAL DigitAL VAriAbLe gAin AMpLifier with DriVer table 1. electrical Specifications
T = +25°C, VDDI, VDDQ, DVDD = 5V +/-10%, GND = 0V, 400 Ω differential load unless otherwise stated. A Parameter Conditions Min. Typ. Max. Units
Analog Performance
Gain Range 0 40 dB Gain Step Size 0.5 dB Gain Step Error f = 40 MHz 0.05 ±0.2 dB Gain Absolute Error f = 40 MHz 0.1 ±0.2 dB DC Offset [4] measured over all gain settings 0 ±50 mV Signal Bandwidth 0.5 dB bandwidth over all gain settings 50 90 MHz 3 dB bandwidth 100 180 MHz Noise Figure Gain: 100 Ω Input Impedance (100 Ohm source) 0 dB (min gain) 23 dB 10 dB 14 dB 20 dB 7.5 dB 30 dB 6.5 dB 40 dB (max gain) 6 dB T 400 Ω Input Impedance (400 Ohm source) 0 dB (min gain) 17.5 dB 10 dB 11 dB M 20 dB 6.7 dB 30 dB 6.3 dB S 40 dB (max gain) 6.1 dB - Output noise measured at f = 1 MHz G 0 dB gain 100 Ω matched input load 9 nV/rtHz 40 dB gain 125 nV/rtHz IN Output IP3 using two tones near 20 MHz S 0 dB gain at 2 Vppd output 32 dBm S 40 dB gain 33 dBm E IM3 using two tones near 20 MHz C 0 dB gain at 2 Vppd output -75 dBc 40 dB gain -80 dBc RO Output IP2 using two tones near 20 MHz 0 dB gain at 2 Vppd output 73 dBm P 40 dB gain 73 dBm D IM2 using two tones near 20 MHz 0 dB gain at 2 Vppd output -80 dBc N 40 dB gain -80 dBc A Sideband Suppression (Uncalibrated)[1] tested at 20 MHz over all gains 40 55 dB B E I/Q Channel Balance[1] tested at 20 MHz Gain 0.02 dB S Phase 0.15 degrees A I/Q Channel Isolation 60 70 dB
