Datasheet MIC862 (Microchip) - 10
| Manufacturer | Microchip |
| Description | The MIC862 is a dual low-power operational amplifier in an SOT23-8 package |
| Pages / Page | 24 / 10 — MIC862. FIGURE 2-13:. FIGURE 2-16:. FIGURE 2-14:. FIGURE 2-17:. FIGURE … |
| File Format / Size | PDF / 1.7 Mb |
| Document Language | English |
MIC862. FIGURE 2-13:. FIGURE 2-16:. FIGURE 2-14:. FIGURE 2-17:. FIGURE 2-15:. FIGURE 2-18:
Model Line for this Datasheet
Text Version of Document

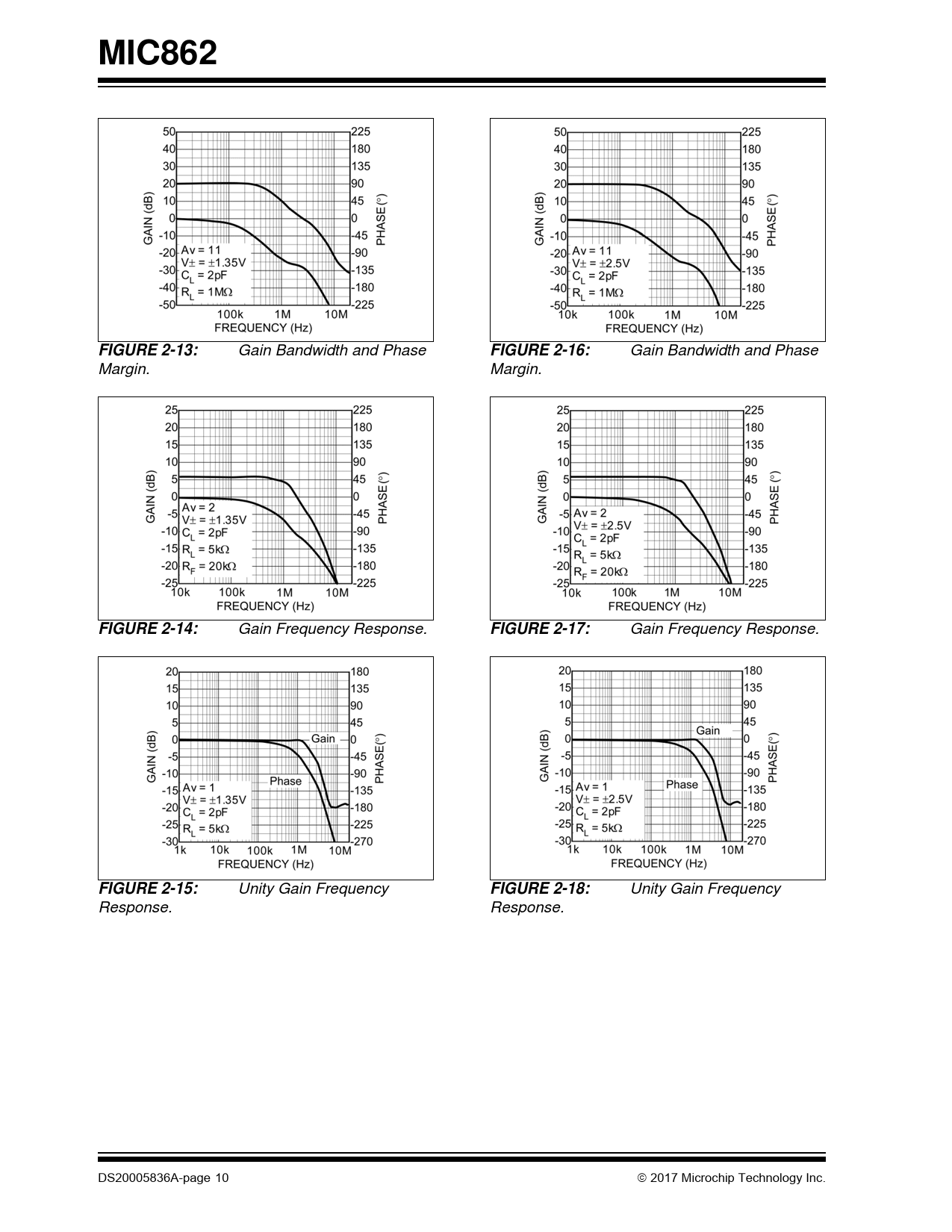

MIC862 FIGURE 2-13:
Gain Bandwidth and Phase
FIGURE 2-16:
Gain Bandwidth and Phase Margin. Margin.
FIGURE 2-14:
Gain Frequency Response.
FIGURE 2-17:
Gain Frequency Response.
FIGURE 2-15:
Unity Gain Frequency
FIGURE 2-18:
Unity Gain Frequency Response. Response. DS20005836A-page 10 2017 Microchip Technology Inc. Document Outline 1.0 Electrical Characteristics 2.0 Typical Performance Curves 3.0 Pin Descriptions 4.0 Application Information 4.1 Power Supply Bypassing 4.2 Supply and Loading Resistive Considerations 4.3 Capacitive Load 5.0 Packaging Information 5.1 Package Marking Information Appendix A: Revision History Product Identification System Worldwide Sales and Service
