Datasheet BC846DS (NXP) - 5
| Manufacturer | NXP |
| Description | 65 V, 100 mA NPN/NPN general-purpose transistor pair |
| Pages / Page | 12 / 5 — NXP Semiconductors. BC846DS. 65 V, 100 mA NPN/NPN general-purpose … |
| File Format / Size | PDF / 105 Kb |
| Document Language | English |
NXP Semiconductors. BC846DS. 65 V, 100 mA NPN/NPN general-purpose transistor. Table 7. Characteristics. Symbol Parameter
Model Line for this Datasheet
Text Version of Document

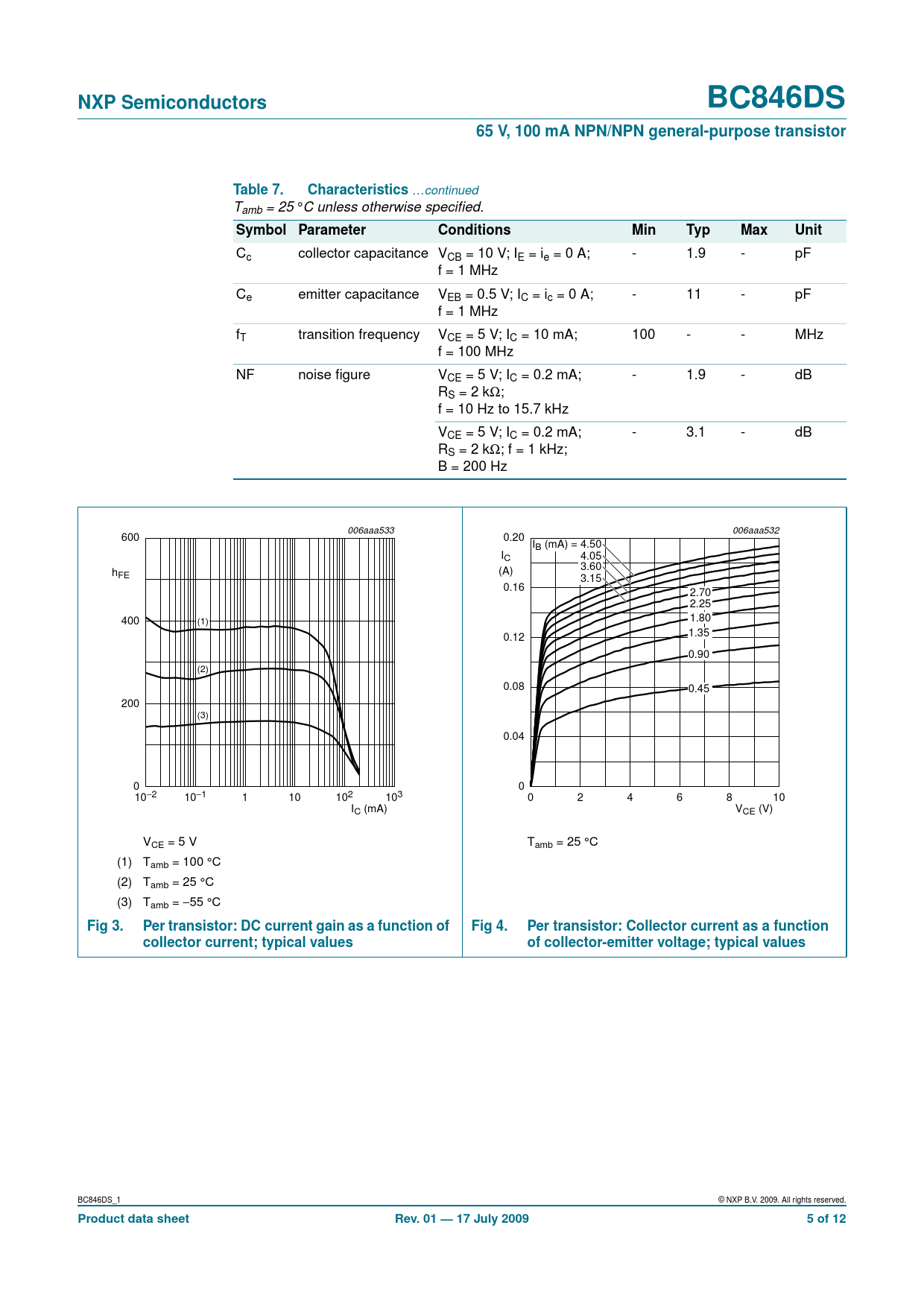

NXP Semiconductors BC846DS 65 V, 100 mA NPN/NPN general-purpose transistor Table 7. Characteristics
…continued Tamb = 25 °C unless otherwise specified.
Symbol Parameter Conditions Min Typ Max Unit
Cc collector capacitance VCB = 10 V; IE = ie = 0 A; - 1.9 - pF f = 1 MHz Ce emitter capacitance VEB = 0.5 V; IC = ic = 0 A; - 11 - pF f = 1 MHz fT transition frequency VCE = 5 V; IC = 10 mA; 100 - - MHz f = 100 MHz NF noise figure VCE = 5 V; IC = 0.2 mA; - 1.9 - dB RS = 2 kΩ; f = 10 Hz to 15.7 kHz VCE = 5 V; IC = 0.2 mA; - 3.1 - dB RS = 2 kΩ; f = 1 kHz; B = 200 Hz 006aaa533 006aaa532 600 0.20 IB (mA) = 4.50 IC 4.05 3.60 h (A) FE 3.15 0.16 2.70 2.25 400 (1) 1.80 0.12 1.35 0.90 (2) 0.08 0.45 200 (3) 0.04 0 0 10−2 1 103 102 10−1 10 0 2 4 6 8 10 IC (mA) VCE (V) VCE = 5 V Tamb = 25 °C (1) Tamb = 100 °C (2) Tamb = 25 °C (3) Tamb = −55 °C
Fig 3. Per transistor: DC current gain as a function of Fig 4. Per transistor: Collector current as a function collector current; typical values of collector-emitter voltage; typical values
BC846DS_1 © NXP B.V. 2009. All rights reserved.
Product data sheet Rev. 01 — 17 July 2009 5 of 12
