Datasheet BC846DS (NXP) - 9
| Manufacturer | NXP |
| Description | 65 V, 100 mA NPN/NPN general-purpose transistor pair |
| Pages / Page | 12 / 9 — NXP Semiconductors. BC846DS. 65 V, 100 mA NPN/NPN general-purpose … |
| File Format / Size | PDF / 105 Kb |
| Document Language | English |
NXP Semiconductors. BC846DS. 65 V, 100 mA NPN/NPN general-purpose transistor. 11. Soldering
Model Line for this Datasheet
Text Version of Document

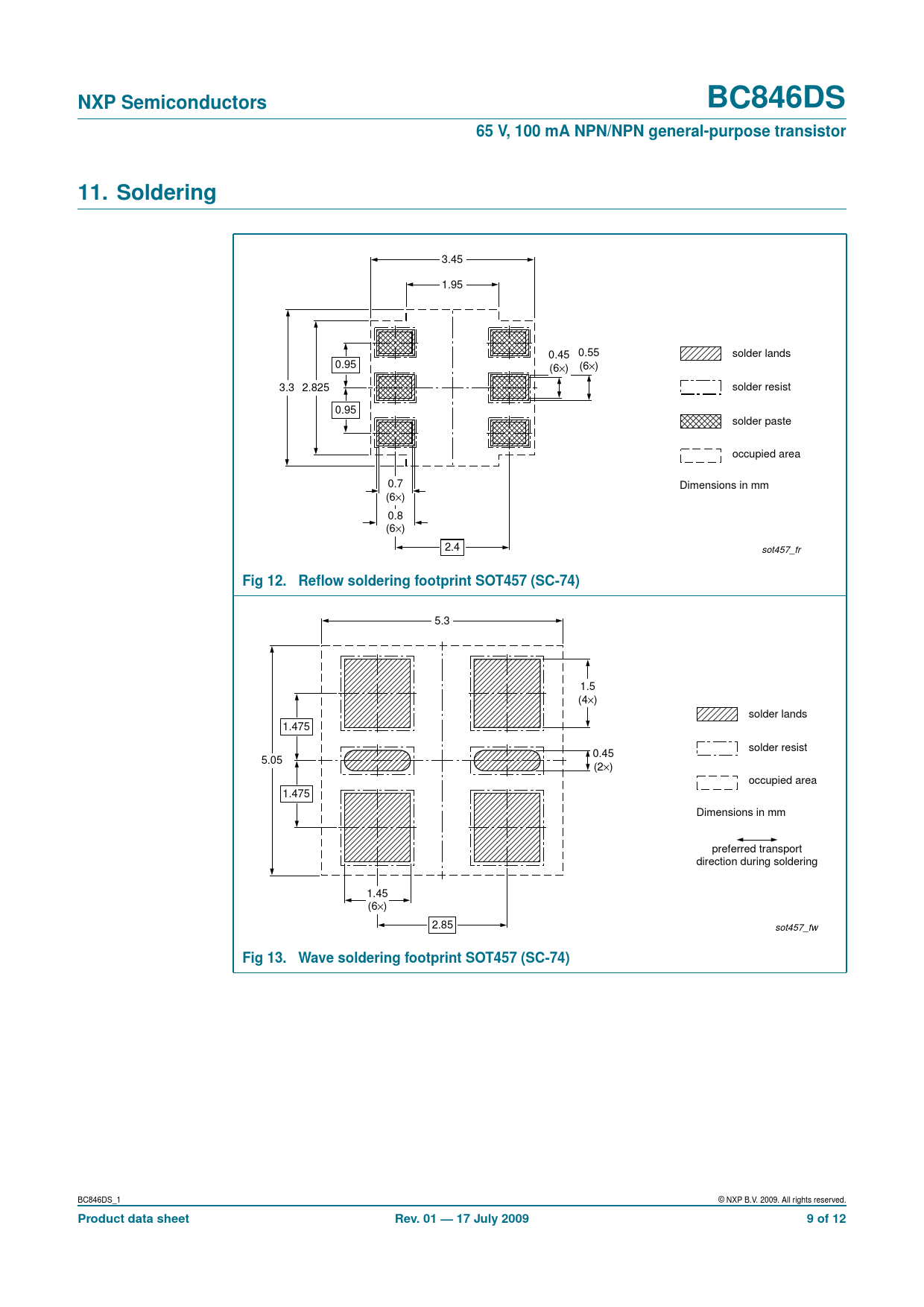

NXP Semiconductors BC846DS 65 V, 100 mA NPN/NPN general-purpose transistor 11. Soldering
3.45 1.95 0.45 0.55 solder lands 0.95 (6×) (6×) 3.3 2.825 solder resist 0.95 solder paste occupied area 0.7 Dimensions in mm (6×) 0.8 (6×) 2.4 sot457_fr
Fig 12. Reflow soldering footprint SOT457 (SC-74)
5.3 1.5 (4×) solder lands 1.475 solder resist 0.45 5.05 (2×) occupied area 1.475 Dimensions in mm preferred transport direction during soldering 1.45 (6×) 2.85 sot457_fw
Fig 13. Wave soldering footprint SOT457 (SC-74)
BC846DS_1 © NXP B.V. 2009. All rights reserved.
Product data sheet Rev. 01 — 17 July 2009 9 of 12
