Datasheet RV1S9160A (Renesas)

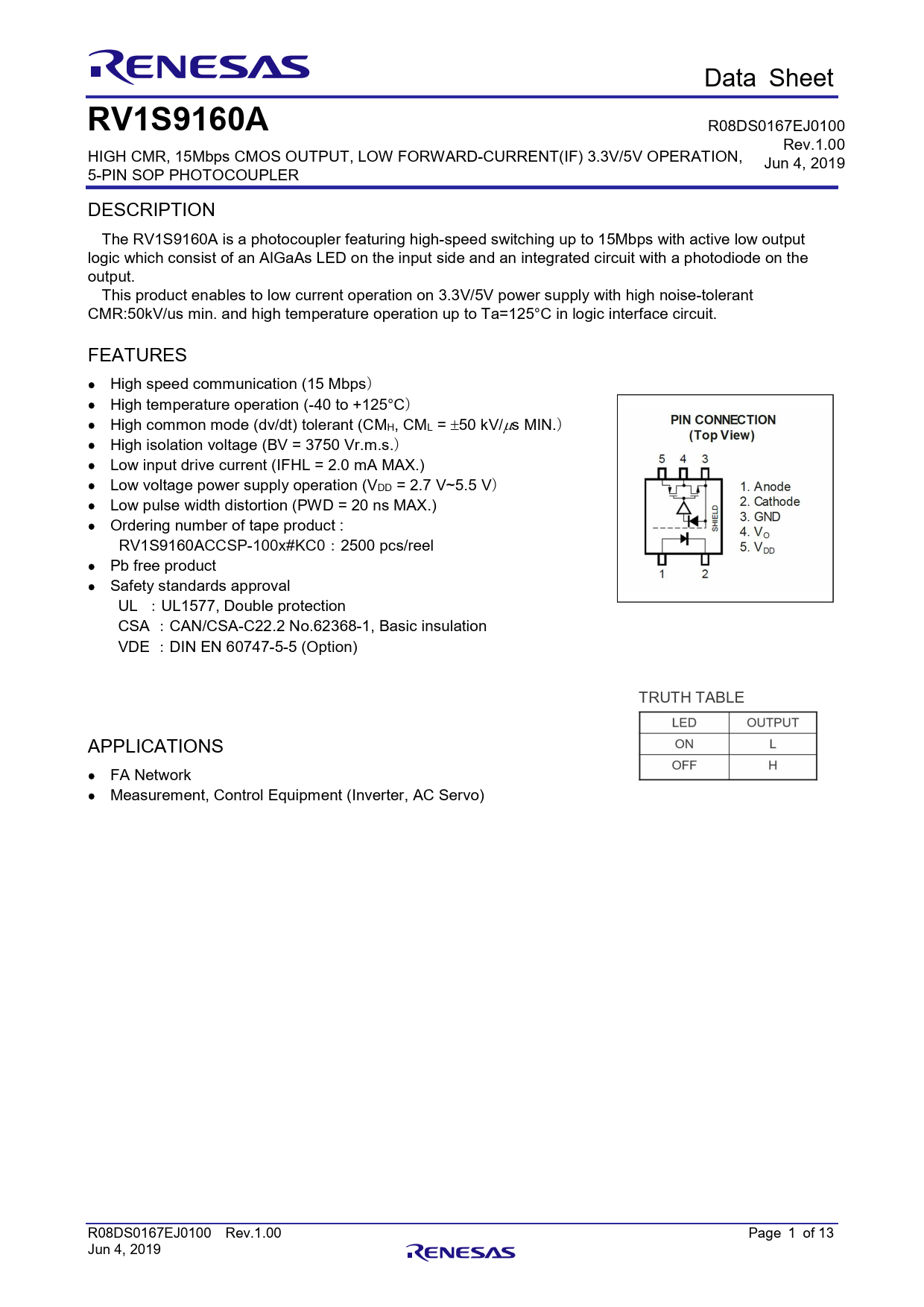

Data Sheet RV1S9160A R08DS0167EJ0100 Rev.1.00 HIGH CMR, 15Mbps CMOS OUTPUT, LOW FORWARD-CURRENT(IF) 3.3V/5V OPERATION, Jun 4, 2019 5-PIN SOP PHOTOCOUPLER DESCRIPTION The RV1S9160A is a photocoupler featuring high-speed switching up to 15Mbps with active low output logic which consist of an AlGaAs LED on the input side and an integrated circuit with a photodiode on the output. This product enables to low current operation on 3.3V/5V power supply with high noise-tolerant CMR:50kV/us min. and high temperature operation up to Ta=125°C in logic interface circuit. FEATURES High speed communication (15 Mbps） High temperature operation (-40 to +125°C） High common mode (dv/dt) tolerant (CM H, CML = 50 kV/s MIN.） High isolation voltage (BV = 3750 Vr.m.s.） Low input drive current (IFHL = 2.0 mA MAX.) Low voltage power supply operation (VDD = 2.7 V~5.5 V） Low pulse width distortion (PWD = 20 ns MAX.) Ordering number of tape product : RV1S9160ACCSP-100x#KC0：2500 pcs/reel Pb free product Safety standards approval UL ：UL1577, Double protection CSA ：CAN/CSA-C22.2 No.62368-1, Basic insulation VDE ：DIN EN 60747-5-5 (Option) TRUTH TABLE APPLICATIONS FA Network Measurement, Control Equipment (Inverter, AC Servo) R08DS0167EJ0100 Rev.1.00 Page 1 of 13 Jun 4, 2019
