Datasheet XC9267 (Torex) - 8
| Manufacturer | Torex |
| Description | 36V Operation 0.6A Synchronous Step-Down DC/DC Converters |
| Pages / Page | 30 / 8 — XC9267. Series |
| File Format / Size | PDF / 1.7 Mb |
| Document Language | English |
XC9267. Series
Model Line for this Datasheet
Text Version of Document
XC9267 Series

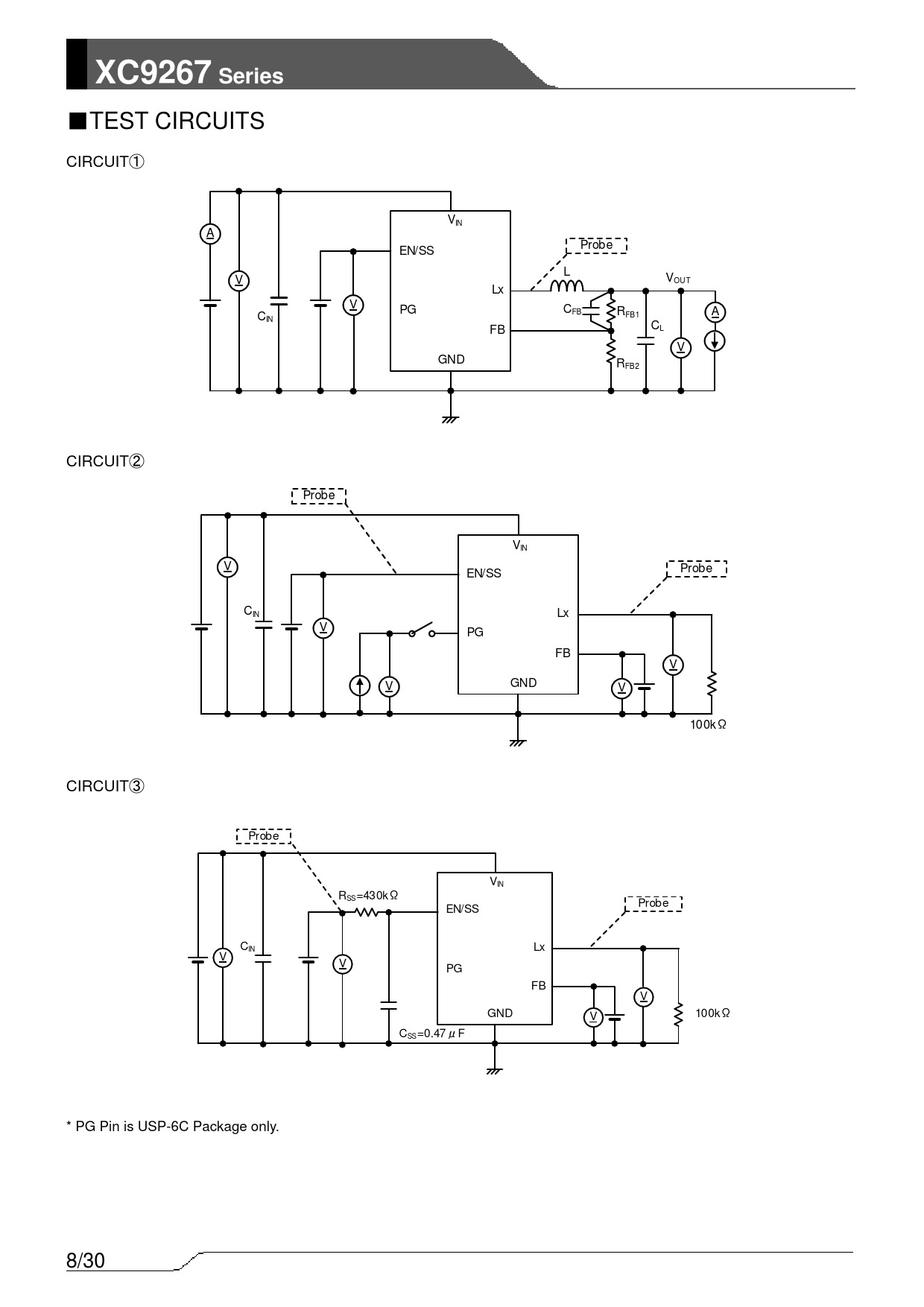

■TEST CIRCUITS CIRCUIT① VIN A EN/SS Probe L V VOUT Lx V PG CFB RFB1 A CIN FB CL V GND RFB2 CIRCUIT② Probe VIN V EN/SS Probe CIN Lx V PG FB V GND V V 100kΩ CIRCUIT③ Probe VIN RSS=430kΩ Probe EN/SS CIN Lx V V PG FB V GND V 100kΩ CSS=0.47μF * PG Pin is USP-6C Package only. 8/30
■TEST CIRCUITS CIRCUIT① VIN A EN/SS Probe L V VOUT Lx V PG CFB RFB1 A CIN FB CL V GND RFB2 CIRCUIT② Probe VIN V EN/SS Probe CIN Lx V PG FB V GND V V 100kΩ CIRCUIT③ Probe VIN RSS=430kΩ Probe EN/SS CIN Lx V V PG FB V GND V 100kΩ CSS=0.47μF * PG Pin is USP-6C Package only. 8/30
