Datasheet XC9268 (Torex) - 3
| Manufacturer | Torex |
| Description | 36V Operation 0.6A Synchronous Step-Down DC/DC Converters |
| Pages / Page | 29 / 3 — XC9268. Series |
| File Format / Size | PDF / 1.7 Mb |
| Document Language | English |
XC9268. Series
Model Line for this Datasheet
Text Version of Document
XC9268 Series

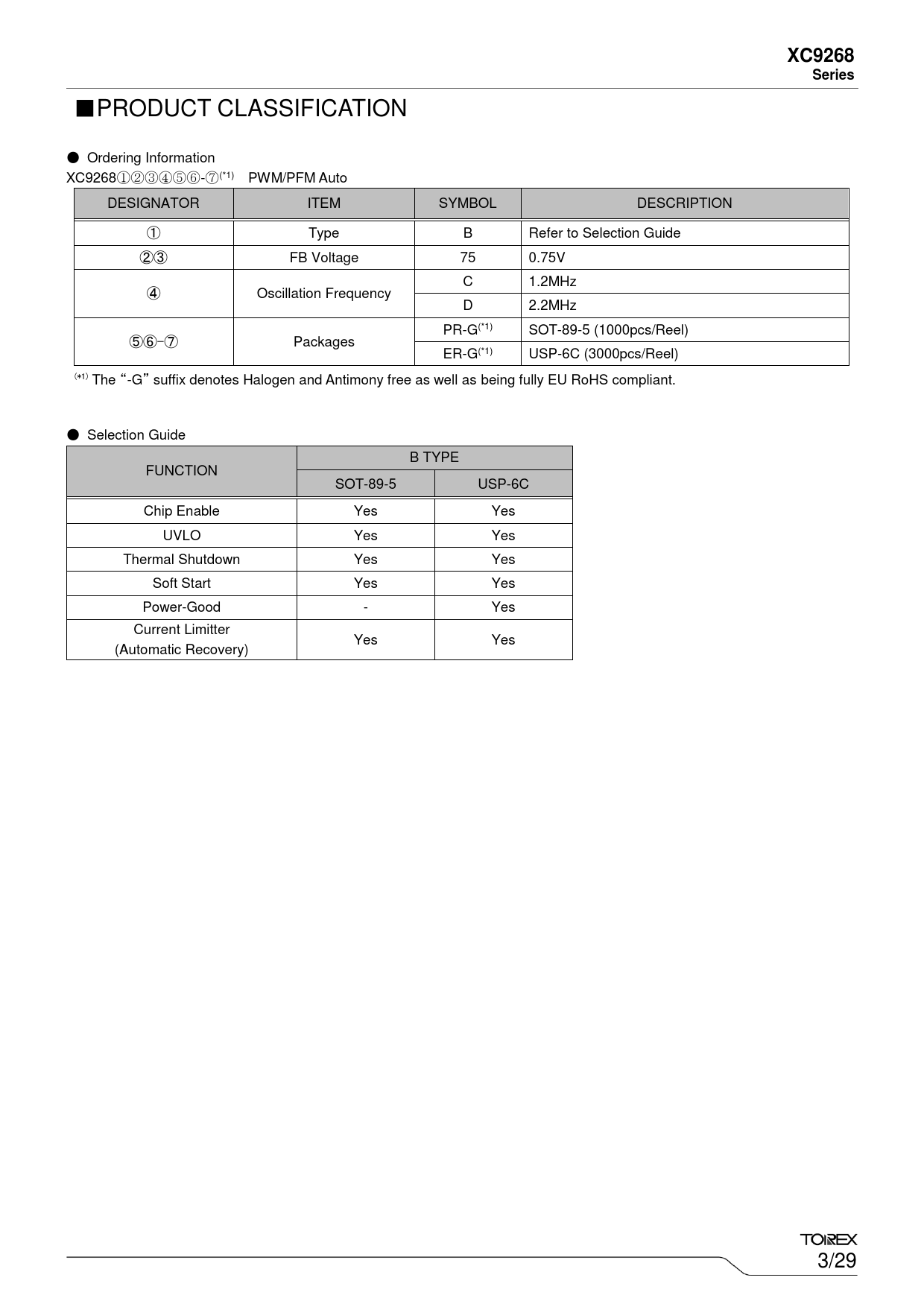

■PRODUCT CLASSIFICATION ● Ordering Information XC9268①②③④⑤⑥-⑦(*1) PWM/PFM Auto DESIGNATOR ITEM SYMBOL DESCRIPTION ① Type B Refer to Selection Guide ②③ FB Voltage 75 0.75V C 1.2MHz ④ Oscillation Frequency D 2.2MHz PR-G(*1) SOT-89-5 (1000pcs/Reel) ⑤⑥-⑦ Packages ER-G(*1) USP-6C (3000pcs/Reel) (*1) The “-G” suffix denotes Halogen and Antimony free as well as being fully EU RoHS compliant. ● Selection Guide B TYPE FUNCTION SOT-89-5 USP-6C Chip Enable Yes Yes UVLO Yes Yes Thermal Shutdown Yes Yes Soft Start Yes Yes Power-Good - Yes Current Limitter Yes Yes (Automatic Recovery) 3/29
