Datasheet TLE5x09A16(D) (Infineon)
| Manufacturer | Infineon |
| Description | Angle sensors for ultra-precise angular position sensing, AMR-based |
| Pages / Page | 33 / 1 — T L E 5 x 0 9 A 1 6 ( D ). A n a l o g A M R / G M R A n g l e S e n s o … |
| Revision | 02_00 |
| File Format / Size | PDF / 1.3 Mb |
| Document Language | English |
T L E 5 x 0 9 A 1 6 ( D ). A n a l o g A M R / G M R A n g l e S e n s o r s. Features. Functional Safety. Product Validation
Model Line for this Datasheet
Text Version of Document

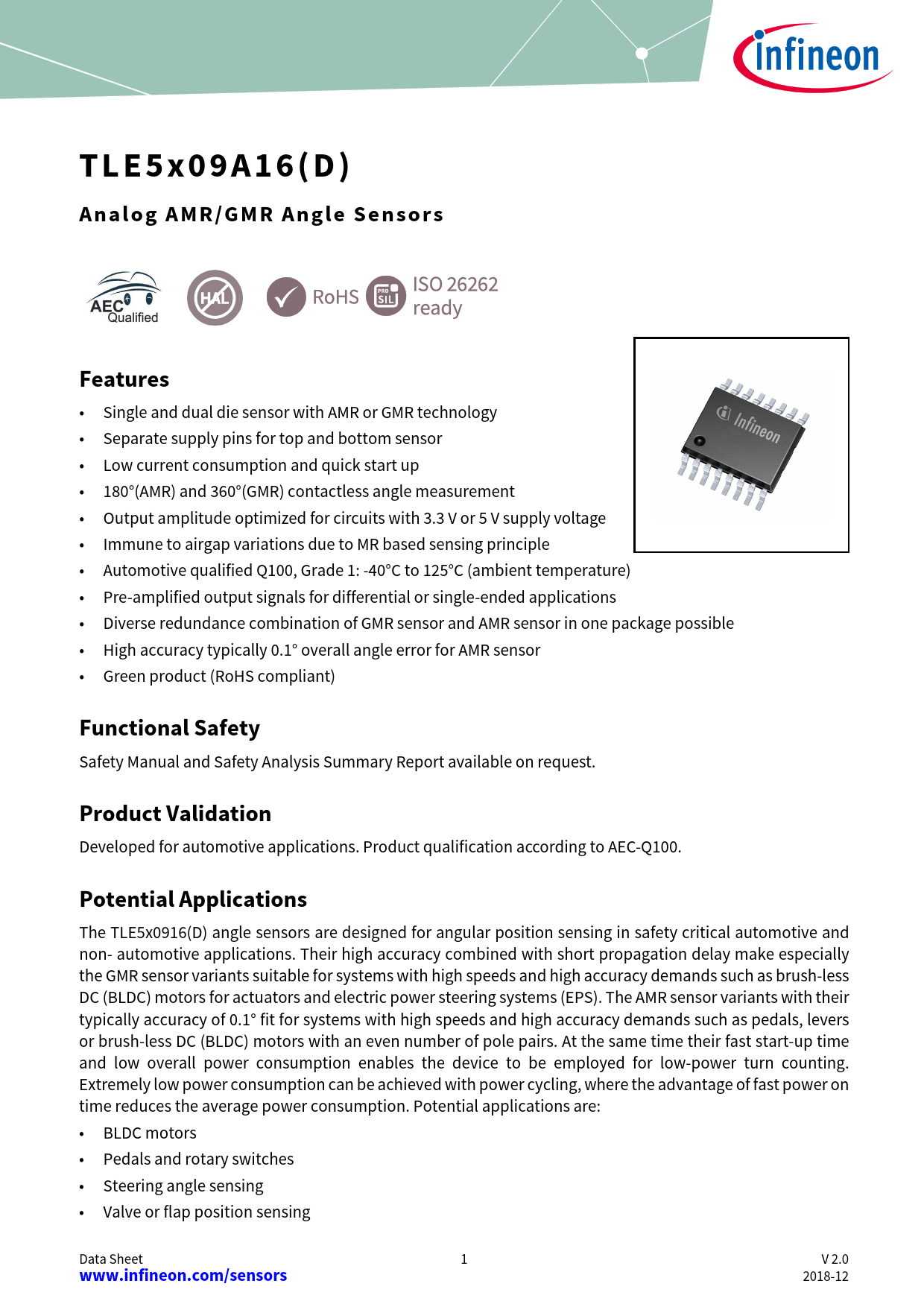

T L E 5 x 0 9 A 1 6 ( D ) A n a l o g A M R / G M R A n g l e S e n s o r s Features
• Single and dual die sensor with AMR or GMR technology • Separate supply pins for top and bottom sensor • Low current consumption and quick start up • 180°(AMR) and 360°(GMR) contactless angle measurement • Output amplitude optimized for circuits with 3.3 V or 5 V supply voltage • Immune to airgap variations due to MR based sensing principle • Automotive qualified Q100, Grade 1: -40°C to 125°C (ambient temperature) • Pre-amplified output signals for differential or single-ended applications • Diverse redundance combination of GMR sensor and AMR sensor in one package possible • High accuracy typically 0.1° overall angle error for AMR sensor • Green product (RoHS compliant)
Functional Safety
Safety Manual and Safety Analysis Summary Report available on request.
Product Validation
Developed for automotive applications. Product qualification according to AEC-Q100.
Potential Applications
The TLE5x0916(D) angle sensors are designed for angular position sensing in safety critical automotive and non- automotive applications. Their high accuracy combined with short propagation delay make especially the GMR sensor variants suitable for systems with high speeds and high accuracy demands such as brush-less DC (BLDC) motors for actuators and electric power steering systems (EPS). The AMR sensor variants with their typically accuracy of 0.1° fit for systems with high speeds and high accuracy demands such as pedals, levers or brush-less DC (BLDC) motors with an even number of pole pairs. At the same time their fast start-up time and low overall power consumption enables the device to be employed for low-power turn counting. Extremely low power consumption can be achieved with power cycling, where the advantage of fast power on time reduces the average power consumption. Potential applications are: • BLD C motors • Pedals and rotary switches • Steering angle sensing • Valve or flap position sensing Data Sheet 1 V 2.0
www.infineon.com/sensors
2018-12 Document Outline Features Functional Safety Product Validation Potential Applications Description Table of Contents 1 Functional description 1.1 General 1.2 Pin configuration 1.3 Pin description 1.4 Block diagram 1.5 Dual die angle output 2 Specification 2.1 Application circuit 2.2 Absolute maximum ratings 2.3 Sensor specification 2.3.1 Operating range 2.3.2 Electrical parameters 2.3.3 Output parameters 2.4 Error diagnosis 2.5 Angle performance 2.6 Electrostatic discharge protection 2.7 Electro magnetic compatibility (EMC) 3 Package information 3.1 Package parameters 3.2 Package outlines 3.3 Footprint 3.4 Packing 3.5 Marking 4 Revision history
