Datasheet InnoSwitch3-MX (Power Integrations) - 9
| Manufacturer | Power Integrations |
| Description | Off-Line Multiple Output QR Flyback Switcher IC with Integrated 650 V or 725 V Switch, Synchronous Rectification and FluxLink Feedback |
| Pages / Page | 16 / 9 — InnoSwitch3-MX. Conditions. Parameter. Symbol. Min. Typ. Max. Units. … |
| File Format / Size | PDF / 1.1 Mb |
| Document Language | English |

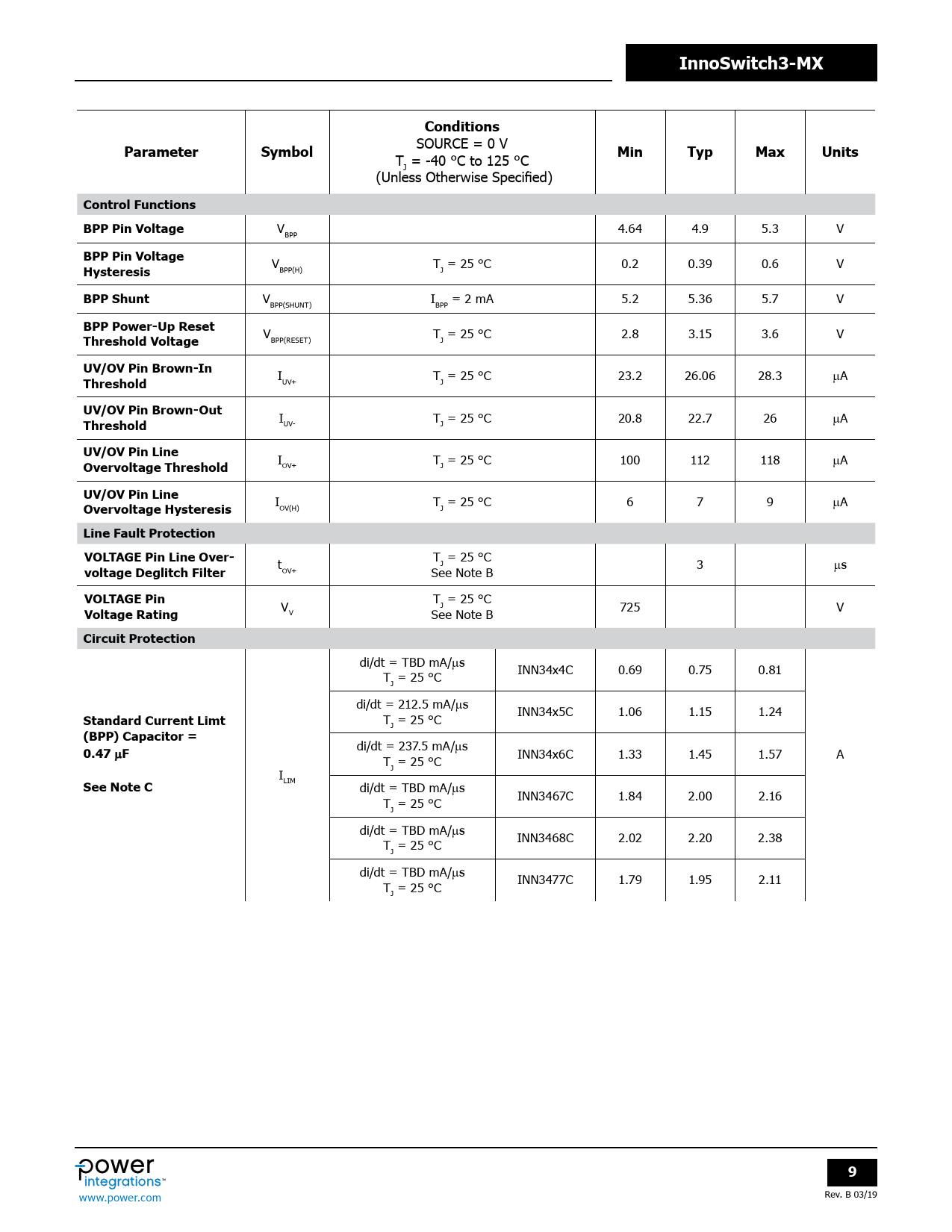

InnoSwitch3-MX. Conditions. Parameter. Symbol. Min. Typ. Max. Units. Control Functions. BPP Pin Voltage. Hysteresis. BPP Shunt
Model Line for this Datasheet
Text Version of Document
InnoSwitch3-MX Conditions Parameter Symbol
SOURCE = 0 V T = -40 °C to 125 °C
Min Typ Max Units
J (Unless Otherwise Specified)
Control Functions BPP Pin Voltage
V 4.64 4.9 5.3 V BPP
BPP Pin Voltage Hysteresis
V T = 25 °C 0.2 0.39 0.6 V BPP(H) J
BPP Shunt
V I = 2 mA 5.2 5.36 5.7 V BPP(SHUNT) BPP
BPP Power-Up Reset Threshold Voltage
V T = 25 °C 2.8 3.15 3.6 V BPP(RESET) J
UV/OV Pin Brown-In Threshold
I T = 25 °C 23.2 26.06 28.3 µA UV+ J
UV/OV Pin Brown-Out Threshold
I T = 25 °C 20.8 22.7 26 µA UV- J
UV/OV Pin Line Overvoltage Threshold
I T = 25 °C 100 112 118 µA OV+ J
UV/OV Pin Line Overvoltage Hysteresis
I T = 25 °C 6 7 9 µA OV(H) J
Line Fault Protection VOLTAGE Pin Line Over-
T = 25 °C J
voltage Deglitch Filter
t 3 µs OV+ See Note B
VOLTAGE Pin
T = 25 °C J
Voltage Rating
VV See Note B 725 V
Circuit Protection
di/dt = TBD mA/µs T = 25 °C INN34x4C 0.69 0.75 0.81 J di/dt = 212.5 mA/µs
Standard Current Limt
T = 25 °C INN34x5C 1.06 1.15 1.24 J
(BPP) Capacitor = 0.47
µ
F
di/dt = 237.5 mA/µs A T = 25 °C INN34x6C 1.33 1.45 1.57 I J
See Note C
LIM di/dt = TBD mA/µs T = 25 °C INN3467C 1.84 2.00 2.16 J di/dt = TBD mA/µs T = 25 °C INN3468C 2.02 2.20 2.38 J di/dt = TBD mA/µs T = 25 °C INN3477C 1.79 1.95 2.11 J
