Datasheet BAT41 (STMicroelectronics) - 6
| Manufacturer | STMicroelectronics |
| Description | 100 V, 200 mA Surface Mount General Purpose Signal Schottky Diode |
| Pages / Page | 12 / 6 — Package information. BAT41. 3 Package. information. Table 6. SOD-123 … |
| File Format / Size | PDF / 149 Kb |
| Document Language | English |

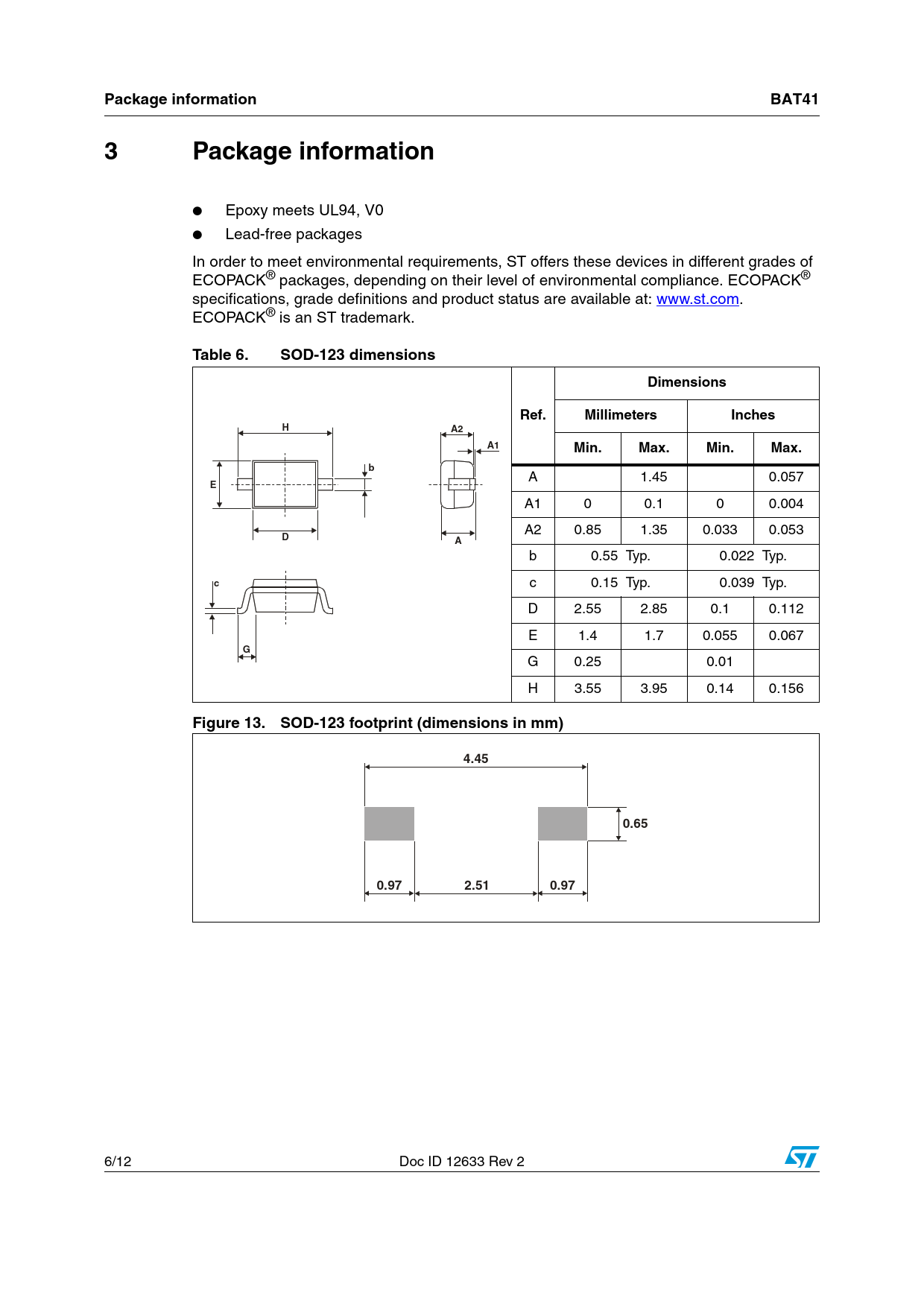

Package information. BAT41. 3 Package. information. Table 6. SOD-123 dimensions. Dimensions. Ref. Millimeters. Inches. Min. Max. Figure 13
Model Line for this Datasheet
Text Version of Document
Package information BAT41 3 Package information
● Epoxy meets UL94, V0 ● Lead-free packages In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK® packages, depending on their level of environmental compliance. ECOPACK® specifications, grade definitions and product status are available at: www.st.com. ECOPACK® is an ST trademark.
Table 6. SOD-123 dimensions Dimensions Ref. Millimeters Inches H A2 A1 Min. Max. Min. Max. b
A 1.45 0.057
E
A1 0 0.1 0 0.004 A2 0.85 1.35 0.033 0.053
D A
b 0.55 Typ. 0.022 Typ.
c
c 0.15 Typ. 0.039 Typ. D 2.55 2.85 0.1 0.112 E 1.4 1.7 0.055 0.067
G
G 0.25 0.01 H 3.55 3.95 0.14 0.156
Figure 13. SOD-123 footprint (dimensions in mm) 4.45 0.65 0.97 2.51 0.97
