TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. INTVCC Minimum Output. INTVCC vs Temperature
Model Line for this Datasheet
- LT3758AEDD#PBF LT3758AEDD#TRPBF LT3758AEMSE#PBF LT3758AEMSE#TRPBF LT3758AHMSE#PBF LT3758AHMSE#TRPBF LT3758AIDD#PBF LT3758AIDD#TRPBF LT3758AIMSE#PBF LT3758AIMSE#TRPBF LT3758AMPMSE#PBF LT3758AMPMSE#TRPBF LT3758EDD#PBF LT3758EDD#TRPBF LT3758EMSE#PBF LT3758EMSE#TRPBF LT3758HMSE#PBF LT3758HMSE#TRPBF LT3758IDD#PBF LT3758IDD#TRPBF LT3758IMSE#PBF LT3758IMSE#TRPBF LT3758MPMSE#PBF LT3758MPMSE#TRPBF
Text Version of Document
LT3758/LT3758A

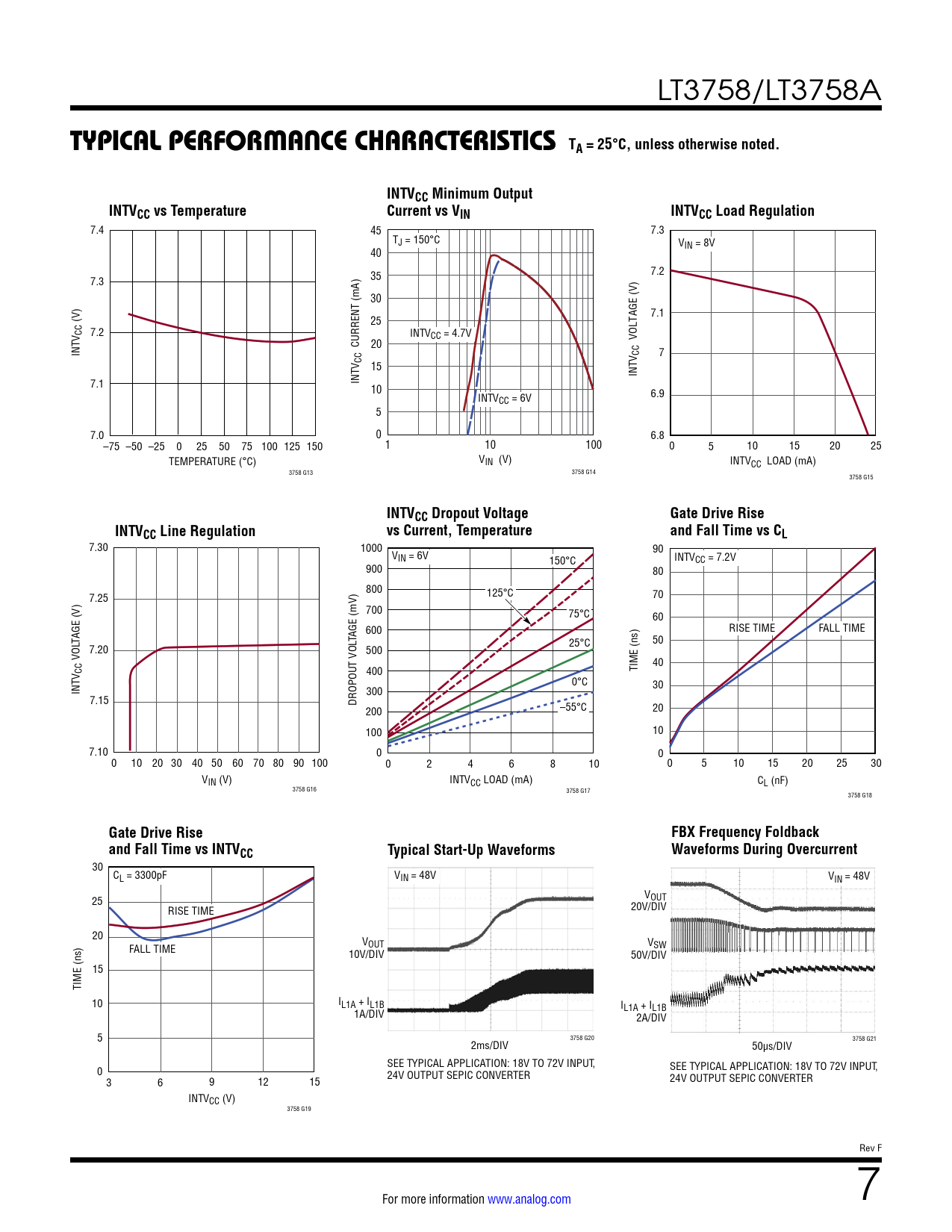

TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. INTVCC Minimum Output INTVCC vs Temperature Current vs VIN INTVCC Load Regulation
