LTC4120/LTC4120-4.2

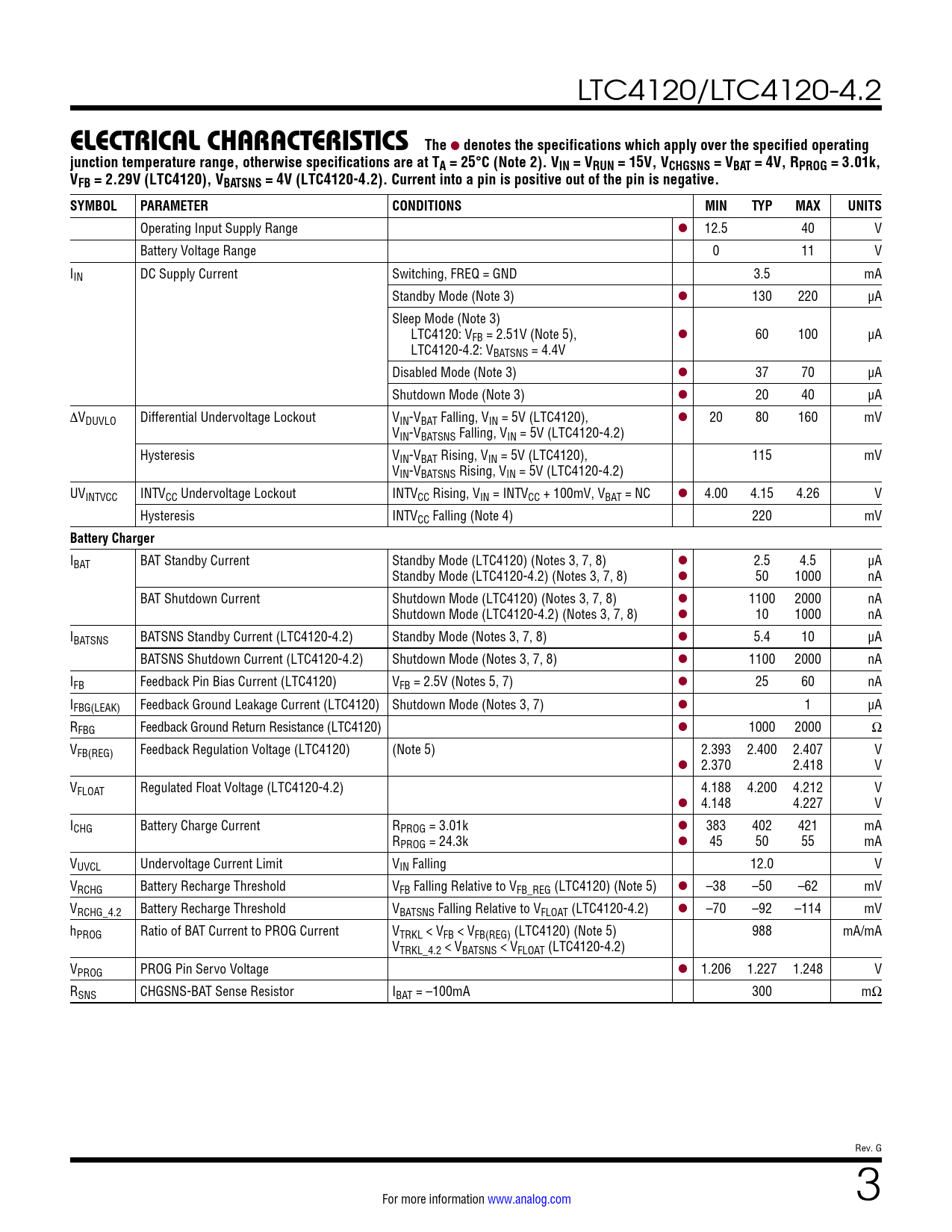

ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the specified operating junction temperature range, otherwise specifications are at TA = 25°C (Note 2). VIN = VRUN = 15V, VCHGSNS = VBAT = 4V, RPROG = 3.01k, VFB = 2.29V (LTC4120), VBATSNS = 4V (LTC4120-4.2). Current into a pin is positive out of the pin is negative. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
Operating Input Supply Range l 12.5 40 V Battery Voltage Range 0 11 V IIN DC Supply Current Switching, FREQ = GND 3.5 mA Standby Mode (Note 3) l 130 220 µA Sleep Mode (Note 3) LTC4120: VFB = 2.51V (Note 5), l 60 100 µA LTC4120-4.2: VBATSNS = 4.4V Disabled Mode (Note 3) l 37 70 µA Shutdown Mode (Note 3) l 20 40 µA ∆VDUVLO Differential Undervoltage Lockout VIN-VBAT Falling, VIN = 5V (LTC4120), l 20 80 160 mV VIN-VBATSNS Falling, VIN = 5V (LTC4120-4.2) Hysteresis VIN-VBAT Rising, VIN = 5V (LTC4120), 115 mV VIN-VBATSNS Rising, VIN = 5V (LTC4120-4.2) UVINTVCC INTVCC Undervoltage Lockout INTVCC Rising, VIN = INTVCC + 100mV, VBAT = NC l 4.00 4.15 4.26 V Hysteresis INTVCC Falling (Note 4) 220 mV
