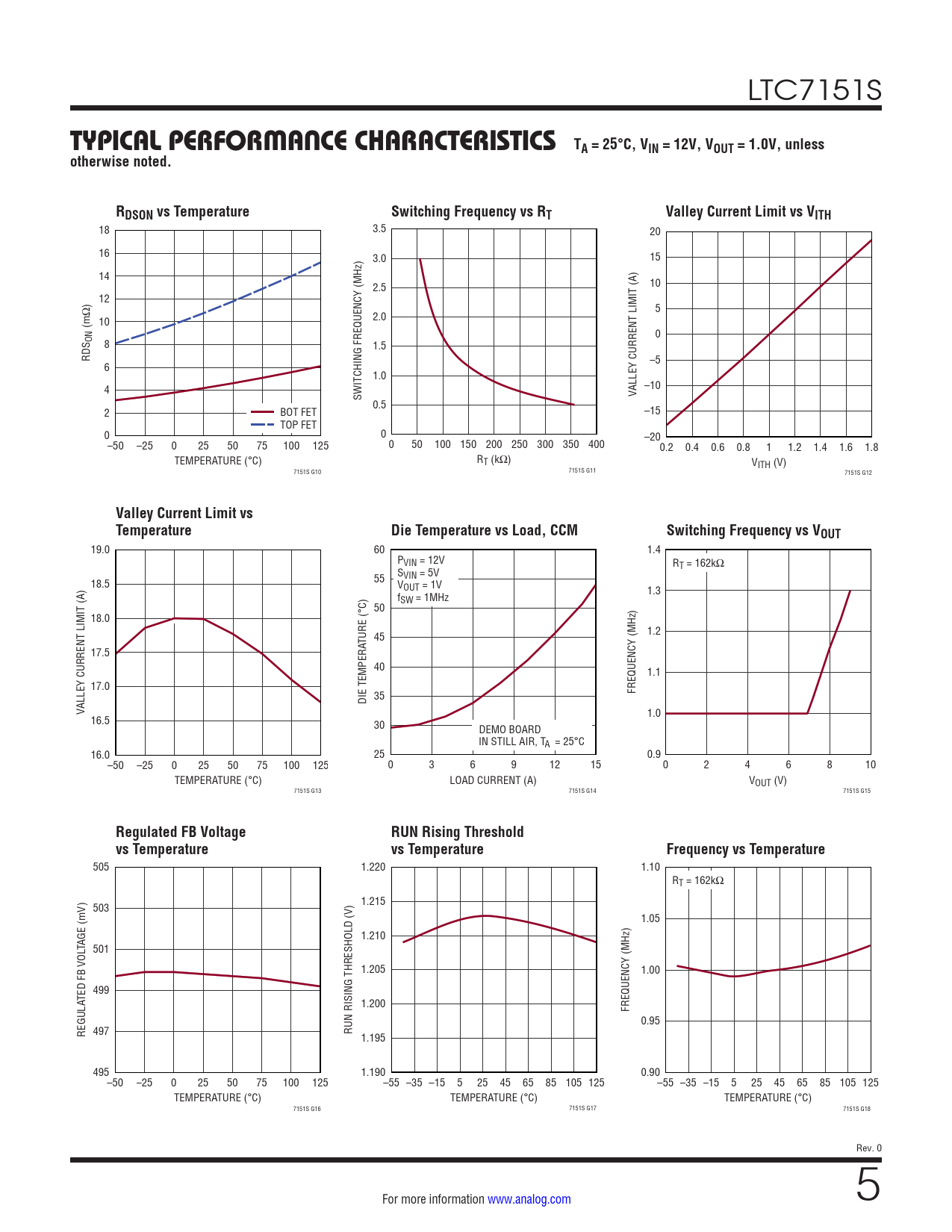

TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, VIN = 12V, VOUT = 1.0V, unless. otherwise noted. RDSON vs Temperature
