Datasheet TK65S04N1L (Toshiba) - 7
| Manufacturer | Toshiba |
| Description | Power MOSFET (N-ch single 30V |
| Pages / Page | 10 / 7 — TK65S04N1L. Fig. 8.12. rth/Rth(ch-c). -. tw. (Guaranteed. Maximum). Fig. … |
| File Format / Size | PDF / 344 Kb |
| Document Language | English |

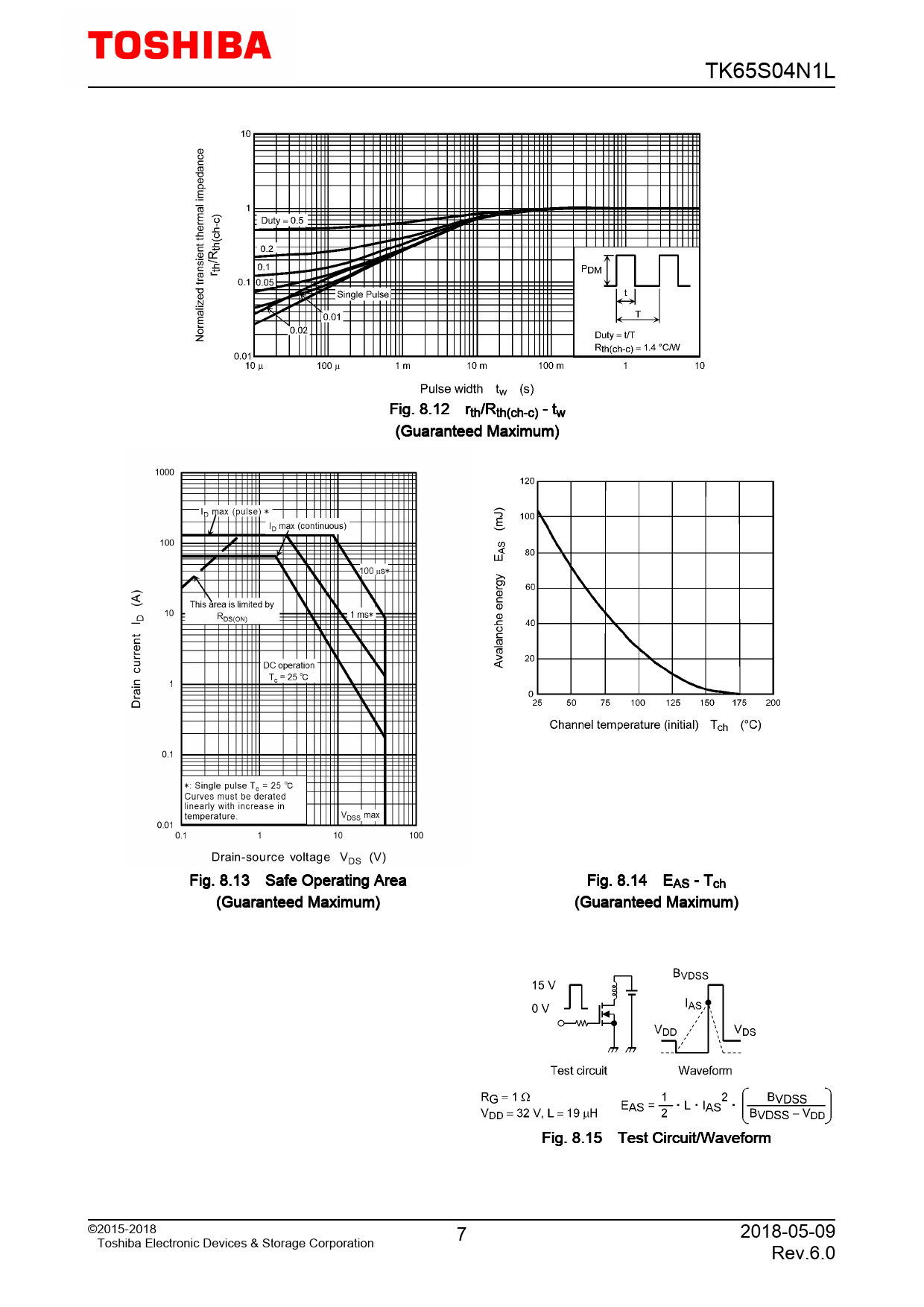

TK65S04N1L. Fig. 8.12. rth/Rth(ch-c). -. tw. (Guaranteed. Maximum). Fig. 8.13. Safe. Operating. Area. Fig. 8.14. EAS. -. Tch. (Guaranteed. Maximum)
Model Line for this Datasheet
Text Version of Document
TK65S04N1L Fig. 8.12 rth/Rth(ch-c) - tw (Guaranteed Maximum) Fig. 8.13 Safe Operating Area Fig. 8.14 EAS - Tch (Guaranteed Maximum) (Guaranteed Maximum) Fig. 8.15 Test Circuit/Waveform ©2015-2018 7 2018-05-09 Toshiba Electronic Devices & Storage Corporation Rev.6.0
