Datasheet LTV-814, LTV-824, LTV-844 (Lite-On) - 2
| Manufacturer | Lite-On |
| Description | Photocoupler LTV-8X4 series DIP16 Package |
| Pages / Page | 17 / 2 — Photocoupler. LTV-8X4 series. 1. DESCRIPTION. 1.1 Features. 1.2 … |
| File Format / Size | PDF / 851 Kb |
| Document Language | English |
Photocoupler. LTV-8X4 series. 1. DESCRIPTION. 1.1 Features. 1.2 Applications
Model Line for this Datasheet
Text Version of Document

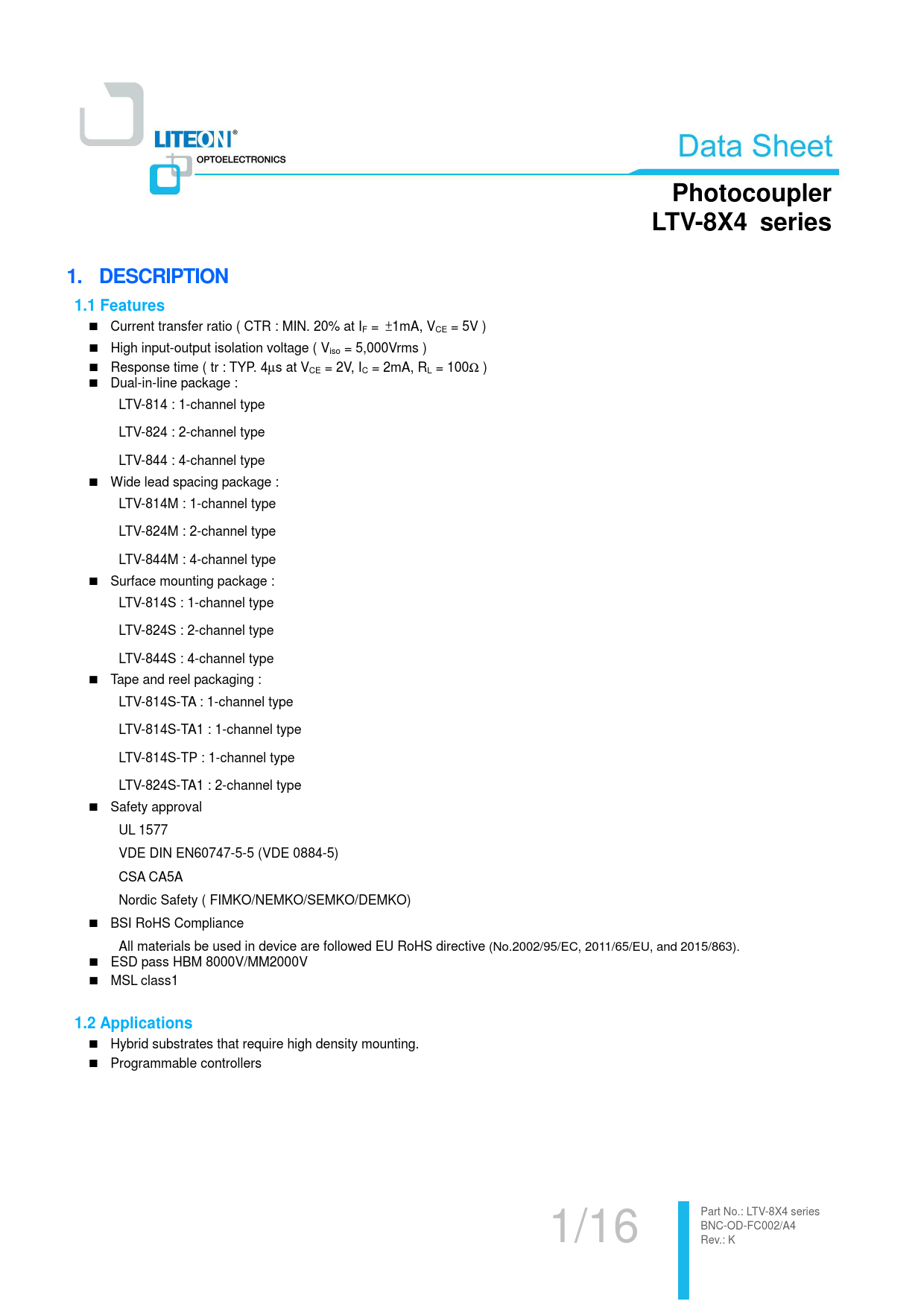

Photocoupler LTV-8X4 series 1. DESCRIPTION 1.1 Features
Current transfer ratio ( CTR : MIN. 20% at IF = ±1mA, VCE = 5V ) High input-output isolation voltage ( Viso = 5,000Vrms ) Response time ( tr : TYP. 4µs at VCE = 2V, IC = 2mA, RL = 100Ω ) Dual-in-line package : LTV-814 : 1-channel type LTV-824 : 2-channel type LTV-844 : 4-channel type Wide lead spacing package : LTV-814M : 1-channel type LTV-824M : 2-channel type LTV-844M : 4-channel type Surface mounting package : LTV-814S : 1-channel type LTV-824S : 2-channel type LTV-844S : 4-channel type Tape and reel packaging : LTV-814S-TA : 1-channel type LTV-814S-TA1 : 1-channel type LTV-814S-TP : 1-channel type LTV-824S-TA1 : 2-channel type Safety approval UL 1577 VDE DIN EN60747-5-5 (VDE 0884-5) CSA CA5A Nordic Safety ( FIMKO/NEMKO/SEMKO/DEMKO) BSI RoHS Compliance All materials be used in device are followed EU RoHS directive (No.2002/95/EC, 2011/65/EU, and 2015/863). ESD pass HBM 8000V/MM2000V MSL class1
1.2 Applications
Hybrid substrates that require high density mounting. Programmable controllers 1/16 P art N o.: L TV-8 X4 s eries BNC-OD-FC002/A4 Rev.: K
Current transfer ratio ( CTR : MIN. 20% at IF = ±1mA, VCE = 5V ) High input-output isolation voltage ( Viso = 5,000Vrms ) Response time ( tr : TYP. 4µs at VCE = 2V, IC = 2mA, RL = 100Ω ) Dual-in-line package : LTV-814 : 1-channel type LTV-824 : 2-channel type LTV-844 : 4-channel type Wide lead spacing package : LTV-814M : 1-channel type LTV-824M : 2-channel type LTV-844M : 4-channel type Surface mounting package : LTV-814S : 1-channel type LTV-824S : 2-channel type LTV-844S : 4-channel type Tape and reel packaging : LTV-814S-TA : 1-channel type LTV-814S-TA1 : 1-channel type LTV-814S-TP : 1-channel type LTV-824S-TA1 : 2-channel type Safety approval UL 1577 VDE DIN EN60747-5-5 (VDE 0884-5) CSA CA5A Nordic Safety ( FIMKO/NEMKO/SEMKO/DEMKO) BSI RoHS Compliance All materials be used in device are followed EU RoHS directive (No.2002/95/EC, 2011/65/EU, and 2015/863). ESD pass HBM 8000V/MM2000V MSL class1
1.2 Applications
Hybrid substrates that require high density mounting. Programmable controllers 1/16 P art N o.: L TV-8 X4 s eries BNC-OD-FC002/A4 Rev.: K
